基于电导增量法的全局最大功率点跟踪算法

doi:10.11985/2023.02.025

摘要/Abstract

摘要：

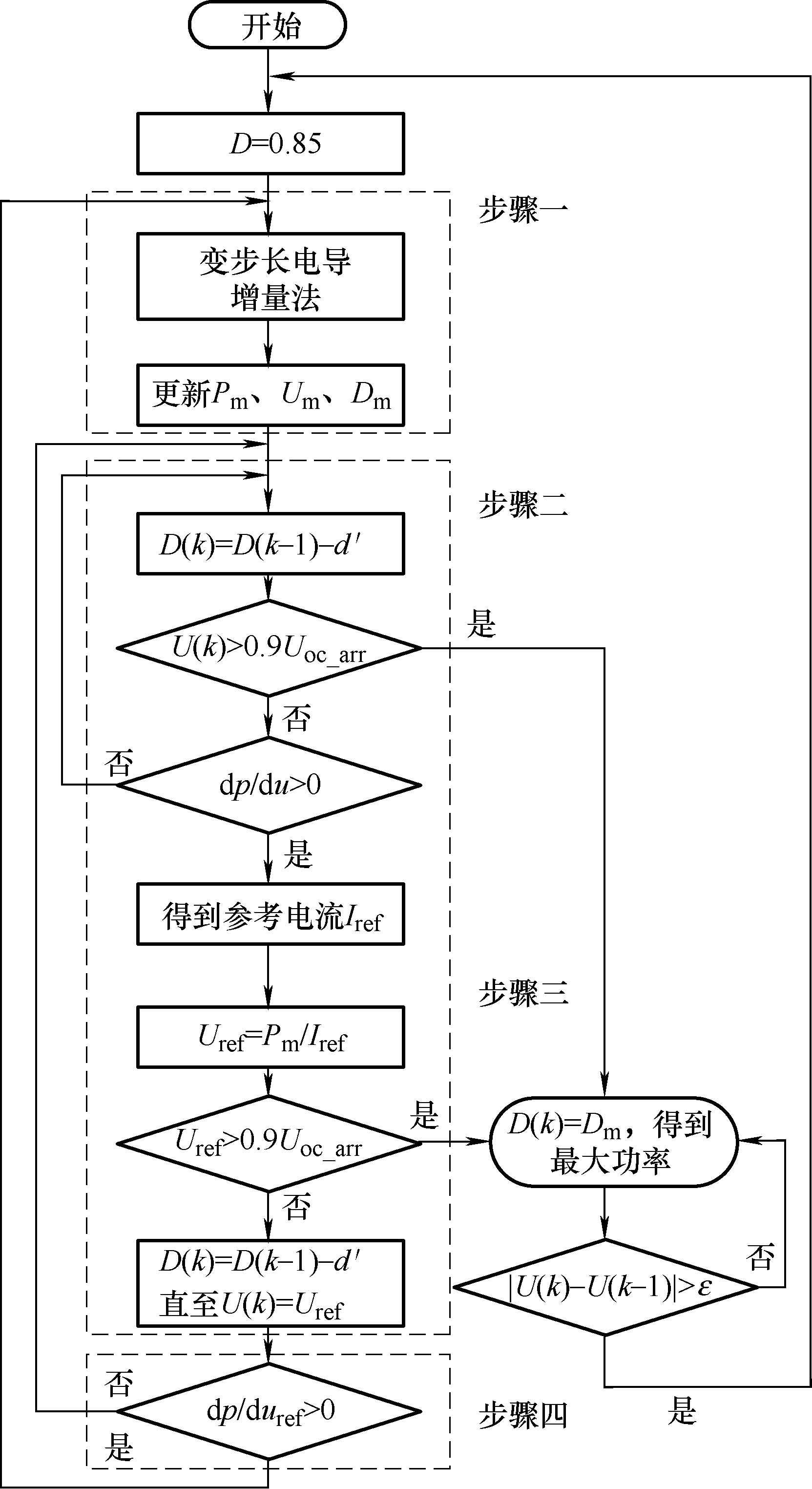

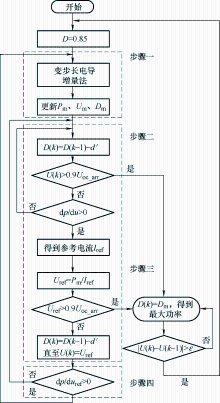

在部分阴影条件(Partially shaded condition, PSC)下，光伏阵列的功率曲线有多个峰值。传统的跟踪方法只在均匀光照条件(Uniform irradiance condition，UIC)下有效，在PSC情况下则无法追踪到全局峰值(Global peak，GP)。为了在均匀光照条件下和部分阴影条件下均能快速有效地跟踪到GP，提出一种基于变步长电导增量(Incremental conductance，INC)法的GP跟踪算法。该算法主体由四个步骤构成，通过循环执行这四个步骤来寻找全局峰值点。为了提高跟踪精度，所提算法在局部峰值点附近使用一种变步长的INC算法以减小扰动步长。为了减少跟踪时间，算法采用了两种扰动步长，特别是在步骤二和步骤三中通过采用较大的扰动步长，加快了跟踪速度。最后，通过在Matlab构建模型，验证了所提算法的效果。仿真结果表明，该方法比传统的INC全局方法速度更快、精度更大、效率更高。

关键词: 光伏阵列, 电导增量法, 局部阴影, 全局峰值

Abstract:

Under the partially shaded condition(PSC), the power curve of the photovoltaic array has multiple peaks. The traditional tracking methods are effective under uniform illumination condition(UIC), but cannot track the global peak(GP) under PSC. In order to track GP quickly and effectively under uniform illumination condition and partially shaded condition, a GP tracking algorithm based on variable step incremental conductance(INC) method is proposed. The main body of the algorithm consists of four steps, which are executed circularly to find the global peak point. In order to improve the tracking accuracy, the algorithm uses an INC algorithm with variable step size to reduce the disturbance step size near the local peak point. In order to reduce the tracking time, the algorithm uses two kinds of perturbation step. Especially in step 2 and step 3, the tracking speed is accelerated by adopting a larger disturbance step size. Finally, the effectiveness of the proposed algorithm is verified by building a model in Matlab. Simulation results show that the proposed method is faster, more accurate and more efficient than the traditional INC global method.

Key words: PV array, conductance increment method, local shadow, global peak

中图分类号:

TM615

刘祚松, 王红艳, 周蒙恩, 钱阳. 基于电导增量法的全局最大功率点跟踪算法[J]. 电气工程学报, 2023, 18(2): 245-253.

LIU Zuosong, WANG Hongyan, ZHOU Mengen, QIAN Yang. Global Maximum Power Point Tracking Algorithm Based on Conductance Increment Method[J]. Journal of Electrical Engineering, 2023, 18(2): 245-253.

图/表 17

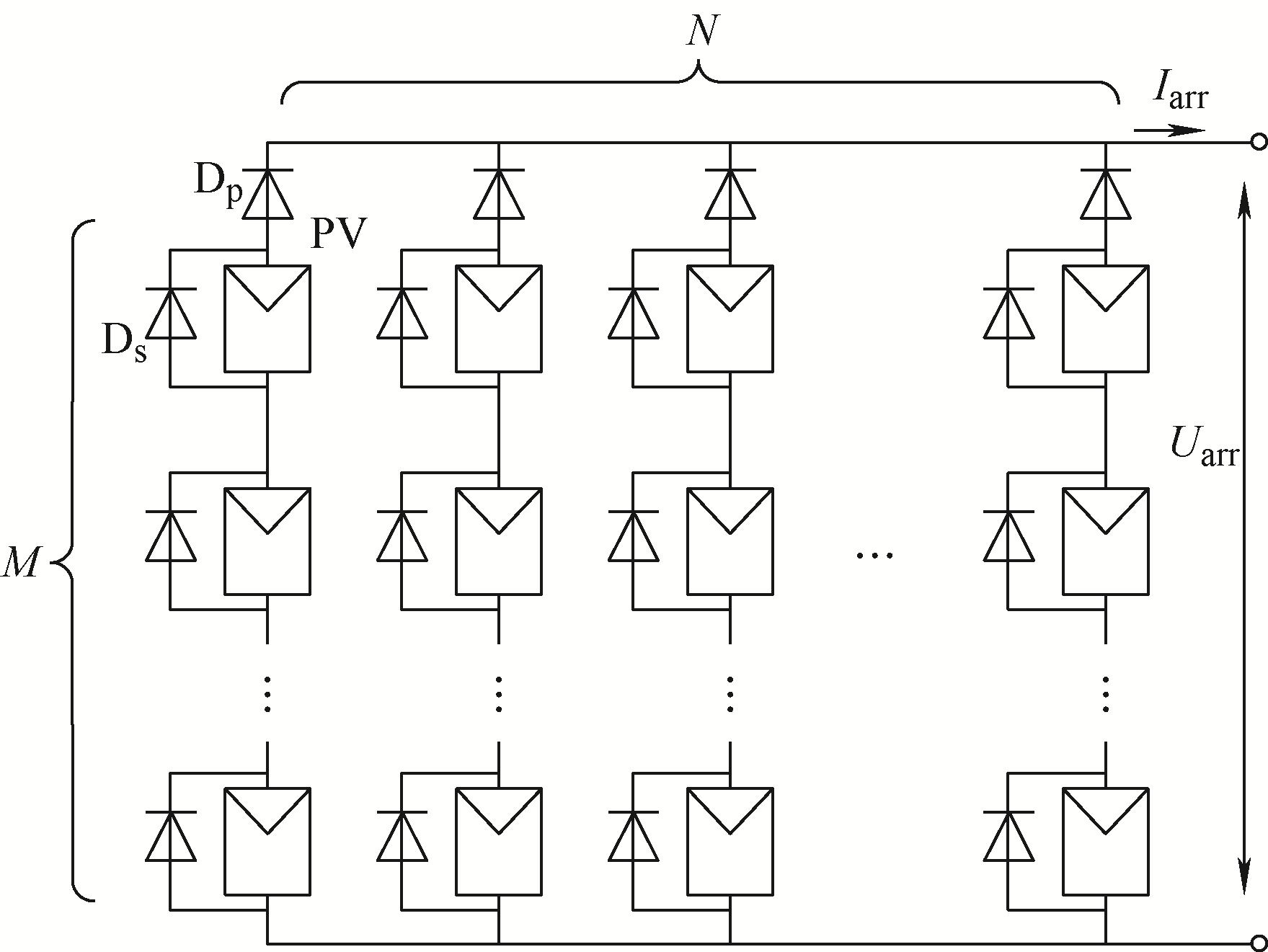

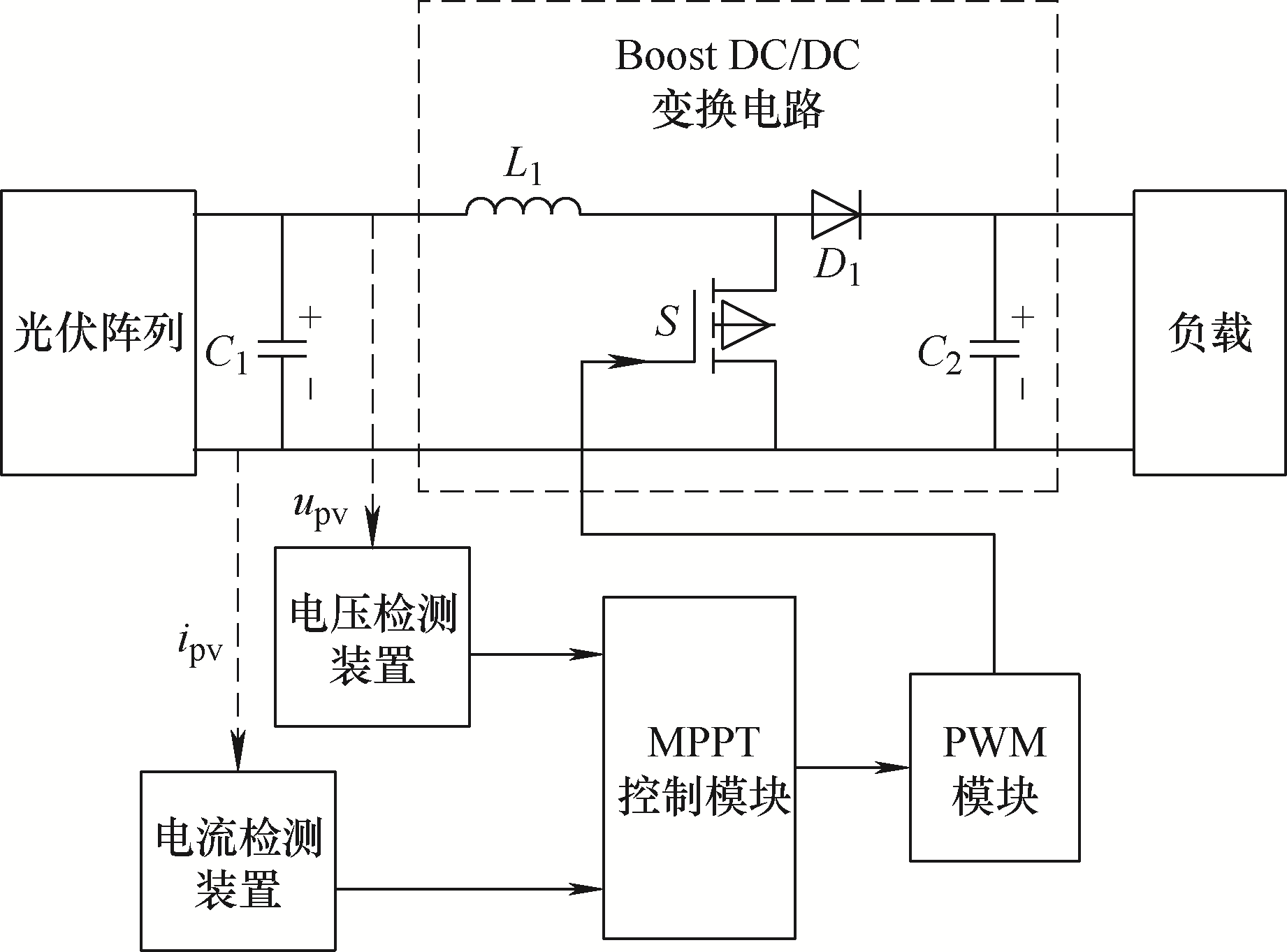

图1

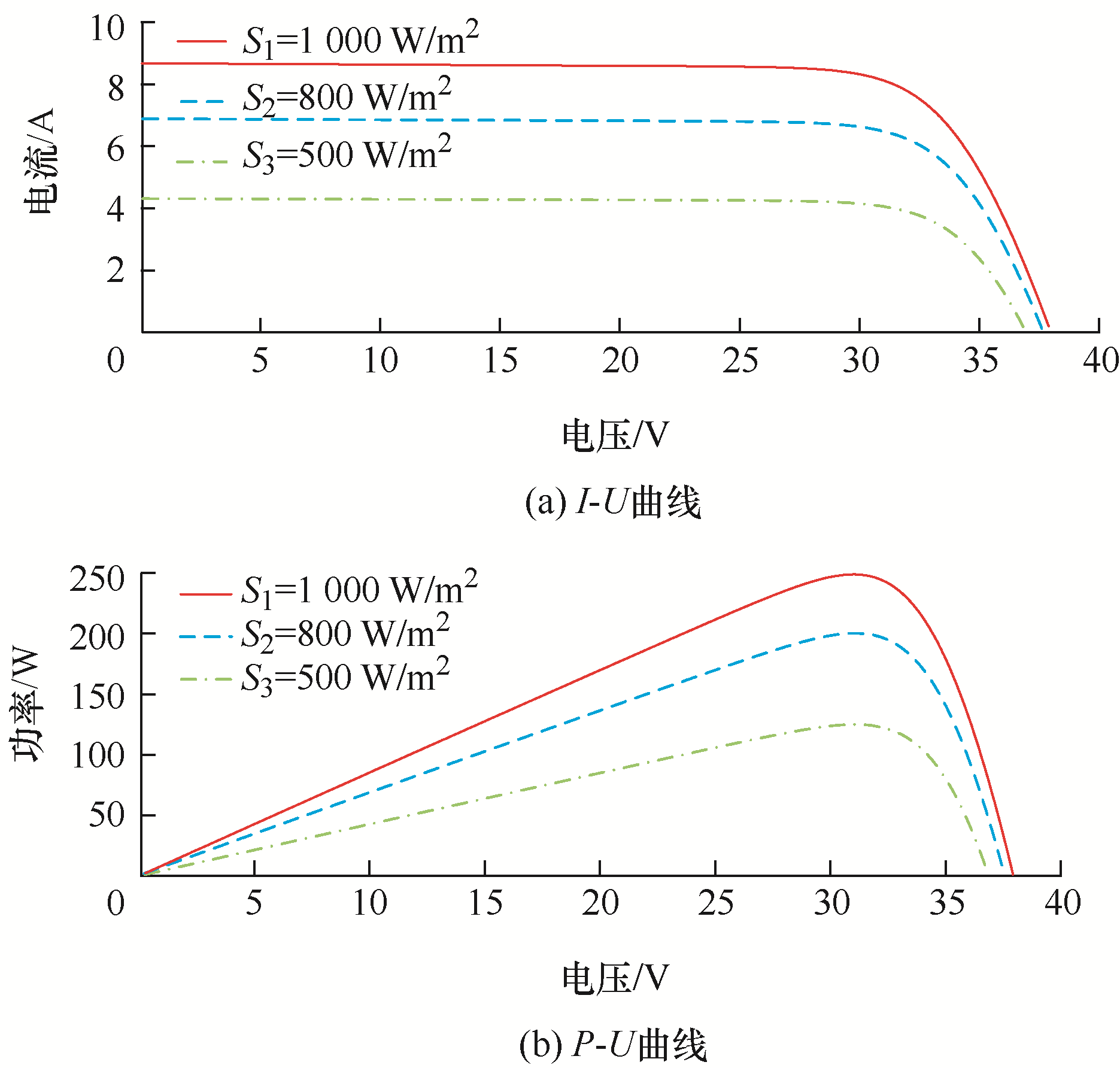

图2

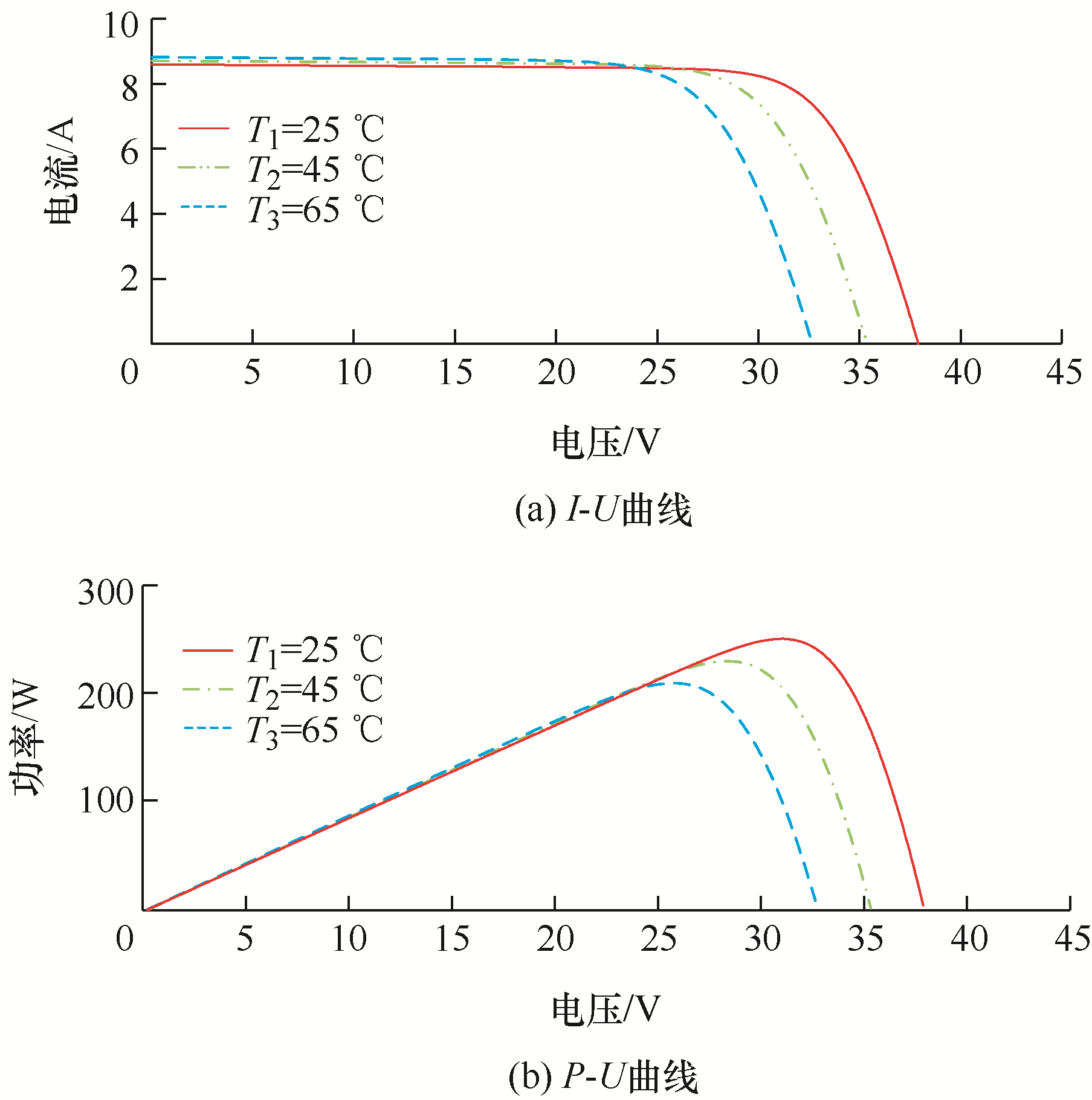

图3

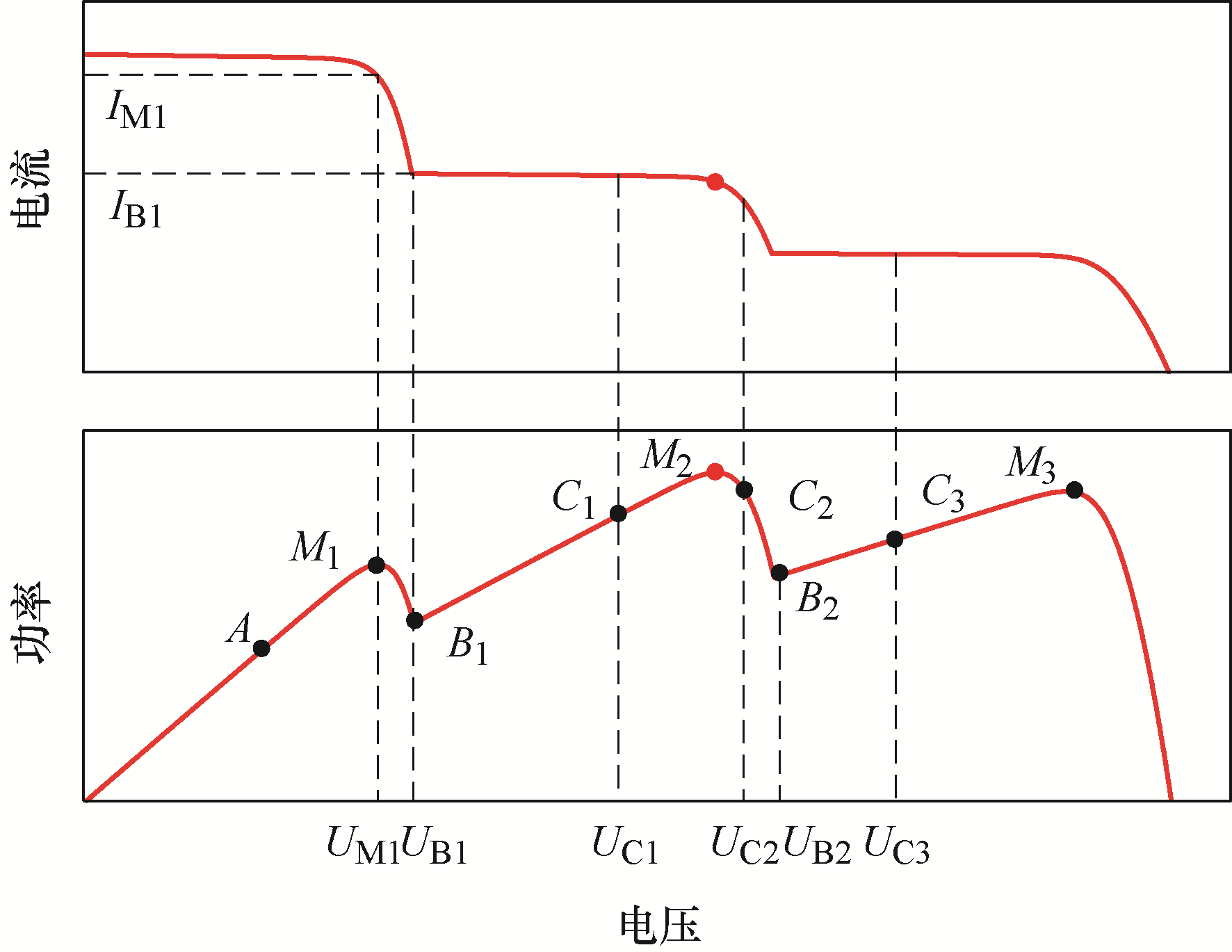

图4

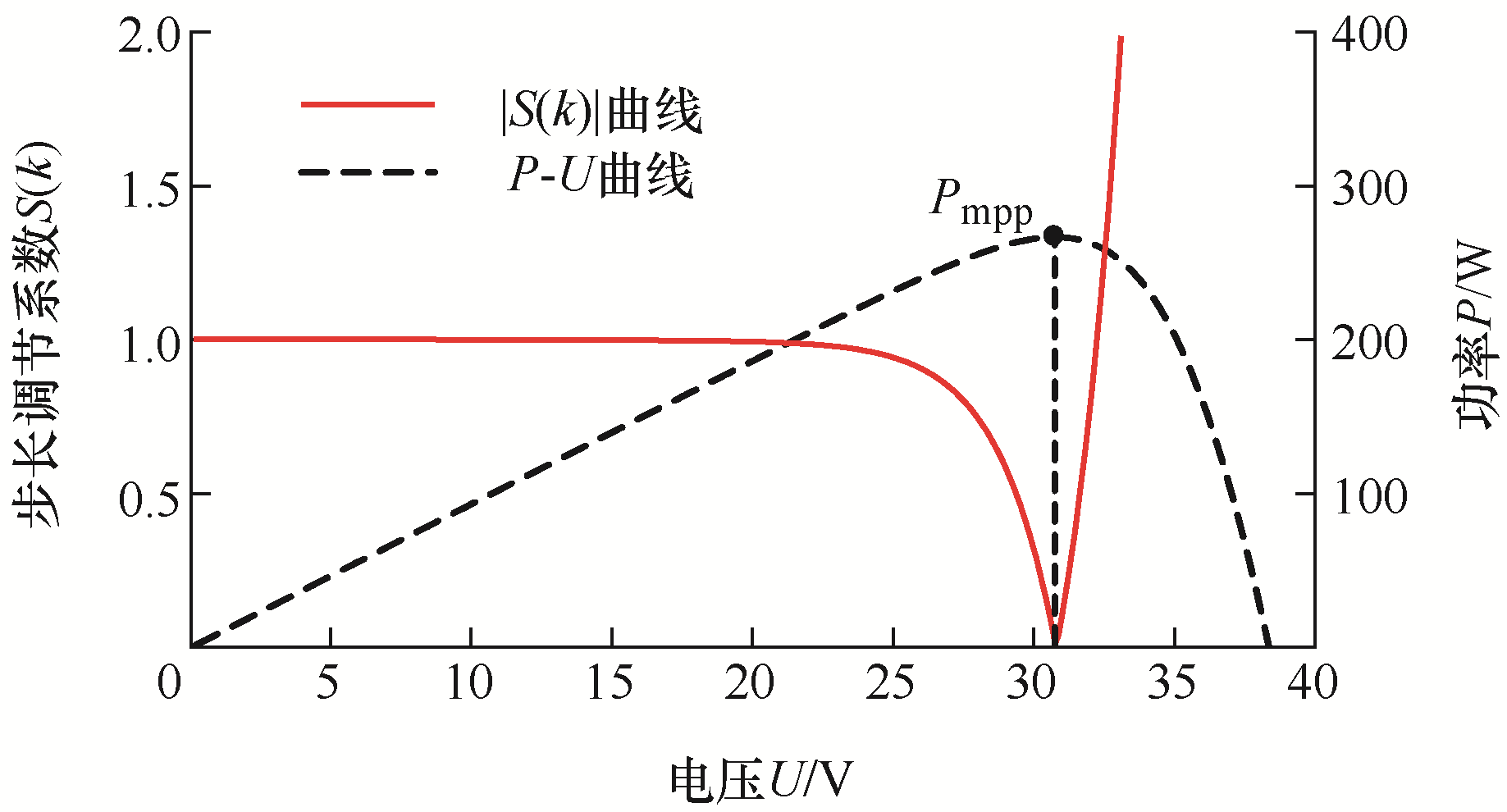

图5

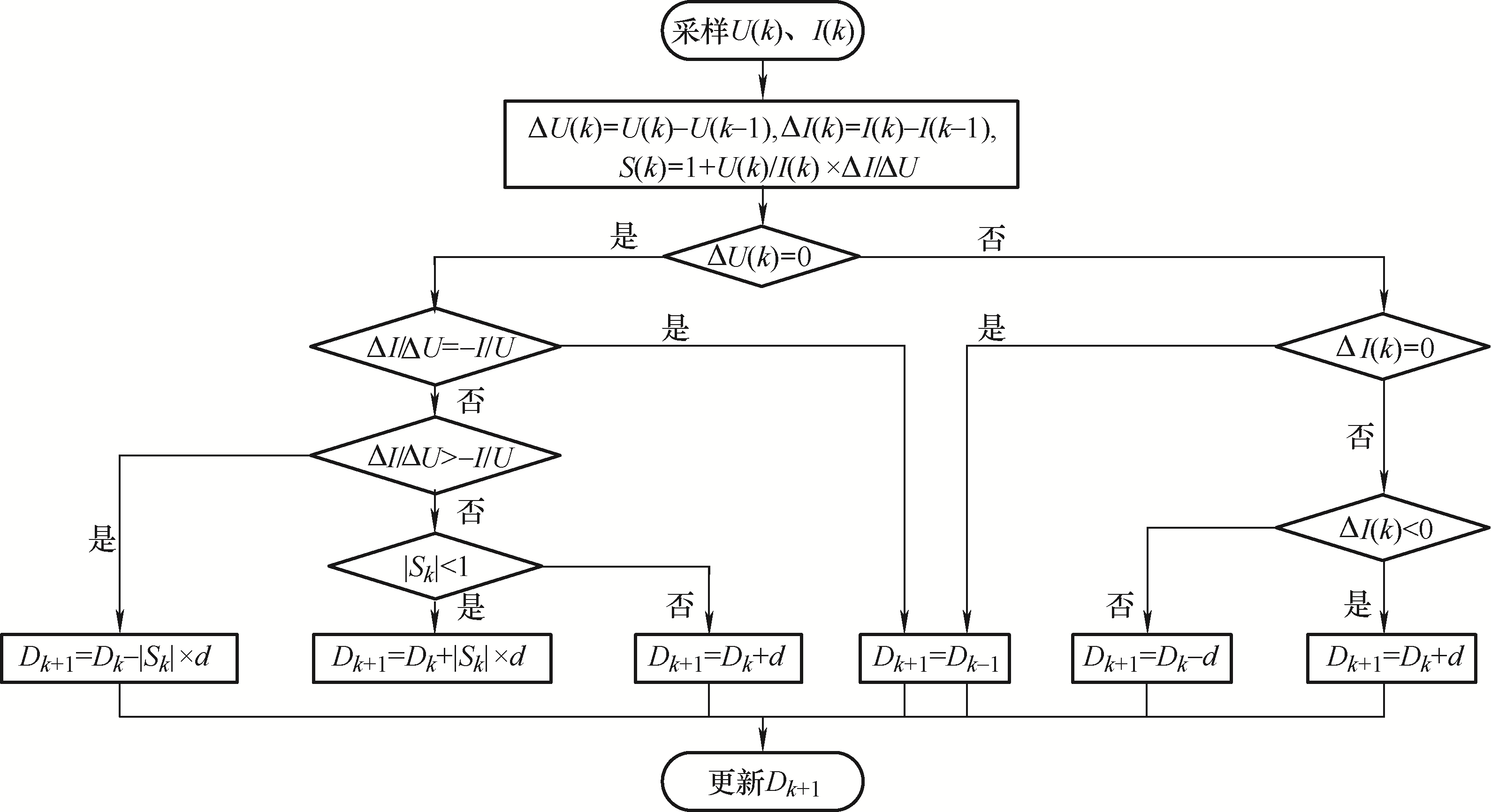

图6

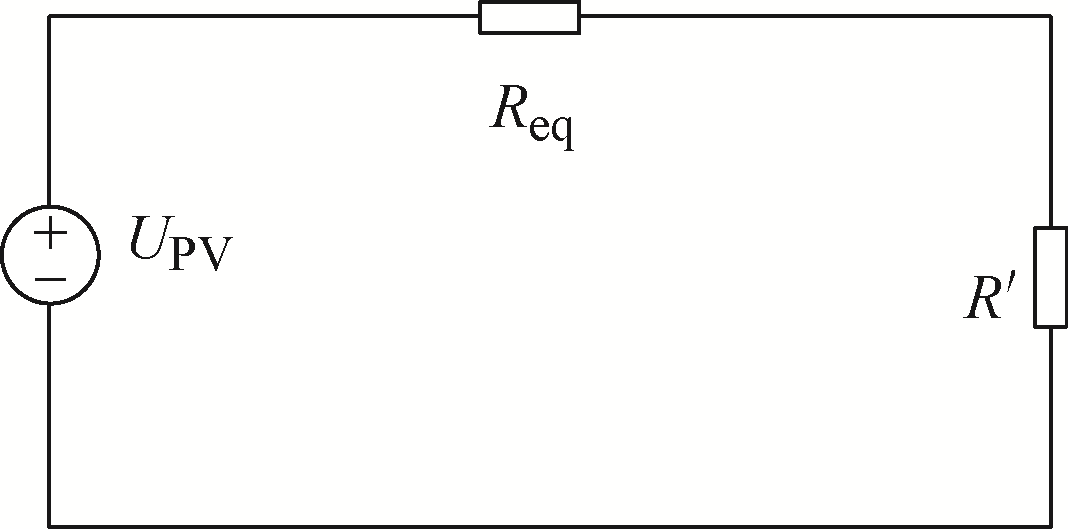

图7

图8

图9

表1

表2

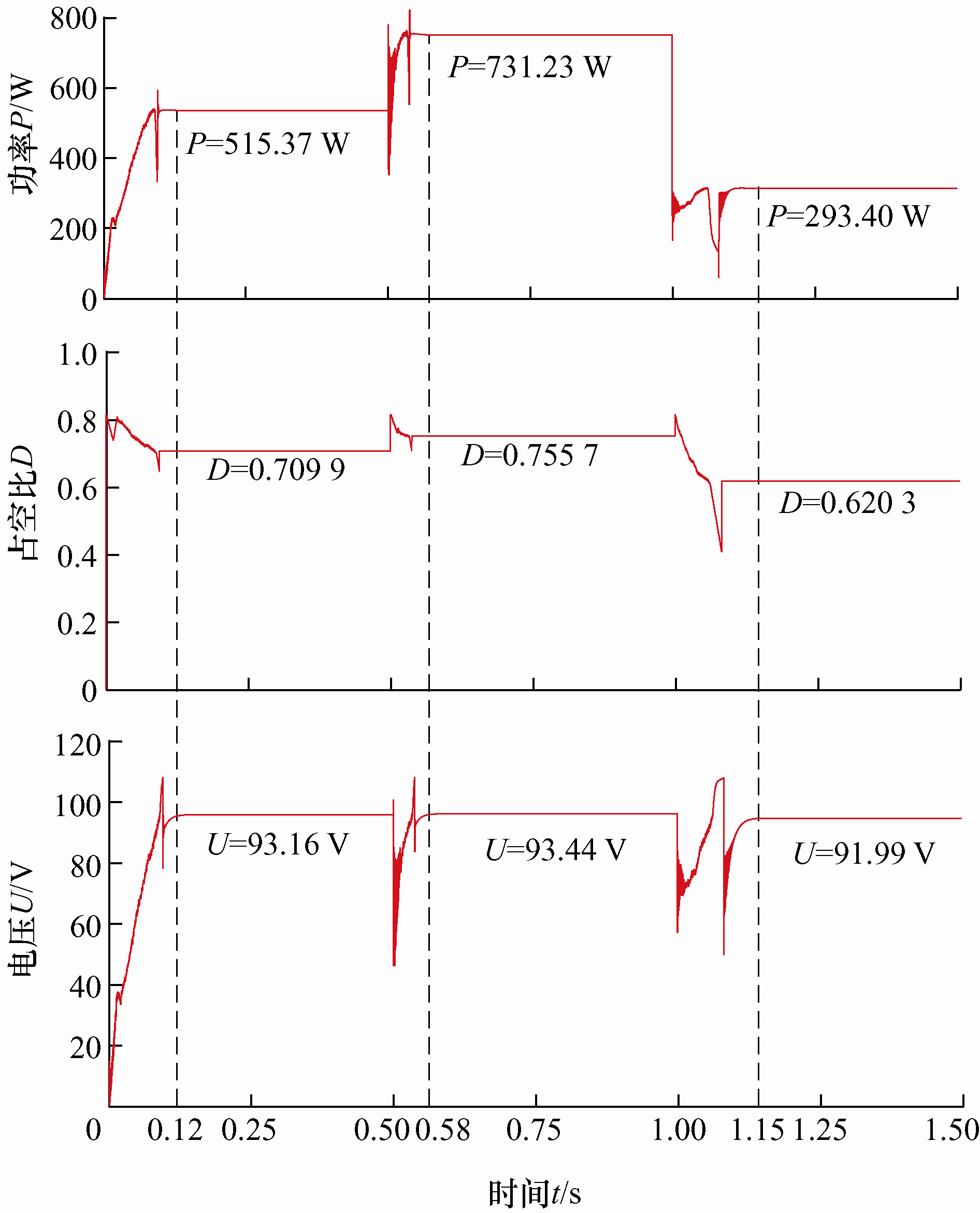

图10

表3

图11

图12

图13

表4

参考文献 21

[1]	DE BRITO M A G, GALOTTO L, SAMPAIO L P, et al. Evaluation of the main MPPT techniques for photovoltaic applications[J]. IEEE Transactions on Industrial Electronics, 2013, 60(3):1156-1167. doi: 10.1109/TIE.2012.2198036
[2]	王云平, 阮新波, 李颖. 不均匀光照光伏单元串联电路快速MPPT方法[J]. 中国电机工程学报, 2015, 35(19):4870-4878.
	WANG Yunping, RUAN Xinbo, LI Ying. A rapid tracking method of maximum power point for solar units in series under uneven solar irradiance[J]. Proceedings of the CSEE, 2015, 35(19):4870-4878.
[3]	周东宝, 陈渊睿. 基于改进型变步长电导增量法的最大功率点跟踪策略[J]. 电网技术, 2015, 39(6):1491-1498.
	ZHOU Dongbao, CHEN Yuanrui. Maximum power point tracking strategy based on modified variable step-size incremental conductance algorithm[J]. Power System Technology, 2015, 39(6):1491-1498.
[4]	杨秋霞, 王海臣, 张滢, 等. 基于改进电导增量法的光伏阵列 MPPT[J]. 电源技术, 2016, 40(1):128-131.
	YANG Qiuxia, WANG Haichen, ZHANG Ying, et al. Research of MPPT technology based on variable step length conductance increment method[J]. Chinese Journal of Power Sources, 2016, 40(1):128-131.
[5]	KUMAR N, HUSSAIN I, SINGH B, et al. Self-adaptive incremental conductance algorithm for swift and ripple-free maximum power harvesting from PV array[J]. IEEE Transactions on Industrial Informatics, 2018, 14(5):2031-2041. doi: 10.1109/TII.2017.2765083
[6]	马爱华, 李磊, 师贺. 光伏电池建模及变步长MPPT控制[J]. 电气工程学报, 2017, 12(5):58-63.
	MA Aihua, LI Lei, SHI He. Modeling of photovoltaic cells and MPPT control algorithm with variable step[J]. Journal of Electrical Engineering, 2017, 12(5):58-63.
[7]	荣德生, 刘凤. 改进型扰动观察法在光伏 MPPT 中的研究[J]. 电力系统及其自动化学报, 2017, 29(3):104-109.
	RONG Desheng, LIU Feng. Application of improved perturbation and observation method to photovoltaic MPPT[J]. Proceedings of the CSU-EPSA, 2017, 29(3):104-109.
[8]	刘宜罡, 邹应全, 张晓强, 等. 基于差分进化的光伏MPPT算法改进[J]. 太阳能学报, 2020, 41(6):264-271.
	LIU Yigang, ZOU Yingquan, ZHANG Xiaoqiang, et al. An improved photovoltaic MPPT algorithm based on differential evolution algorithm[J]. Acta Energiae Solaris Sinica, 2020, 41(6):264-271.
[9]	TEY K S, MEKHILEF S, SEYEDMAHMOUDIAN M, et al. Improved differential evolution-based MPPT algorithm using SEPIC for PV systems under partial shading conditions and load variation[J]. IEEE Transactions on Industrial Informatics, 2018, 14(10):4322-4333. doi: 10.1109/TII.9424
[10]	ELOBAID L M, ABDELSALAM A K, ZAKZOUK E E. Artificial neural network-based photovoltaic maximum power point tracking techniques:A survey[J]. IET Renewable Power Generation, 2015, 9(8):1043-1063. doi: 10.1049/rpg2.v9.8
[11]	吴忠强, 于丹琦, 康晓华. 改进鸡群算法在光伏系统MPPT中的应用[J]. 太阳能学报, 2019, 40(6):1589-1598.
	WU Zhongqiang, YU Danqi, KANG Xiaohua. Application of improved chicken swarm optimization for MPPT in photovoltaic system[J]. Acta Energiae Solaris Sinica, 2019, 40(6):1589-1598.
[12]	杨东海, 刘洋, 王毅, 等. 基于二进制蚁群模糊神经网络的光伏系统MPPT控制算法研究[J]. 电气工程学报, 2017, 12(6):41-46.
	YANG Donghai, LIU Yang, WANG Yi, et al. Research on MPPT control algorithm of photovoltaic system by binary colony algorithm and fuzzy neural network[J]. Journal of Electrical Engineering, 2017, 12(6):41-46.
[13]	代莎, 董秀成, 夏焰坤, 等. 光伏阵列多峰最大功率点优化跟踪算法[J]. 电力系统及其自动化学报, 2018, 30(12):48-52.
	DAI Sha, DONG Xiucheng, XIA Yankun, et al. Optimization algorithm of multi-peak maximum power point tracking for PV array[J]. Proceedings of the CSU-EPSA, 2018, 30(12):48-52.
[14]	卫东, 常亚文, 臧健康, 等. 基于直线方程求解与波峰区间划分的串联光伏组件多峰MPPT方法[J]. 太阳能学报, 2020, 41(1):125-131.
	WEI Dong, CHANG Yawen, ZANG Jiankang, et al. Multi modal MPPT algorithm for series PV modules based on linear equation and peak partial PV module[J]. Acta Energiae Solaris Sinica, 2020, 41(1):125-131.
[15]	XU Shungang, GAO Yuan, ZHOU Guohua, et al. A global maximum power point tracking algorithm for photovoltaic systems under partially shaded conditions using modified maximum power trapezium method[J]. IEEE Transactions on Industrial Electronics, 2021, 68(1):370-380. doi: 10.1109/TIE.41
[16]	RAMYAR A, IMAN-EINI H, FARHANGI S. Global maximum power point tracking method for photovoltaic arrays under partial shading conditions[J]. IEEE Transactions on Industrial Electronics, 2017, 64(4):2855-2864. doi: 10.1109/TIE.2016.2632679
[17]	ZHAO Jian, ZHOU Xuesong, GAO Zhiqiang, et al. A novel global maximum power point tracking strategy (GMPPT) based on optimal current control for photovoltaic systems adaptive to variable environmental and partial shading conditions[J]. Solar Energy, 2017, 1114:767-779.
[18]	徐仪圆, 许祺峰. 适用于商业航天的全局MPPT优化算法[J]. 西北工业大学学报, 2020, 38(增刊):133-139.
	XU Yiyuan, XU Qifeng. A global MPPT optimization algorithm for commercial aerospace[J]. Journal of Northwestern Polytechnical University, 2020, 38(Suppl.):133-139.
[19]	吕盛华, 王磊, 任春光, 等. 复杂光照条件下串联光伏阵列特性研究及最大功率跟踪[J]. 太阳能学报, 2017, 38(9):2329-2336.
	LÜ Shenghua, WANG Lei, REN Chunguang, et al. Study on characteristics of series photovoltaic array and maximum power tracking under complex illumination[J]. Acta Energiae Solaris Sinica, 2017, 38(9):2329-2336.
[20]	BASOGLU M E, CAKIR B. A novel voltage-current characteristic based global maximum power point tracking algorithm in photovoltaic systems[J]. Energy, 2016, 112:153-163. doi: 10.1016/j.energy.2016.05.121
[21]	苏建徽, 余世杰, 赵为, 等. 硅太阳电池工程用数学模型[J]. 太阳能学报, 2001, 22(4):409-412.
	SU Jianhui, YU Shijie, ZHAO Wei, et al. Investigation on engineering analytical model of silicon solar cells[J]. Acta Energiae Solaris Sinica, 2001, 22(4):409-412.

参数	数值
组件开路电压U_oc/V	37.3
组件短路电流I_sc/A	8.62
组件MPP点电压U_m/V	30.5
组件MPP点电流I_m/A	8.03
组件MPP点功率P_m/W	244.915

不同光照情况	光伏电池1	光伏电池2	光伏电池3
情况a	700	700	700
情况b	1 000	1 000	1 000
情况c	400	400	400
情况d	1 000	300	280
情况e	1 000	700	400
情况f	1 000	700	500

不同光照情况	所提算法	文献[3]
情况a	0.12	0.08
情况b	0.08	0.06
情况c	0.15	0.12

不同光照情况	算法	P_ideal/W	P_real/W	η(%)

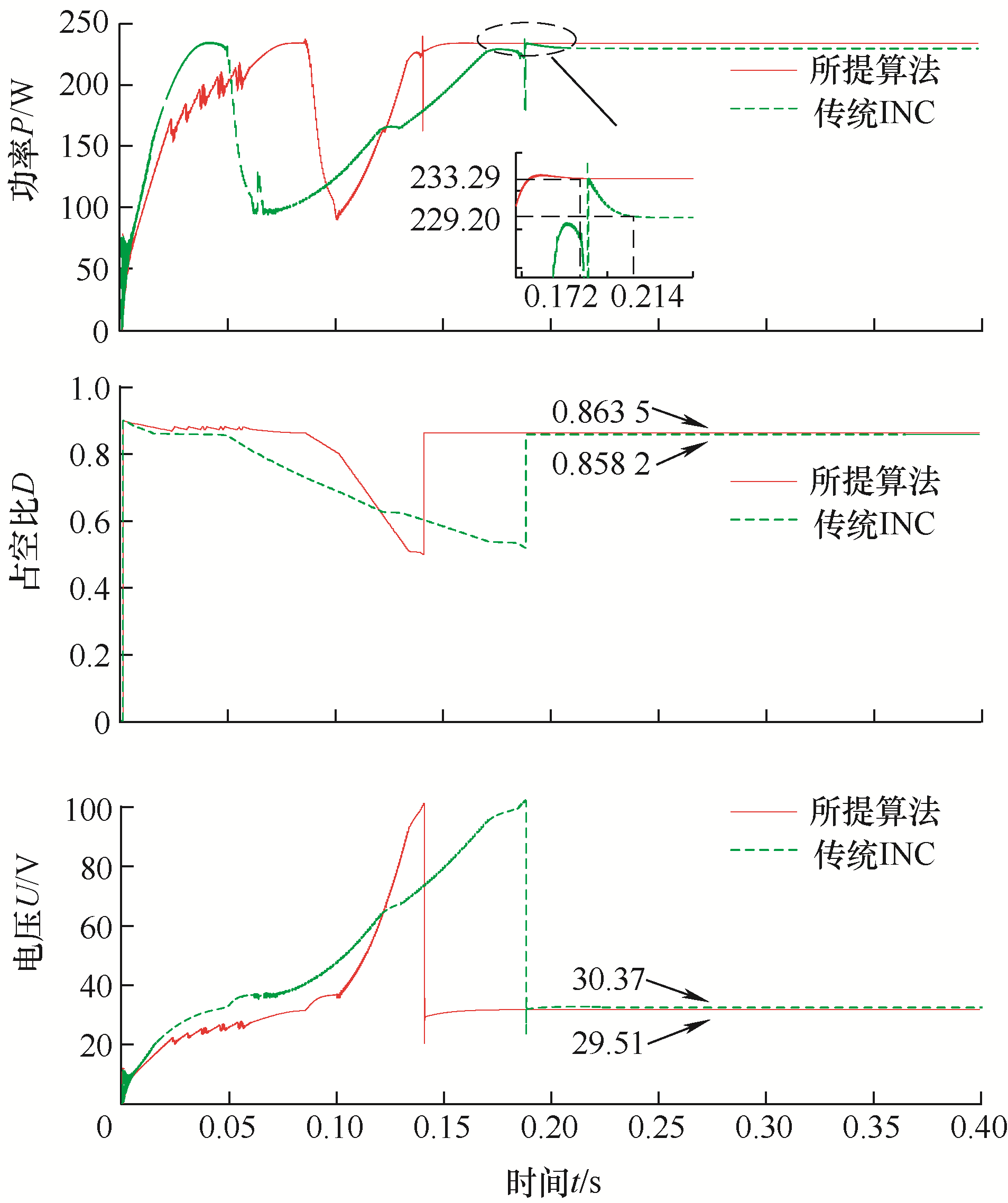

情况d	所提算法	233.59	233.29	99.87
情况d	传统INC	233.59	229.20	98.12

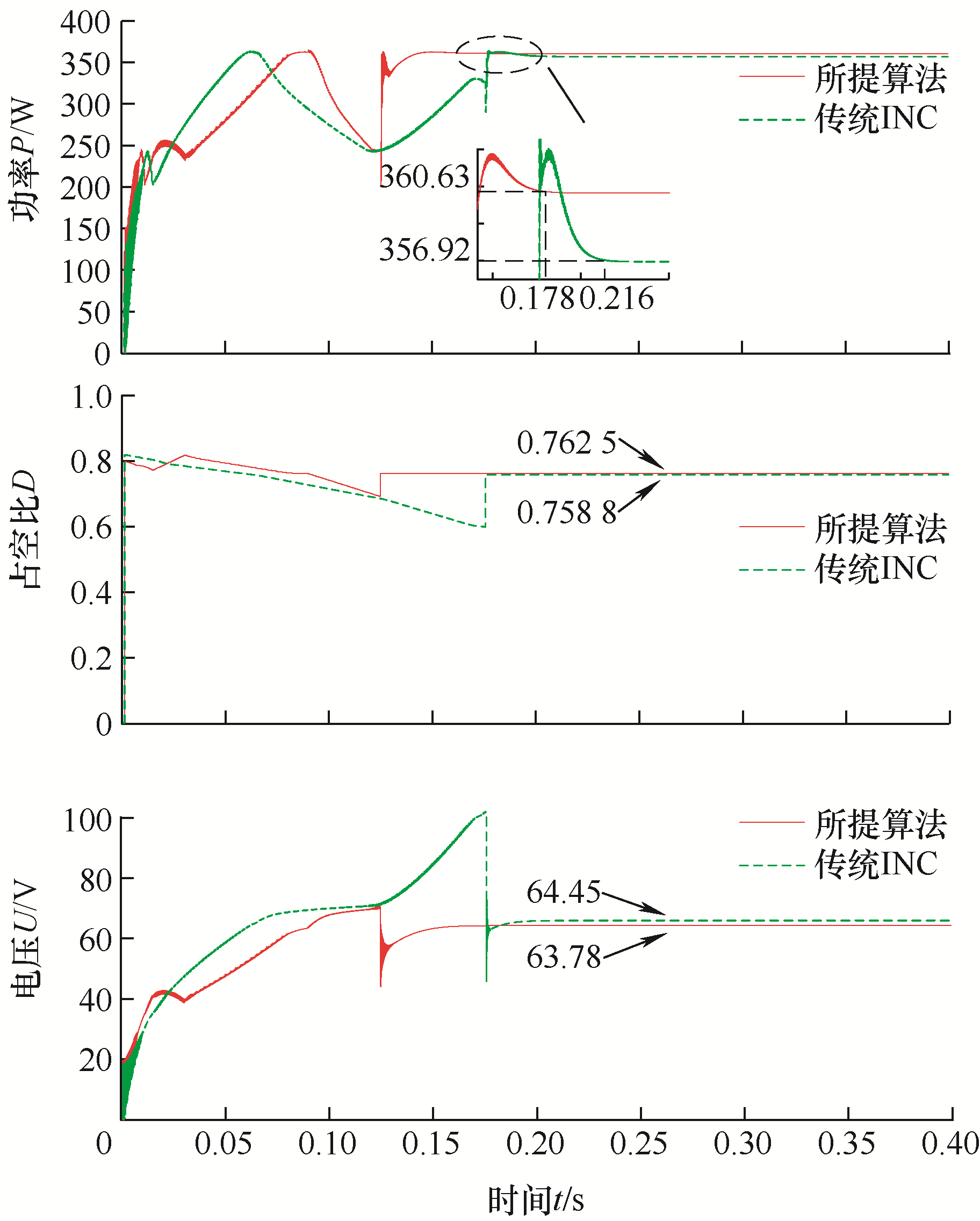

情况e	所提算法	362.44	360.63	99.50
情况e	传统INC	362.44	356.92	98.47

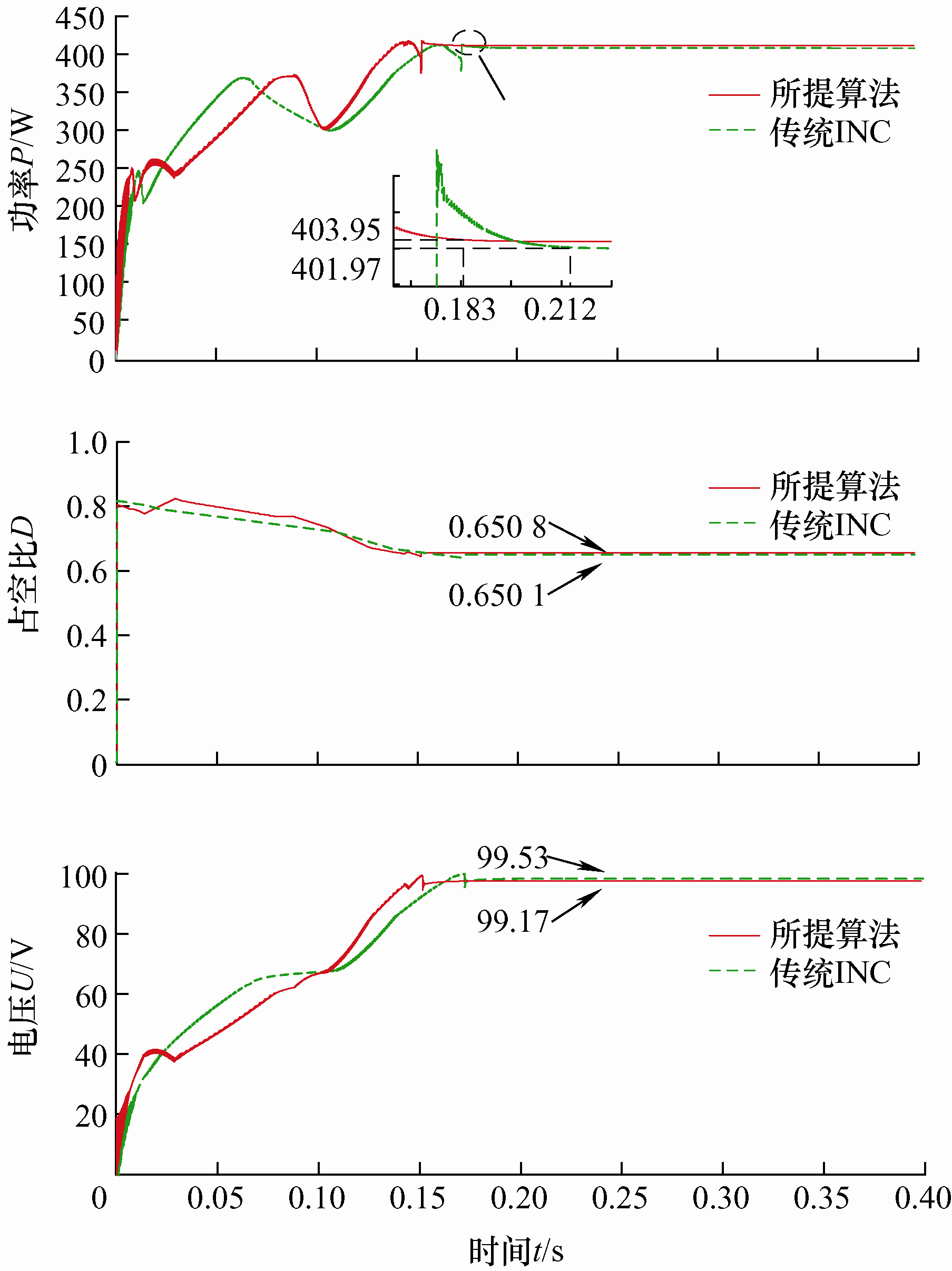

情况f	所提算法	406.73	403.95	99.32
情况f	传统INC	406.73	401.91	98.81
