基于混合牵引供电系统的短路稳态计算及保护分析*

doi:10.11985/2022.02.014

摘要/Abstract

摘要：

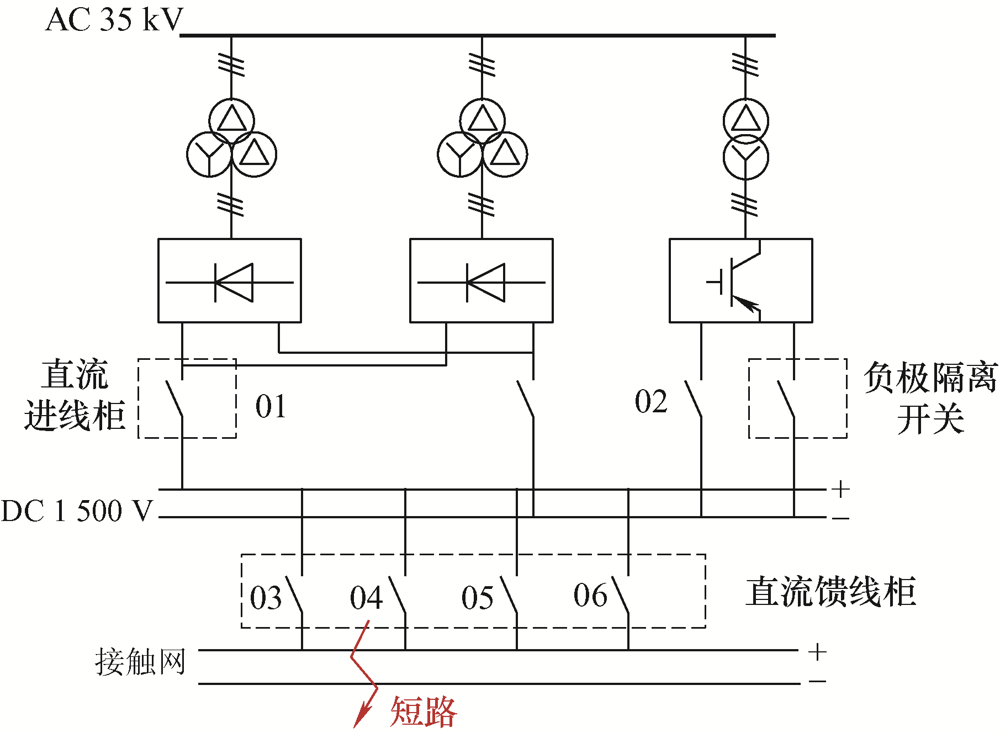

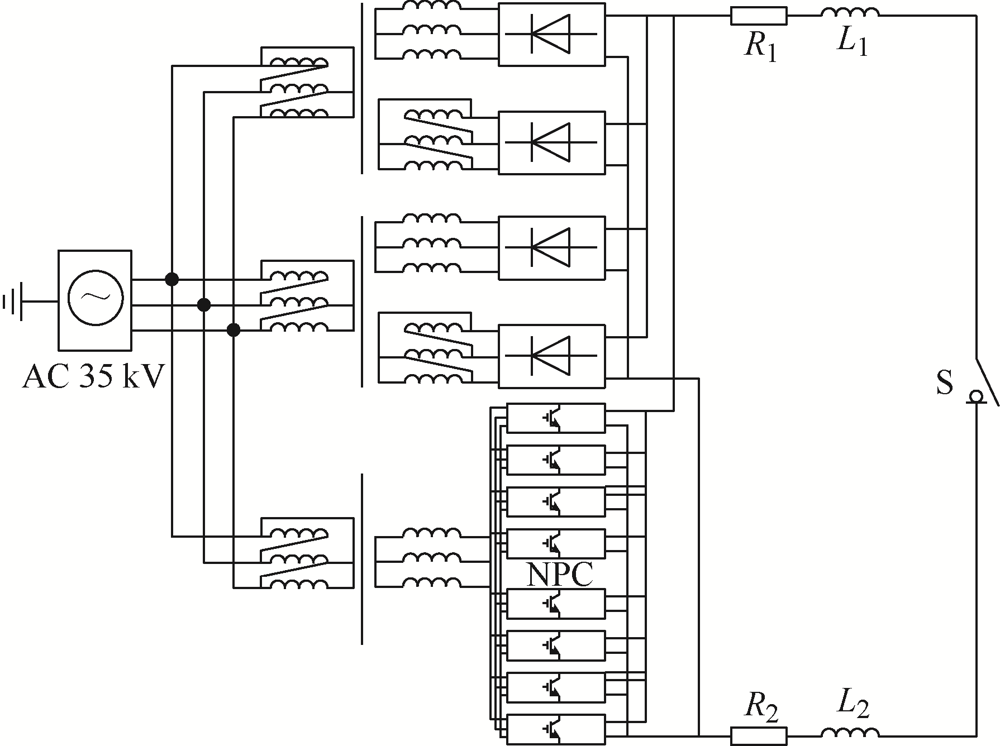

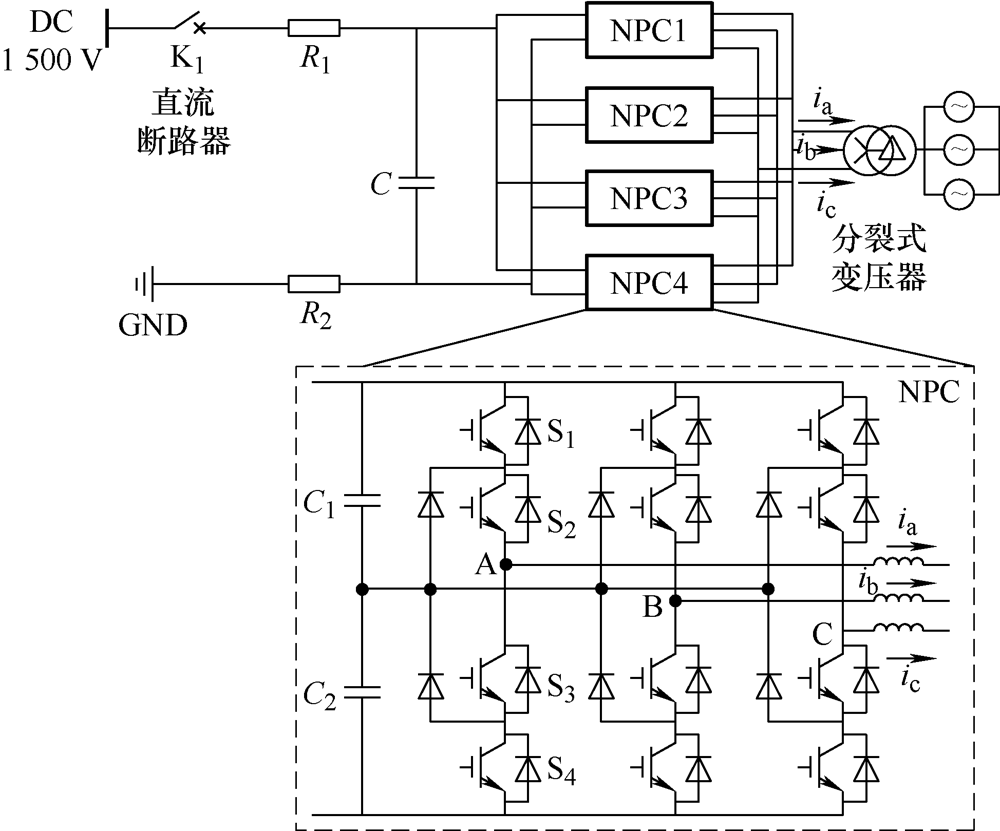

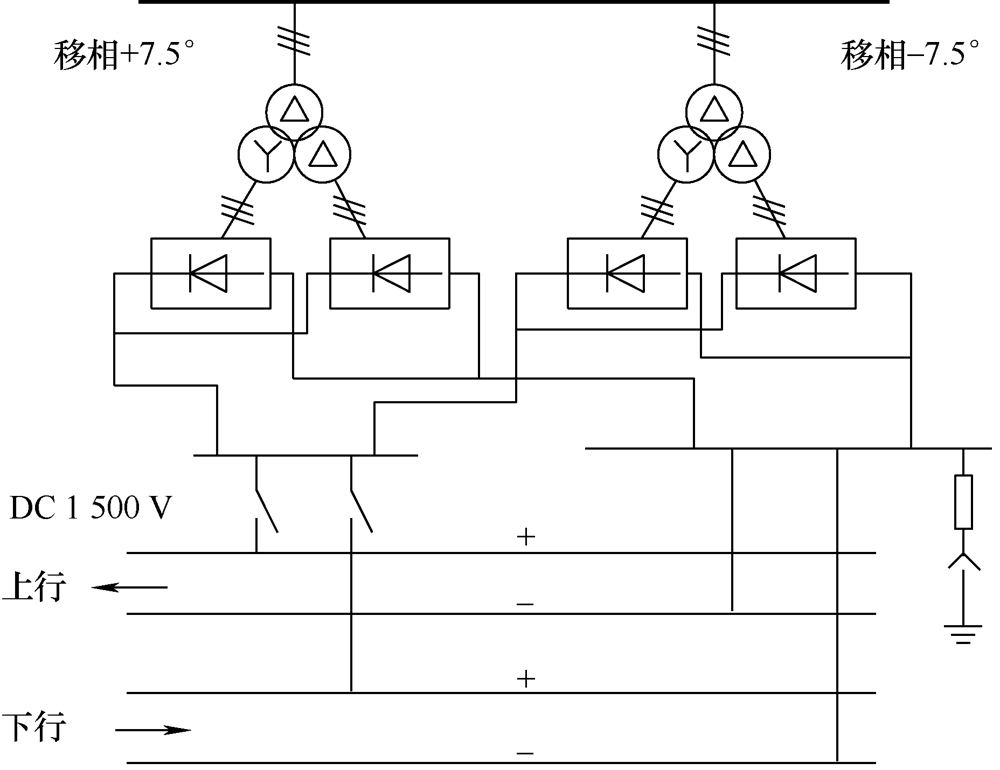

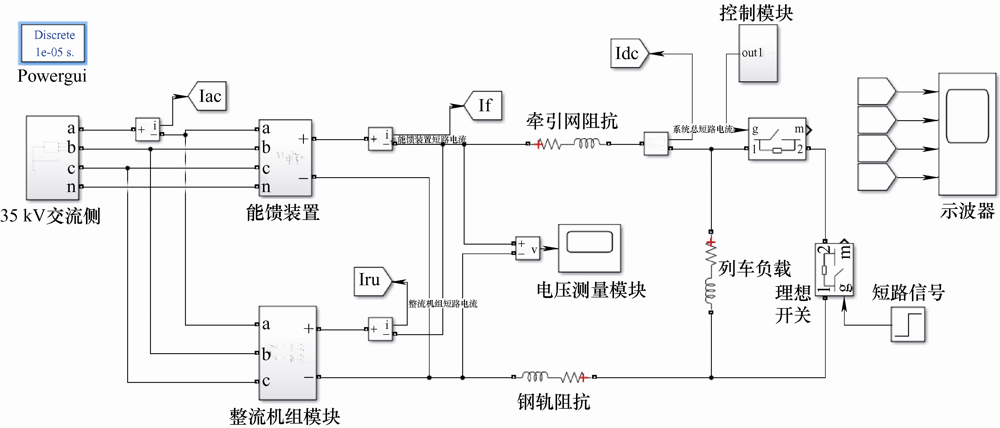

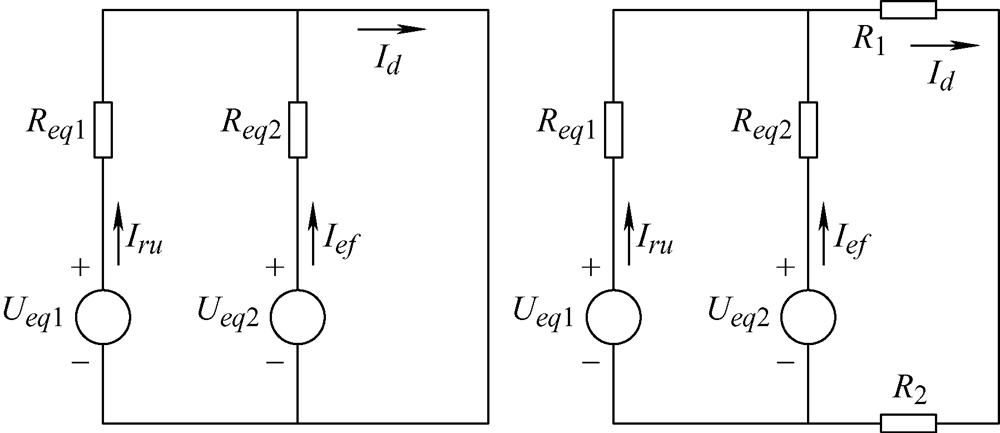

针对24脉波整流机组和逆变能馈装置并联耦合的混合牵引供电系统,研究其直流侧短路故障发生时的电流特性,并制定相应的直流侧短路保护整定参数。首先计算了整流机组和能馈装置单独短路情况下的等效参数,并根据叠加定理研究混合牵引供电系统的直流侧短路特性。然后对牵引供电系统继电保护类型及保护整定设计原则进行介绍分析。搭建含逆变能馈装置的混合牵引供电系统仿真模型,对含逆变能馈装置的直流牵引供电系统直流侧近、远端短路进行仿真,验证等效计算结果,根据仿真电流波形设定适合混合牵引供电系统的保护整定参数,判断不同短路距离时启用的保护类型,确定混合牵引供电系统能正确切断电路,保障城市轨道交通系统的安全运行。

关键词: 混合牵引供电, 外特性曲线, 逆变能馈装置, 系统短路仿真, 短路保护

Abstract:

For the hybrid traction power supply system with parallel coupling of 24 pulse rectifier unit and inverter energy feed device, the current characteristics of DC side short-circuit fault are studied, and the corresponding DC side short-circuit protection setting parameters are formulated. First, the equivalent parameters of rectifier unit and energy feed device are calculated, and the DC side short-circuit characteristics of hybrid traction power supply system are studied according to the superposition theorem. Then the relay protection types and protection setting design principles of traction power supply system are introduced and analyzed. The simulation model of hybrid traction power supply system with inverter energy feed device is built to simulate the short circuit at the near and far ends of DC side of DC traction power supply system with inverter energy feed device, and the equivalent calculation results are verified. The protection setting parameters of the hybrid traction power supply system are set according to the simulated current waveform, and the protection types enabled at different short-circuit distances are judged. It is determined that the hybrid traction power supply system can cut off the circuit correctly to ensure the safe operation of urban rail transit system.

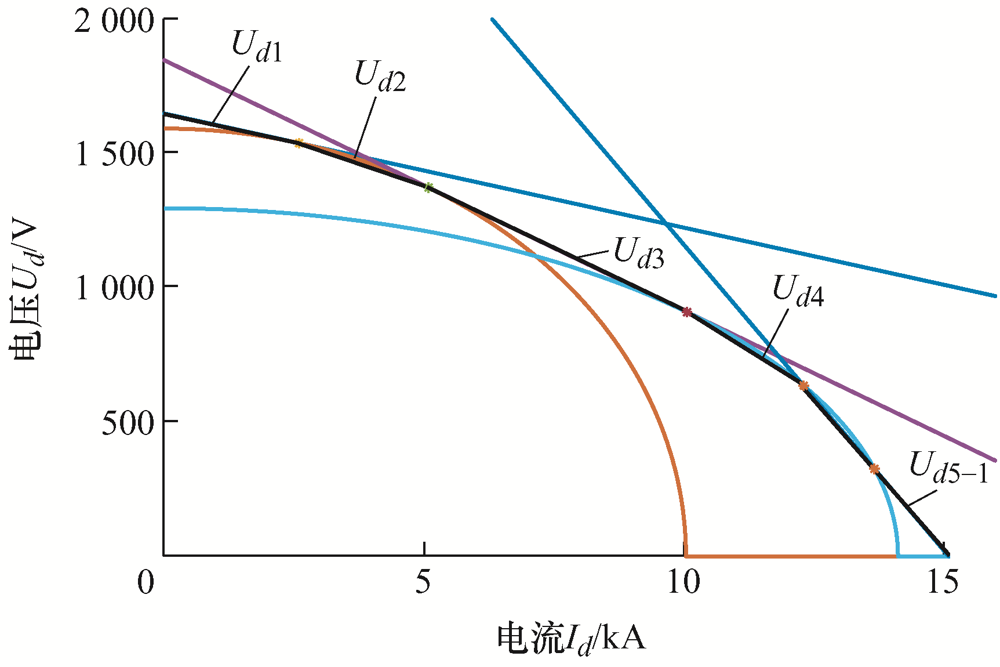

Key words: Hybrid traction power supply, external characteristic curve, inverter energy feeding device, short circuit simulation of system, short circuit protection

中图分类号:

U224

成庶, 周天娇, 向超群. 基于混合牵引供电系统的短路稳态计算及保护分析^*[J]. 电气工程学报, 2022, 17(2): 122-130.

CHENG Shu, ZHOU Tianjiao, XIANG Chaoqun. Short Circuit Steady State Calculation and Protection Analysis Based on Hybrid Traction Power Supply System[J]. Journal of Electrical Engineering, 2022, 17(2): 122-130.

图/表 19

图1

图2

图3

表1

表2

图4

图5

表3

表4

图6

图7

图8

图9

图10

图11

图12

表5

表6

表7

参考文献 24

[1]	翟婉明, 赵春发. 现代轨道交通工程科技前沿与挑战[J]. 西南交通大学学报, 2016, 51(2):209-226.
	ZHAI Wanming, ZHAO Chunfa. Frontiers and challenges of sciences and technologies in modern railway engineering[J]. Journal of Southwest Jiaotong University, 2016, 51(2):209-226.
[2]	仇龙刚. 直流牵引供电系统故障分析与保护方法研究[D]. 成都: 西南交通大学, 2015.
	QIU Longgang. Research on fault analysis and protection methods of DC traction power supply system[D]. Chengdu: Southwest Jiaotong University, 2015.
[3]	HAO Z, WU M, YE J. Fault modeling and protection research of multi-vehicle DC traction power supply system[C]// 2019 IEEE 3rd Advanced Information Management,Communicates,Electronic and Automation Control Conference (IMCEC),IEEE, 2019:453-457.
[4]	张勋, 李乾. 直流牵引供电系统短路故障分析[J]. 电气技术, 2013(11):1-5.
	ZHANG Xun, LI Qian. Short circuit fault analysis of DC traction power supply system[J]. Electrical Technology, 2013(11):1-5.
[5]	沈石秀, 向超群, 张璐琳, 等. 三电平地铁车辆能馈逆变器控制方法研究[J]. 铁道科学与工程学报, 2019, 16(11):2843-2851.
	SHEN Shixiu, XIANG Chaoqun, ZHANG Lulin, et al. Neutral point balance control of energy feedback inverter for metro vehicle[J]. Journal of Railway Science and Engineering, 2019, 16(11):2843-2851.
[6]	金雪丰, 陈裕楠, 童翔. 直流牵引供电系统短路试验分析[J]. 都市快轨交通, 2016, 29(3):103-105,109.
	JIN Xuefeng, CHEN Yunan, TONG Xiang. Analysis on short circuit test of DC traction power supply system[J]. Urban Rapid Rail Transit, 2016, 29(3):103-105,109.
[7]	FUJIMURA T, HONDA S. Short circuit currents based on rectifier circuits at DC substations[R]. Railway Technical Research Institute of Japanese National Railways,Quarterly Reports, 1973, 14(4):194-199.
[8]	李丹丹. 城市轨道交通直流牵引网稳态短路电流计算[J]. 电气化铁道, 2018, 29(5):55-60,67.
	LI Dandan. Calculation of steady state short circuit current of DC traction network of urban mass transit[J]. Electric Railway, 2018, 29(5):55-60,67.
[9]	BROWN J C, ALLAN J, MELLITT B. Six-pulse three-phase rectifier bridge models for calculating closeup and remote short circuit transients on DC supplied railways[J]. IEE Proceedings B-Electric Power Applications, 1991, 138(6):303-310. doi: 10.1049/ip-b.1991.0037
[10]	BROWN J C, ALLAN J, MELLITT B. Calculation of remote short circuit fault currents for DC railways[J]. IEE Proceedings B-Electric Power Applications, 1992, 139(4):289-294. doi: 10.1049/ip-b.1992.0034
[11]	BROWN J C, ALLAN J, MELLITT B. Calculation and measurement of rail impedances applicable to remote short-circuit fault currents[J]. IEE Proceedings B-Electric Power Applications, 1992, 139(4):295-302. doi: 10.1049/ip-b.1992.0035
[12]	许成, 王慧芳, 王晓保. 直流牵引供电系统短路计算模型分析[J]. 电力系统保护与控制, 2013, 41(22):84-90.
	XU Cheng, WANG Huifang, WANG Xiaobao. Analysis of short-circuit model for DC traction supply system[J]. Power System Protection and Control, 2013, 41(22):84-90.
[13]	王亚玲, 吴命利. 直流牵引变电所在供电系统运行仿真中的建模[J]. 电气化铁道, 2005(4):4-7.
	WANG Yaling, WU Mingli. Modeling in power supply system operation simulation of DC traction substation[J]. Electric Railway, 2005(4):4-7.
[14]	王亚玲, 吴命利, 胥刃佳. 城市轨道交通直流牵引供电系统的运行仿真[J]. 电气化铁道, 2006(2):38-41.
	WANG Yaling, WU Mingli, XU Renjia. Operation simulation of DC traction power supply system for urban rail transit[J]. Electric Railway, 2006(2):38-41.
[15]	李良威, 李群湛, 刘炜. 24脉波整流器外特性仿真及其在城市轨道交通中的应用[J]. 城市轨道交通研究, 2007, 10(10):52-55.
	LI Liangwei, LI Qunzhan, LIU Wei. Simulation of external characteristics of 24 pulse rectifier and its application in urban rail transit[J]. Urban Rail Transit Research, 2007, 10(10):52-55.
[16]	刘炜, 李群湛, 李良威. 基于多折线外特性模型的直流牵引供电系统稳态短路计算[J]. 机车电传动, 2008(1):61-64.
	LIU Wei, LI Qunzhan, LI Liangwei. Steady state short circuit calculation of DC traction power supply system based on multi broken line external characteristic model[J]. Locomotive Electric Drive, 2008(1):61-64.
[17]	龚廷志. 直流牵引供电系统数学模型与短路计算研究[D]. 北京: 北京交通大学, 2010.
	GONG Tingzhi. Research on mathematical model and short circuit calculation of DC traction power supply system[D]. Beijing: Beijing Jiaotong University, 2010.
[18]	王恒, 崔雪, 冯云斌, 等. 应用于轨道交通中24脉波自耦变压整流器的仿真研究[J]. 电测与仪表, 2017, 54(7):1-6,15.
	WANG Heng, CUI Xue, FENG Yunbin, et al. Simulation research on 24-pluse auto transformer rectifier used in rail transit[J]. Electrical Measurement and Instrumentation, 2017, 54(7):1-6,15.
[19]	GRECHISHNIKOV V A, KUROV N D, VLASOV S P, et al. Determination of electrical parameters of a traction current circuit using measured data in the traction power supply system of an 825-V subway[J]. Russian Electrical Engineering, 2019, 90(9):638-640. doi: 10.3103/S1068371219090062
[20]	XIA M, ZHOU Y, HUANG Y, et al. Research on short-circuit characteristics of subway DC traction power supply system[C]// IECON 2020 - 46th Annual Conference of the IEEE Industrial Electronics Society. IEEE, 2020:3456-3460.
[21]	胡波. 三相桥式PWM整流电路分析[J]. 电子世界, 2014(10):206.
	HU Bo. Analysis of three phase bridge PWM rectifier circuit[J]. Electronic World, 2014(10):206.
[22]	徐佳超. 我国电力机车及动车组的主要特点[J]. 民营科技, 2016(5):40.
	XU Jiachao. Main characteristics of electric locomotives and EMUs in China[J]. Private Technology, 2016(5):40.
[23]	GE Z, YANG Y, ZHANG J, et al. Optimal capacity design of energy feedback system in urban rail considering duty classes[C]// 2020 IEEE Vehicle Power and Propulsion Conference (VPPC),IEEE, 2020:1-4.
[24]	李军, 韦庭三, 黄俊. 南宁地铁1号线直流牵引供电系统短路试验方案研究[J]. 现代城市轨道交通, 2018(6):12-15.
	LI Jun, WEI Tingsan, HUANG Jun. Research on short-circuit test scheme of DC traction power supply system for Nanning metro line 1[J]. Modern Urban Transit, 2018(6):12-15.

参数	数值
穿越阻抗x_k/Ω	0.040 5
半穿越阻抗x_b/Ω	0.065 8
系统短路电抗x_s/Ω	0.023 2
换相电抗x_c/Ω	0.089 0
耦合系数k	0.431 5
空载电压U_d0/V	1 650

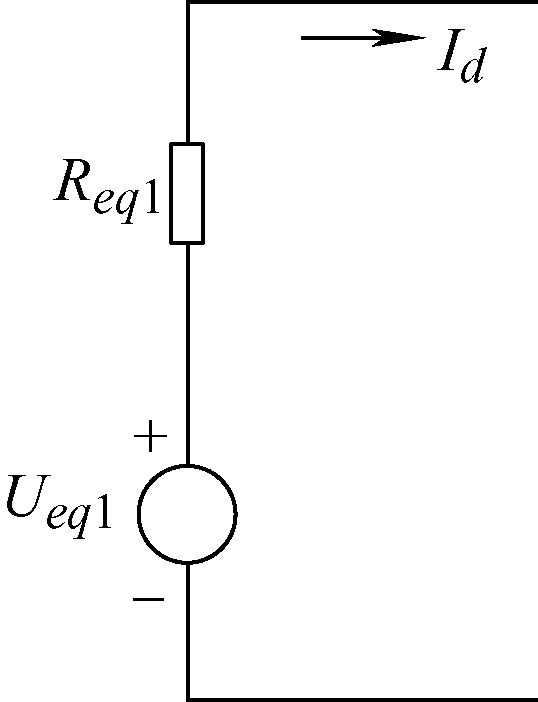

等效区间	等效电压$U_{eq1}^{’}$/V	等效内阻$R_{ eq1}^{’}$/Ω	负载电流范围/A
一	1 650	0.021 3	0<I_d<5 200
二	1 711	0.033 2	5 200< I_d <10 180
三	1 848	0.046 6	10 180< I_d <20 140
四	2 141	0.061 1	20 140< I_d <24 625
五	3 438	0.113 8	24 624< I_d

参数	数值
变压器阻抗X_T/Ω	0.024
交流电感等效阻抗X_l/Ω	0.039 3
交流电源系统阻抗X_s/Ω	0.016 7
交流侧总阻抗X_p/Ω	0.08
空载电压V_d0/V	1 350

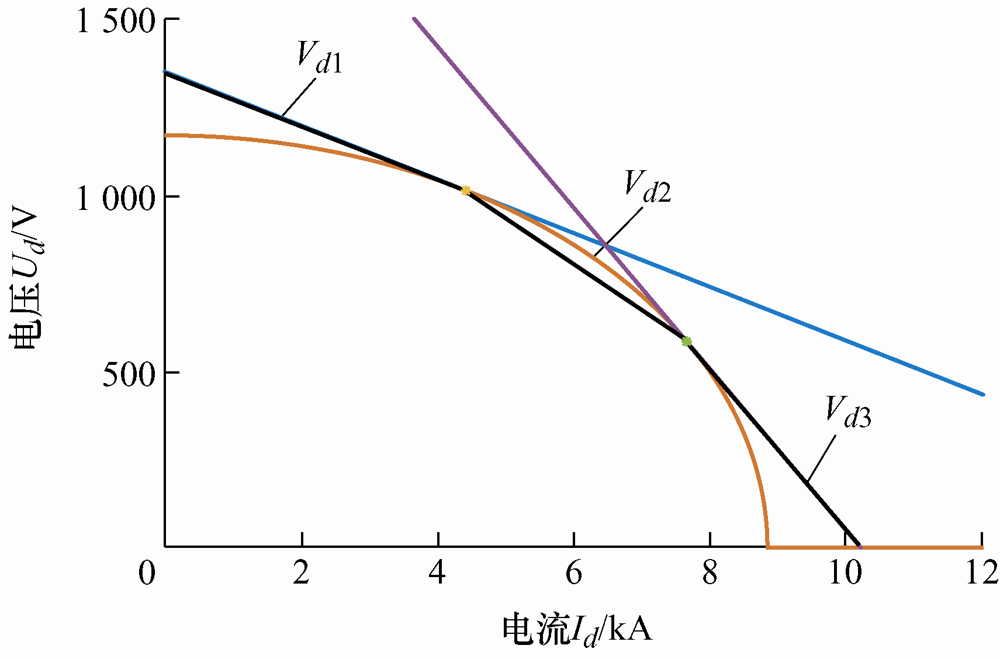

等效区间	等效电压U_eq2/V	等效内阻R_eq2/V	负载电流范围/A
一	1 350	0.076 3	0<I_d<4 419
二	1 598	0.132 3	4 419< I_d <7 654
三	2 338	0.229 0	7 654< I_d

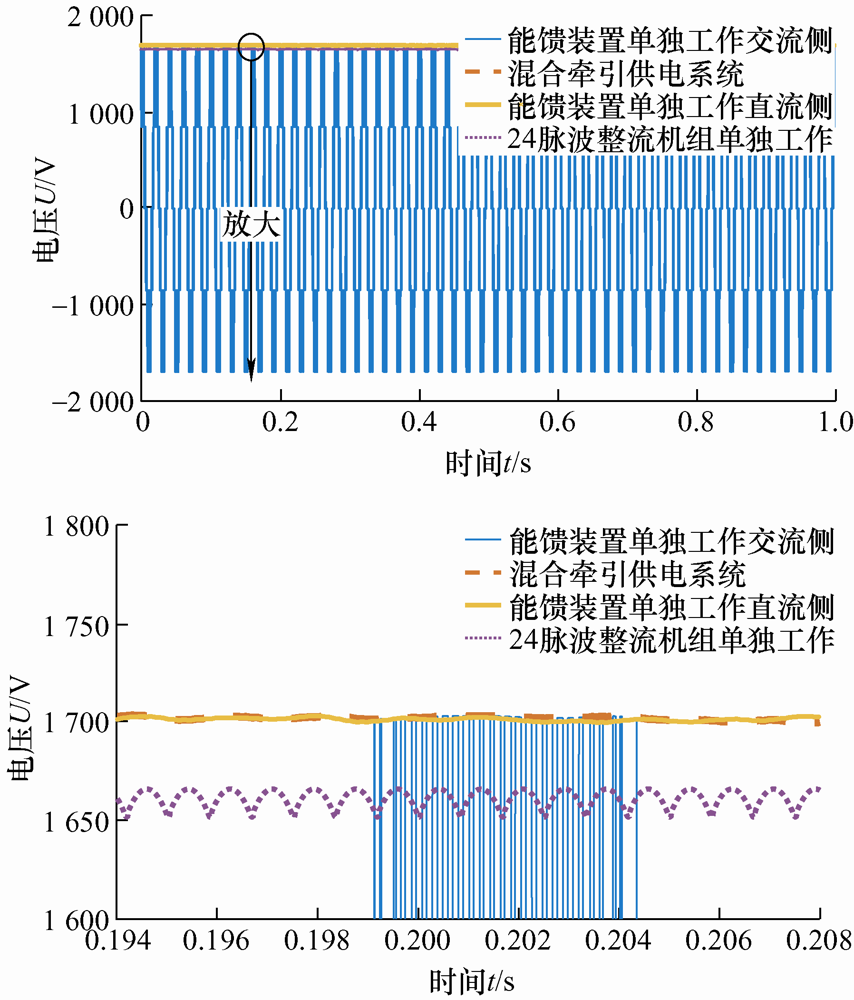

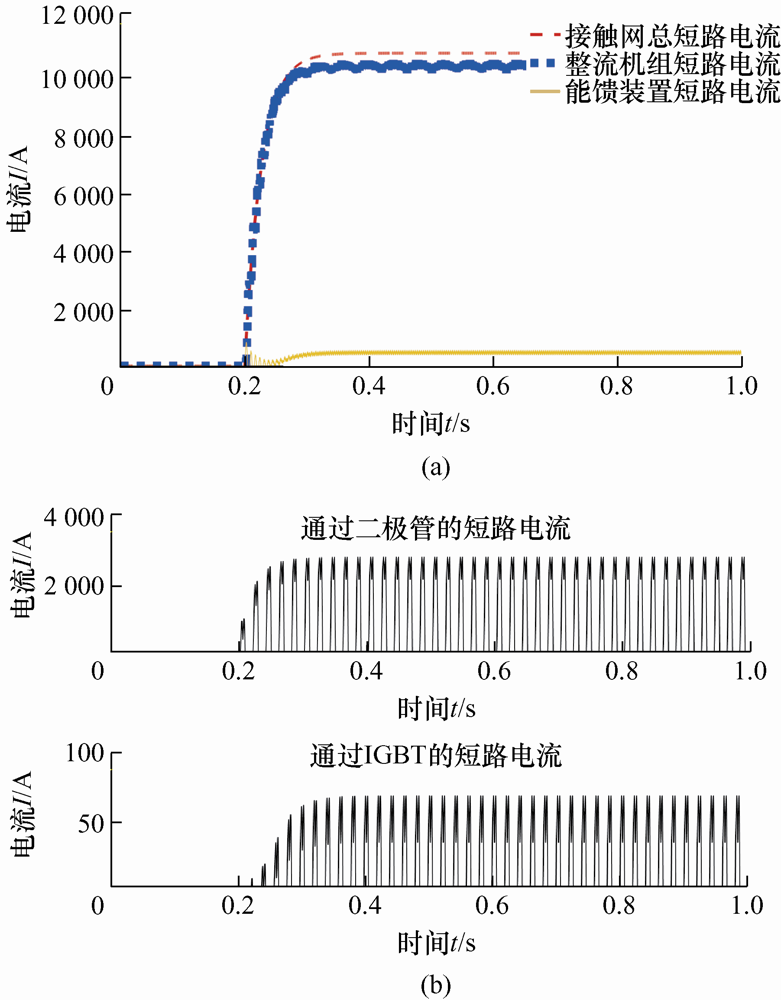

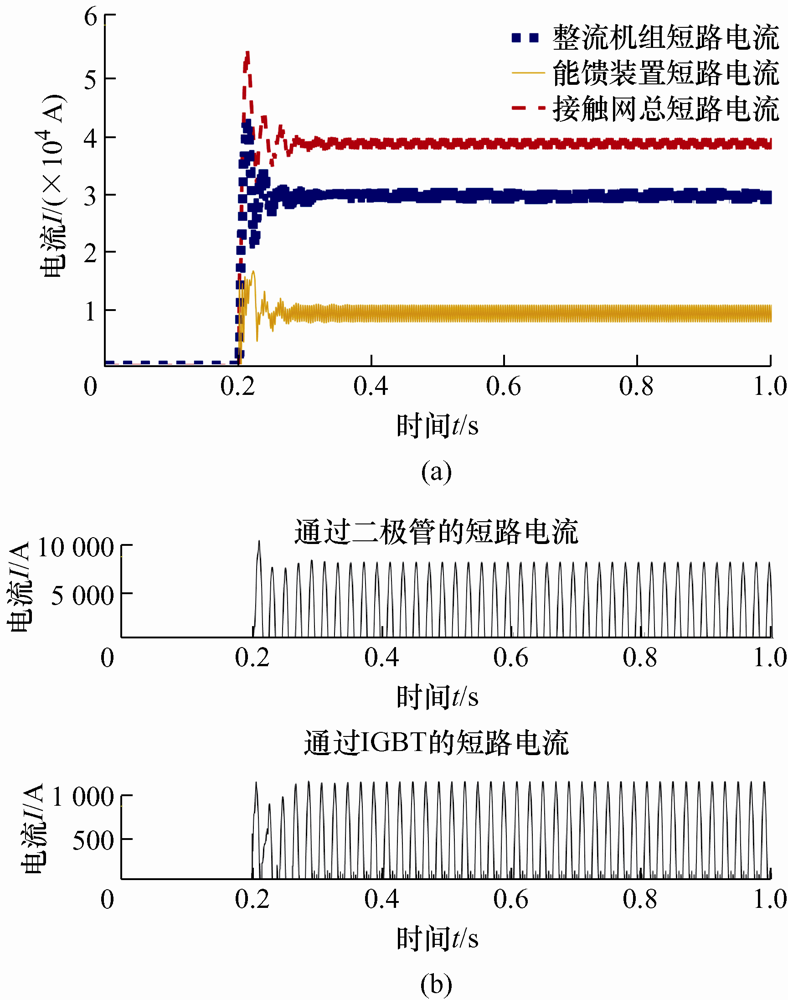

短路点距离/km	短路电流/A	计算值/A	仿真值/A	误差(%)
0.04	I_d	39 193	38 610	1.5
	I_ru	29 391	29 405	-0.04
	I_ef	9 802	9 250	1.4
2	I_d	11 218	10 880	3.0
	I_ru	10 945	10 450	4.4
	I_ef	273	430	-1.4
