节能型低风压导线在沿海110 kV台风区线路的应用*

doi:10.11985/2020.03.008

电气工程学报 ›› 2020, Vol. 15 ›› Issue (3): 57-64.doi: 10.11985/2020.03.008

扫码分享

节能型低风压导线在沿海110 kV台风区线路的应用^*

林锐¹(),吴明埝²(),杨龙³(),陈伏彬⁴(),缪姚军²(),翁兰溪¹(),沈星峰¹()

1.中国电建集团福建省电力勘测设计院有限公司福州 350003
2.江苏中天科技股份有限公司南通 226463
3.国网福清市供电公司福清 350300
4.长沙理工大学土木工程学院长沙 410114

收稿日期:2020-04-10 修回日期:2020-07-11 出版日期:2020-09-25 发布日期:2020-10-28
通讯作者: 林锐 E-mail:156204974@qq.com;wumn@chinaztt.com;519901740@qq.com;fbchen88@126.com;miaoyaojun@chinaztt.com;wenglanxi@qq.com;shenxf@fedi.com.cn
作者简介:吴明埝,男,1977年生,高级工程师。主要从事增容导线、节能导线、环境适应型导线的研发和应用。E-mail：wumn@chinaztt.com|杨龙,男,1988年生,硕士,工程师。主要从事高压输电线路运行维护及检修。E-mail：519901740@qq.com|陈伏彬,男,1981年生,博士,副教授。主要从事建筑结构抗风研究。E-mail：fbchen88@126.com|缪姚军,男,1983年生,硕士,高级工程师。主要从事增容导线、节能导线、环境适应型导线的研发和应用。E-mail：miaoyaojun@chinaztt.com|翁兰溪,男,1980年生,硕士,教授级高级工程师。主要从事超/特高压输电线路结构设计及研究。E-mail：wenglanxi@qq.com|沈星峰,男,1968年生,高级工程师。主要从事高压输电线路设计及研究。E-mail：shenxf@fedi.com.cn
基金资助:
* 国家自然科学基金(51778072)

Application of Energy-saving Drag Reduced Conductor on 110 kV Transmission Line in Coastal Typhoon Area

LIN Rui¹(),WU Mingnian²(),YANG Long³(),CHEN Fubin⁴(),MIAO Yaojun²(),WENG Lanxi¹(),SHEN Xingfeng¹()

1. PowerChina Fujian Electric Power Engineering Co., Ltd., Fuzhou 350003
2. Jiangsu Zhongtian Technology Co., Ltd., Nantong 226463
3. State Grid Fuqing County Electric Power Supply Co., Ltd., Fuqing 350300
4. School of Civil Engineering, Changsha University of Science &Technology, Changsha 410114

Received:2020-04-10 Revised:2020-07-11 Online:2020-09-25 Published:2020-10-28
Contact: LIN Rui E-mail:156204974@qq.com;wumn@chinaztt.com;519901740@qq.com;fbchen88@126.com;miaoyaojun@chinaztt.com;wenglanxi@qq.com;shenxf@fedi.com.cn

摘要/Abstract

摘要：

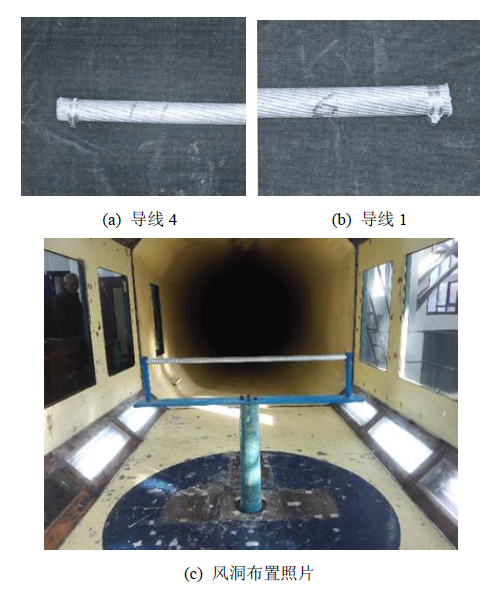

传统架空导线的风阻系数及电阻损耗较大,在沿海台风区应用该类型导线,不利于线路工程造价的降低及线路可靠性的提高。以国内首条应用节能型低风压导线的输电线路——福建莆田忠田~湄洲110 kV线路工程为依托,通过风洞试验研究节能型中强度全铝合金低风压导线风阻系数的变化规律并确定工程风阻系数取值,结合沿海强风区输电线路的特点,从输送容量、电阻损耗、电气性能、力学及荷载特性、工程投资、经济性评价等方面对节能型低风压导线与铝包钢芯铝绞线、全铝合金导线、铝合金型铝绞线等传统导线进行了系统分析及比较。研究表明,中强度全铝合金低风压导线在节能降阻、减小导线及杆塔风荷载、降低工程投资等方面具有明显优势,在沿海台风区具有良好的应用前景。此外,根据低风压导线特殊的结构型式,研制出配套的接续金具。

关键词: 输电线路, 低风压导线, 节能导线, 台风区, 风阻系数

Abstract:

The wind drag coefficient and resistance loss of conventional overhead conductor is large, the application of this type of conductor in coastal typhoon area is not conducive to reduce the investment and improve the reliability of transmission line. Based on Zhongtian-Meizhou 110 kV transmission line project in Fujian province which is the first time to apply the drag reduced conductor in domestic transmission line, the change rule of wind resistance coefficient is obtained through wind tunnel test. At the same time, according to the characteristics of the transmission line in coastal strong wind area, comparing with the conventional conductors such as Aluminum conductor aluminum-cald steel reinforced, all aluminum alloy conductor and aluminum conductor alloy reinforced, the energy-saving drag reduced conductor is systematically analyzed from the aspects of transmission capacity, resistance loss, electrical performance, mechanical and load characteristics, project investment, economic evaluation, etc. The research shows that the drag reduced conductor has obvious advantages in energy saving, reduction of wind load on conductor and tower, reduction of investment, it has a good application prospect in the coastal typhoon area. Besides, the matching fittings which are suitable to the special structure of the drag reduced conductor are developed.

Key words: Transmission line, drag reduced conductor, energy-saving conductor, typhoon area, drag coefficient

中图分类号:

TM751

林锐,吴明埝,杨龙,陈伏彬,缪姚军,翁兰溪,沈星峰. 节能型低风压导线在沿海110 kV台风区线路的应用^*[J]. 电气工程学报, 2020, 15(3): 57-64.

LIN Rui,WU Mingnian,YANG Long,CHEN Fubin,MIAO Yaojun,WENG Lanxi,SHEN Xingfeng. Application of Energy-saving Drag Reduced Conductor on 110 kV Transmission Line in Coastal Typhoon Area[J]. Journal of Electrical Engineering, 2020, 15(3): 57-64.

图/表 13

表1

图1

表2

图2

表3

表4

表5

表6

表7

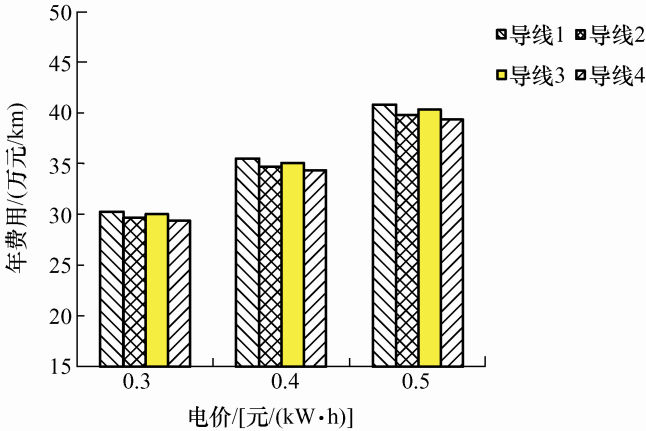

图3

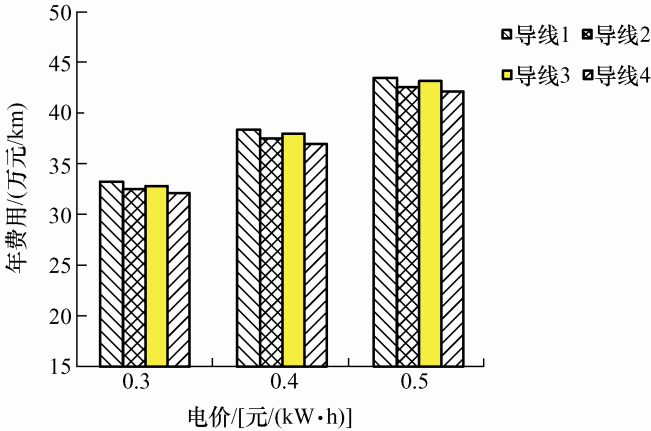

图4

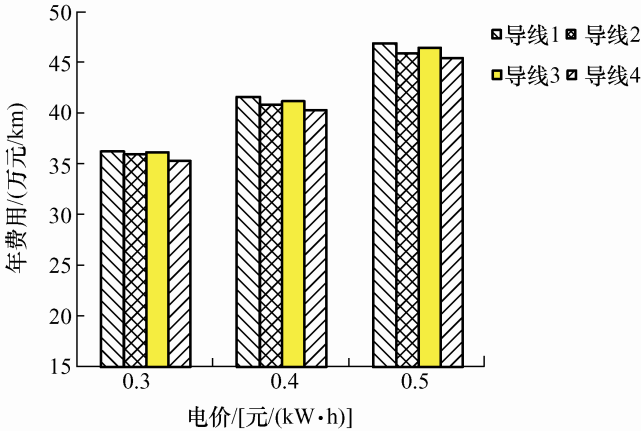

图5

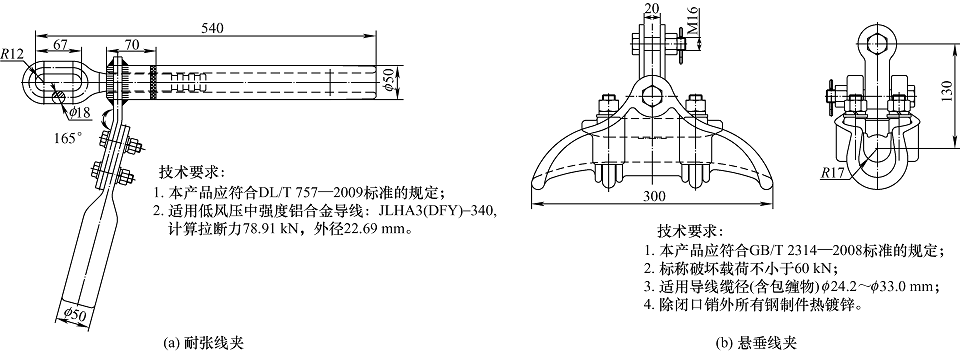

图6

参考文献 24

[1]	黄增浩, 吴新桥, 孟晓波, 等. 沿海地区输电线路台风观测方法研究及“莫兰蒂”台风实测分析[J]. 南方电网技术, 2018,12(9):28-34.
	HUANG Zenghao, WU Xinqiao, MENG Xiaobo, et al. Research on measurement of typhoon on transmission line in coastal areas and measurement of typhoon Meranti[J]. Southern Power System Technology, 2018,12(9):28-34.
[2]	厉天威, 江巳彦, 赵建华, 等. 南方电网沿海地区输电线路风灾事故分析[J]. 高压电器, 2016,52(6):23-28.
	LI Tianwei, JIANG Siyan, ZHAO Jianhua, et al. Wind accident analysis of southern grid coastal region transmission line[J]. High Voltage Apparatus, 2016,52(6):23-28.
[3]	陈德花, 张玲, 张伟, 等. “莫兰蒂”台风致灾大风的结构特征及成因[J]. 大气科学学报, 2018,41(5):692-701.
	CHEN Dehua, ZHANG Ling, ZHANG Wei, et al. Structure characteristics and cause analysis of catastrophic wind caused by super typhoon Meranti[J]. Transaction of Atmospheric Science, 2018,41(5):692-701.
[4]	张春艳. 中国沿海登陆台风灾害风险特征分析[D]. 南昌:江西理工大学, 2019.
	ZHANG Chunyan. Analysis of risk characteristics of typhoon disasters in coastal China[D]. Nanchang:Jiangxi University of Science and Technology, 2019.
[5]	尤传永. 输电线路低噪声导线的开发研究[J]. 电力建设, 2005,26(9):1-5.
	YOU Chuanyong. Research and development of low noise conductors for power transmission[J]. Electric Power Construction, 2005,26(9):1-5.
[6]	EGUCHI Y, KIKUCHI N, KAWABATA K, et al. Drag reduction mechanism and aerodynamic characteristics of a newly developed overhead electric wire[J]. Journal of Wind Engineering & Industrial Aerodynamics, 2002,90(4):293-304.
[7]	KIKUCHI N, MATSUZAKI Y, YUKINOB T, et al. Aerodynamic drag of new-design electric power wire in a heavy rainfall and wind[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2003,91(1-2):41-51. doi: 10.1016/S0167-6105(02)00334-3
[8]	党朋, 吴细毛, 刘斌, 等. 一种低风压导线:中国,CN201310467783.X[P]. 2015-04-29.
	DANG Peng, WU Ximao, LIU Bin, et al. A new type of low wind pressure conductor：China,CN201310467783. X[P]. 2015-04-29.
[9]	薛济萍, 薛驰, 吴明埝, 等. 节能型低风压导线：中国,201220625450.6[P]. 2013-06-05.
	XUE Jiping, XUE Chi, WU Mingnian, et al. Energy-saving low wind pressure conductor:China,CN201220625450.6[P]. 2013-06-05.
[10]	周泽, 李世霞, 蒋超. 一种复合低风压导线：中国,201420179179.7[P]. 2014-09-03.
	ZHOU Ze, LI Shixia, JIANG Chao. A new type of composite low wind pressure conductor：China,CN201420179179.7[P]. 2014-09-03.
[11]	中华人民共和国住房和城乡建设部. 110 kV-750 kV架空输电线路设计规范：GB 50545—2010[S]．北京: 中国计划出版社, 2010.
	Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Code for design of 110 kV-750 kV overhead transmission line：GB 50545— 2010[S]. Beijing: China Planning Press, 2010.
[12]	IEC. Design criteria of overhead transmission lines:IEC 60826[S]. Geneva,Switzerland:IEC, 2003.
[13]	Guidelines for electrical transmission line structural loading：ASCE 74[S]. Reston,USA:ASCE, 2010.
[14]	李名珍, 朱红良, 黎汉林, 等. 低风压架空导线的风洞试验[J]. 电线电缆, 2017,10(5):9-12.
	LI Mingzhen, ZHU Hongliang, LI Hanlin, et al. Wind tunnel test of drag reduced overhead conductor[J]. Electric Wire & Cable, 2017,10(5):9-12.
[15]	谢强, 孙启刚, 管政. 多分裂导线整体阻力系数风洞试验研究[J]. 电网技术, 2013,37(4):1106-1112.
	XIE Qiang, SUN Qigang, GUAN Zheng. Wind tunnel test on global drag coefficients of multi-bundled conductors[J]. Power System Technology, 2013,37(4):1106-1112.
[16]	党朋, 吴细毛, 刘斌, 等. 新型同心绞导线风阻力系数风洞试验[J]. 电线电缆, 2014(4):30-33.
	DANG Peng, WU Ximao, LIU Bin, et al. Wind tunnel test on drag coefficient of new type concentric-lay-stranded conductors[J]. Electric Wire & Cable, 2014(4):30-33.
[17]	王述良, 良枢果, 邹良浩, 等. 基于刚性节段模型风洞试验的输电导线阻力系数研究[J]. 湖南大学学报, 2016,43(3):32-40.
	WANG Shuliang, LIANG Shuguo, ZOU Lianghao, et al. Study on drag coefficients of conductors based on wind tunnel tests of rigid sectional model[J]. Journal of Hunan University, 2016,43(3):32-40.
[18]	刘鹏. 输电线路低风阻导线结构设计与研究[D]. 北京:华北电力大学, 2017.
	LIU Peng. Design and research of drag reduced conductor for transmission line[D]. Beijing:North China Electric Power University, 2017.
[19]	周超, 陈作, 李力, 等. 基于有限元的低风压导线结构分析[J]. 图学学报, 2018,39(1):129-135.
	ZHOU Chao, CHEN Zuo, LI Li, et al. Analysis of low-wind-pressure conductor based on finite element[J]. Journal of Graphics, 2018,391(1):129-135.
[20]	张满, 冉军德, 田芝华, 等. 带电雾凇覆冰后分裂导线电场分布模型分析[J]. 电气工程学报, 2018,13(8):43-48.
	ZHANG Man, RAN Junde, TIAN Zhihua, et al. Study of the model of electrical field distribution of bundle conductor after energized rime icing[J]. Journal of Electrical Engineering, 2018,13(8):43-48.
[21]	段旭东, 韩宇, 陆春阳, 等. 低风压导线与常规导线对比分析[J]. 电气工程学报, 2019,14(4):66-71.
	DUAN Xudong, HAN Yu, LU Chunyang, et al. Comparative analysis of lower wind pressure conductor and conventional conductor[J]. Journal of Electrical Engineering, 2019,14(4):66-71.
[22]	林锐, 张礼朝, 张培勇, 等. 1 000 kV特高压交流输电线路大跨越导线选型[J]. 电力建设, 2015,36(5):91-98. doi: 10.3969/j.issn.1000-7229.2015.05.015
	LIN Rui, ZHANG Lichao, ZHANG Peiyong, et al. Large-crossing conductor selection of 1 000 kV UHVAC transmission line[J]. Electric Power Construction, 2015,36(5):91-98. doi: 10.3969/j.issn.1000-7229.2015.05.015
[23]	薛栋良, 徐荣金. 输电线路高效更换碳纤维导线的施工方法[J]. 电气工程学报, 2018,13(12):31-35.
	XUE Dongliang, XU Rongjin. Method of constructing high-efficiency replacement of ACCC wires for transmission line[J]. Journal of Electrical Engineering, 2018,13(12):31-35.
[24]	国家能源局. 电力网电能损耗计算导则：DL/T 686—2018[S]．北京: 中国电力出版社, 2018.
	National Energy Administration. Guidelines for the calculation of power loss in power grids：DL/T 686—2018 [S]． Beijing: China Electric Power Press, 2018.

项目		导线1	导线2	导线3	导线4
项目		JL/LB20A-300/40	JL3/LHA1-165/175	JLHA3-340	JLHA3X(DFY)-340
结构示意图
根数	铝(铝合金)	18	18	—	12
根数	钢(铝合金)	19	19	37	19
直径/mm	铝(铝合金)	3.42	3.42	—	4.16(X)
直径/mm	钢(铝合金)	3.42	3.42	3.42	3.40
计算面积/mm²	铝(铝合金)	165.35	165.35	—	—
	钢(铝合金)	174.54	174.54	339.9	335.61
	总计	339.89	339.89	339.9	335.61
直径/mm		23.94	23.94	23.94	22.7
单位重量/(kg/km)		1085.5	939.4	939.4	917.0
计算拉断力/kN		94.69	81.17	81.58	78.91
弹性模量/(kN·mm²)		69	55	55	55
膨胀系数×10^-6/℃		20.6	23	23	23
20℃直流电阻/(Ω/km)		0.092 1	0.090 5	0.088 7	0.088 8

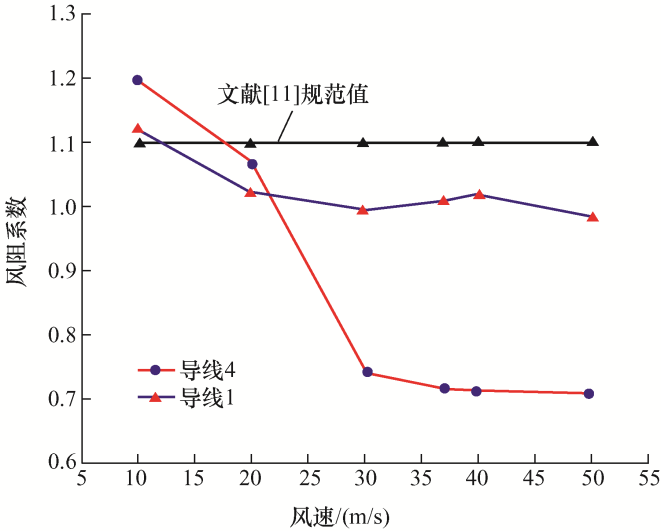

导线型号	风速/(m/s)
导线型号	10	20	30	37	40	50
导线4	1.198	1.07	0.743	0.720	0.721	0.712
导线1	1.120	1.02	0.995	1.01	1.02	0.983

导线型号	导线温度/℃	允许载流量/A	极限输送容量/MW
导线1	80	643	116
导线2	80	658	119
导线3	80	649	117
导线4	80	649	117

导线型号	运行温度 /℃	运行温度交流电阻/(Ω/km)	电阻损耗/(kW/km)	电阻损耗差值/(kW/km)
导线1	46.78	0.102 9	41.06	0
导线2	46.42	0.098 6	39.32	-1.74
导线3	46.66	0.101 4	40.44	-0.62
导线4	46.46	0.098 7	39.37	-1.69

导线型号		导线1	导线2	导线3	导线4
设计安全系数		2.5	2.5	2.5	2.5
年均安全系数		4	4	4	4
最大应力/MPa		106.2	91.2	90.8	89.4
年均应力/MPa		66.3	57.0	56.7	55.8
拉重比m		8.90	8.86	8.81	8.77
大风过载/(m/s)	L_p=300 m	58.3	55.5	55.5	55.7
大风过载/(m/s)	L_p=400 m	54.5	53.3	53.1	53.3
高温弧垂/m	L_p=300 m	6.36	6.71	6.76	6.68
高温弧垂/m	L_p=400 m	11.08	12.36	12.44	12.25
风偏角/(°) (K_v=0.85)	大风工况	63.2	66.7	66.7	60.7
	操作工况	32.0	35.6	35.6	28.9
	雷电工况	22.5	25.3	25.3	19.5
	带电工况	10.4	11.8	11.8	9.1
V型串夹角/(°)		110	118	118	105

节能型低风压导线在沿海110 kV台风区线路的应用^*

Application of Energy-saving Drag Reduced Conductor on 110 kV Transmission Line in Coastal Typhoon Area

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 13

参考文献 24

相关文章 8

编辑推荐

Metrics

本文评价

导线型号		导线1	导线2	导线3	导线4
垂直荷载/(N/相)	垂直档距L_v=500 m	5 320	4 610	4 610	4 500
垂直荷载/(N/相)	垂直荷载对比(%)	100.0	86.5	86.5	84.5
水平荷载/(N/相)	水平档距L_h=450 m	8 080	8 080	8 080	5 919
水平荷载/(N/相)	水平荷载对比/%	100.0	100.0	100.0	73.2
纵向荷载/(N/相)	最大张力	35 980	31 000	30 840	29 990
纵向荷载/(N/相)	纵向荷载对比(%)	100.0	86.2	85.7	83.3
耐张绝缘子吨位/kN		2×70	2×70	2×70	2×70
耐张串安全系数		3.89	4.51	4.53	4.67
悬垂V型串强度/kN		1×70	1×70	1×70	1×70

项目	导线型式	导线1	导线2	导线3	导线4
导线投资	分裂数	1	1	1	1
	回路数	4	4	4	4
	导线自重/(kg/km)	1 085.5	939.4	939.4	917.0
	导线总重/(t/km)	13.29	11.50	11.50	11.22
	导线单价/(元/t)	16 000	19 800	20 000	21 000
	导线费用/(万元/km)	21.26	22.77	23.00	23.57
杆塔投资	直线塔单基重量/t	21.00	20.60	20.39	19.60
	耐张塔单基重量/t	28.89	26.67	26.61	26.03
	杆塔重量/(t/km)	56.55	56.28	56.08	54.25
	塔材费用/(万元/km)	53.72	53.46	53.28	51.54
基础投资	混凝土方量/(m³/km)	134.30	133.65	128.93	126.24
	混凝土费用 /(万元/km)	36.26	36.09	34.81	34.09
	基础钢材/(t/km)	10.74	10.69	10.31	10.10
	基础钢材价格/万元	5.37	5.35	5.16	5.05
其他	附件费用/(万元/km)	5.34	5.34	5.34	5.34
	接地费用/(万元/km)	0.5	0.5	0.5	0.5
	辅助设施/(万元/km)	4	4	4	4
本体投资/(万元/km)		126.5	127.5	126.1	124.1
本体投资差额/(万元/km)		0.00	1.05	-0.37	-2.37
本体投资对比(%)		100.0	100.8	99.7	98.6
