直流电能路由器端口能量综合控制策略研究*

doi:10.11985/2020.02.006

电气工程学报 ›› 2020, Vol. 15 ›› Issue (2): 41-46.doi: 10.11985/2020.02.006

扫码分享

直流电能路由器端口能量综合控制策略研究^*

杨新华^1,²(),曹磊^1,²(),张晓英^1,²

1.兰州理工大学电气工程与信息工程学院兰州 730050;
2.甘肃省工业过程先进控制重点实验室兰州 730050

收稿日期:2020-03-02 出版日期:2020-06-25 发布日期:2020-07-31
通讯作者: 曹磊 E-mail:yangxhm@163.com;986220050@qq.com
作者简介:杨新华,男,1967年生,教授,硕士研究生导师。主要研究方向为电力电子与特种电源。E-mail:yangxhm@163.com
基金资助:
* 国家自然科学基金资助项目(51867015)

Synthetical Control Technology of DC Electric Energy Router Based on Port Energy Relationship

YANG Xinhua^1,²(),CAO Lei^1,²(),ZHANG Xiaoying^1,²

1. College of Electrical Engineering and Information Engineering, Lanzhou University of Technology, Lanzhou 730050 China;
2. Key Laboratory of Gansu Advanced Control for Industrial Processes, Lanzhou University of Technology, Lanzhou 730050 China

Received:2020-03-02 Online:2020-06-25 Published:2020-07-31
Contact: CAO Lei E-mail:yangxhm@163.com;986220050@qq.com

摘要/Abstract

摘要：

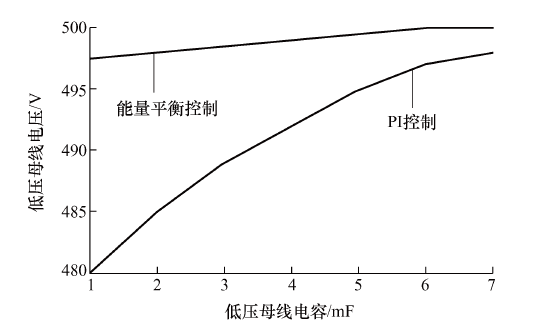

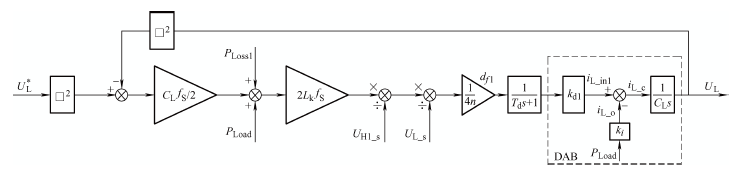

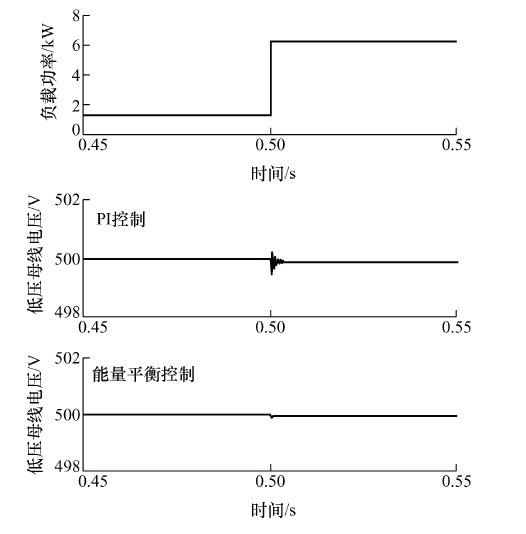

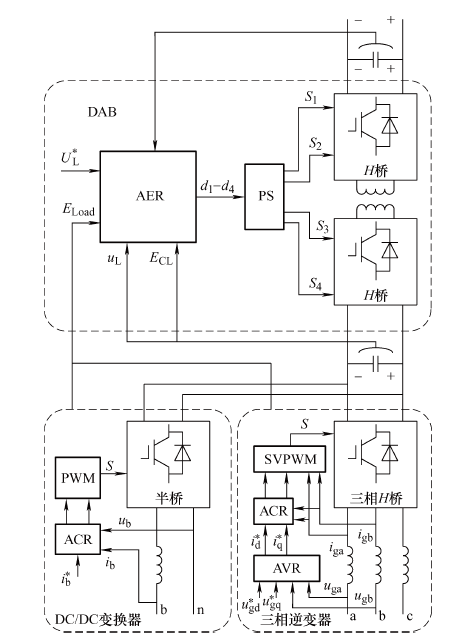

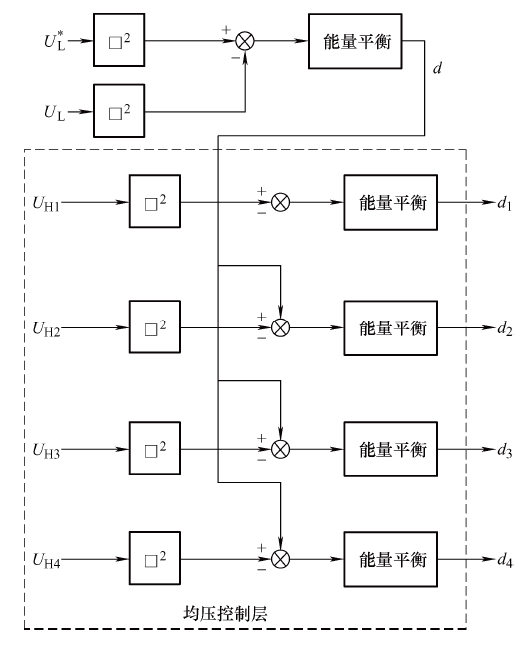

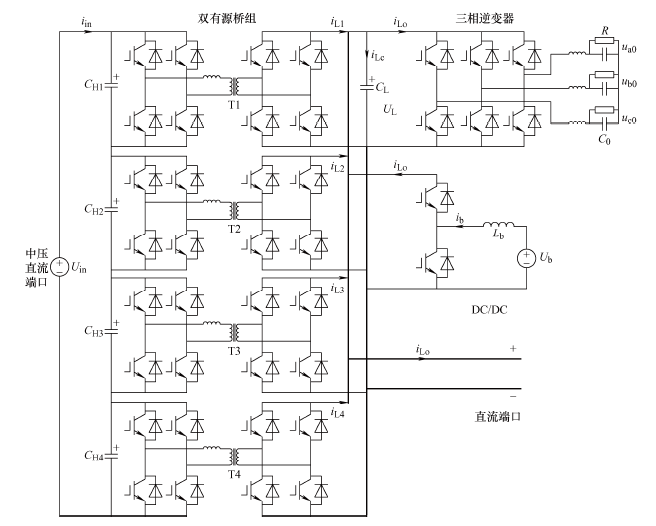

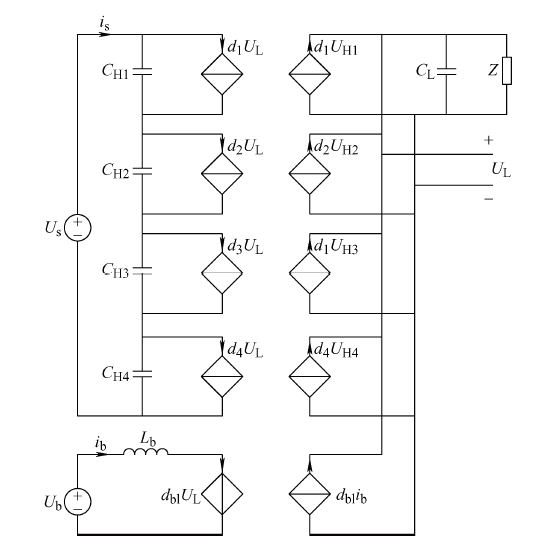

针对直流配电网的电能路由器控制问题,通过端口能量综合控制方法提高内部直流母线响应速度,增强直流电能路由器稳态性能。基于一种双有源变换单元的四端口直流电能路由器,分析端口能量流动情况,建立针对端口的直流电能路由器的能量模型,依据端口能量关系,设计综合控制器,对各级单元之间能量进行综合控制,分析系统中无源器件的参数差异对综合控制的影响,设计直流电能路由器并网运行综合控制策略,提高直流母线电压稳定性。最后,在Matlab/Simulink平台对控制策略进行仿真验证,结果验证了综合控制策略的有效性,同时仿真结果表明提出的控制策略有利于减小低压母线电容值。

关键词: 直流电能路由器, 端口能量, 能量模型, 端口能量控制

Abstract:

Aiming at the control problem of the energy router of the DC power distribution network, the response speed of the internal DC bus is improved through the integrated control method of the port energy, so as to improve the transient performance of the DC power router. Based on a four-port DC power router with dual active bridge conversion units, the energy flow of the ports is analyzed, the port energy model of the power router is established, and an integrated controller is designed based on the port energy relationship to comprehensively control the energy between units at all levels, the influence of the parameter differences of the passive components in the system on the comprehensive control is analyzed, a comprehensive control strategy is designed for the grid-connected operation of the DC power router, and the stability of the DC bus voltage is improved. Finally, the control strategy is simulated based on Matlab/Simulink, and the simulation results verify the effectiveness of the integrated control strategy. At the same time, the simulation results show that the control strategy proposed is conducive to reduce the capacitance value of low-voltage bus.

Key words: DC electric energy router, port energy, energy model, port energy control

中图分类号:

TM642

杨新华, 曹磊, 张晓英. 直流电能路由器端口能量综合控制策略研究^*[J]. 电气工程学报, 2020, 15(2): 41-46.

YANG Xinhua, CAO Lei, ZHANG Xiaoying. Synthetical Control Technology of DC Electric Energy Router Based on Port Energy Relationship[J]. Journal of Electrical Engineering, 2020, 15(2): 41-46.

图/表 8

图1

图2

图3

图4

图5

表1

图6

图7

参考文献 11

[1]	江道灼, 郑欢. 直流配电网研究现状与展望[J]. 电力系统自动化, 2012,36(8):98-104.
	Jiang Daozhuo, Zheng Huan. Research status and developing prospect of DC distribution network[J]. Automation of Electric Power Systems, 2012,36(8):98-104.
[2]	宋强, 赵彪, 刘文华, 等. 智能直流配电网研究综述[J]. 中国电机工程学报, 2013,33(25):9-19,5.
	Song Qiang, Zhao Biao, Liu Wenhua, et al. An overview of research on smart DC distribution power network[J]. Proceedings of the CSEE, 2013,33(25):9-19,5.
[3]	Zhou Xuesong, Wang Fuzhi, Ma Youjie, et al. An overview on energy router based on various forms of energy[C]// Proceedings of IEEE Chinese Control and Decision Conference,Yinchuan,China, 2016:2901-2906.
[4]	Feng Gaohui, Zhao Zhengming, Yuan Liqiang, et al. Combined DC voltage control scheme for three-port energy router based on instantaneous energy balance[J]. Proceedings of IEEE Energy Conversion Congress and Exposition(ECCE), 2016:1-7.
[5]	高帅, 张兴, 赵文广, 等. 双有源桥DC-DC变换器最小回流功率控制策略[J]. 电气工程学报, 2019,14(2):24-29.
	Gao Shuai, Zhang Xing, Zhao Wenguang, et al. Minimum reactive power control strategy for dual active bridge DC-DC converter[J]. Journal of Electrical Engineering, 2019,14(2):24-29.
[6]	冯高辉, 赵争鸣, 袁立强. 基于能量平衡的电能路由器综合控制技术[J]. 电工技术学报, 2017,32(14):34-44.
	Feng Gaohui, Zhao Zhengming, Yuan Liqiang. Synthetical control technology of electric energy router based on energy balance relationship[J]. Transactions of China Electrotechnical Society, 2017,32(14):34-44.
[7]	Komurcugil H, Kukrer O. A new control strategy for single-phase shunt active power filters using a Lyapunov function[J]. IEEE Transactions on Industrial Electronics, 2006,53(1):305-312.
[8]	Valderrama G E, Stankovic A M, Mattavelli P. Dissipativity based adaptive and robust control of UPS in unbalanced operation[J]. IEEE Transactions on Power Electronics, 2003,18(4):1056-1062.
[9]	雷涛, 李龙春, 邬岑颖, 等. 双有源桥DC-DC暂态直流偏置分析和抑制策略研究[J]. 电气工程学报, 2018,13(7):8-15.
	Lei Tao, Li Longchun, Wu Cenying, et al. Study of transient DC-DC bias analysis and suppression methods in dual active bridge converter[J]. Journal of Electrical Engineering, 2018,13(7):8-15.
[10]	盛万兴, 李鹏华, 段青, 等. 基于Lyapunov优化方法的含能量路由器的能源集线器能量管理策略研究[J]. 中国电机工程学报, 2019,39(21):6212-6225.
	Sheng Wanxing, Li Penghua, Duan Qing, et al. Research on energy management strategy of energy hub with energy router based on Lyapunov optimization method[J]. Proceedings of the CSEE, 2019,39(21):6212-6225.
[11]	Mao X, Falcones S, Ayyanar R. Energy-based control design for a solid state transformer[C]// Proceedings of IEEE PES General Meeting,Minneapolis,MN,US, 2010:1-7.
