绝缘气体对开关柜内部故障燃弧压力上升的影响*

doi:10.11985/2020.02.002

电气工程学报 ›› 2020, Vol. 15 ›› Issue (2): 11-17.doi: 10.11985/2020.02.002

扫码分享

绝缘气体对开关柜内部故障燃弧压力上升的影响^*

李美^1,²(),王一玮¹,李林¹,郭鹏程¹

1.西安理工大学西北旱区生态水利国家重点实验室西安 710048;
2.常熟开关制造有限公司常熟 215500

收稿日期:2020-01-08 出版日期:2020-06-25 发布日期:2020-07-31
作者简介:李美,女,1986年生,博士,讲师。主要从事电力开关设备在线监测及开关柜内故障电弧的研究工作。E-mail:dl_limei@stu.xjtu.edu.cn
基金资助:
* 国家自然科学基金(51807162);陕西省教育厅科研计划(18JK0566);中国博士后基金项目(2018M641007)

Influence of Insulating Gas on Pressure Rise due to Internal Fault Arcing in Switchgear

LI Mei^1,²(),WANG Yiwei¹,LI Lin¹,GUO Pengcheng¹

1. State Key Laboratory of Eco-hydraulics in Northwest Arid Region of China, Xi’an University of Technology, Xi’an 710048 China;
2. Changshu Switchgear MFG. Co., Ltd., Changshu 215500 China

Received:2020-01-08 Online:2020-06-25 Published:2020-07-31

摘要/Abstract

摘要：

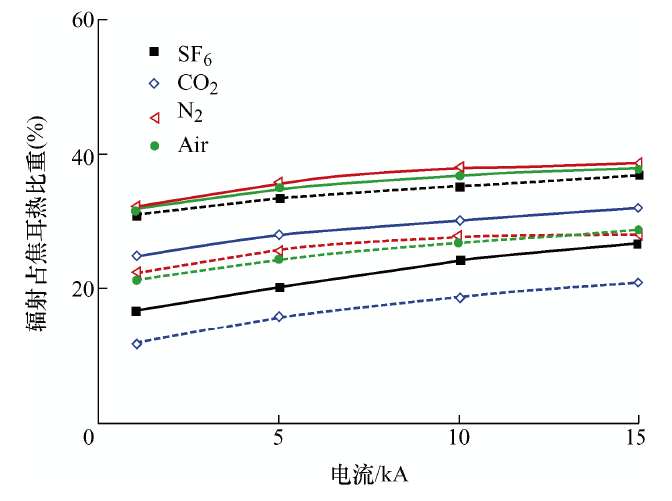

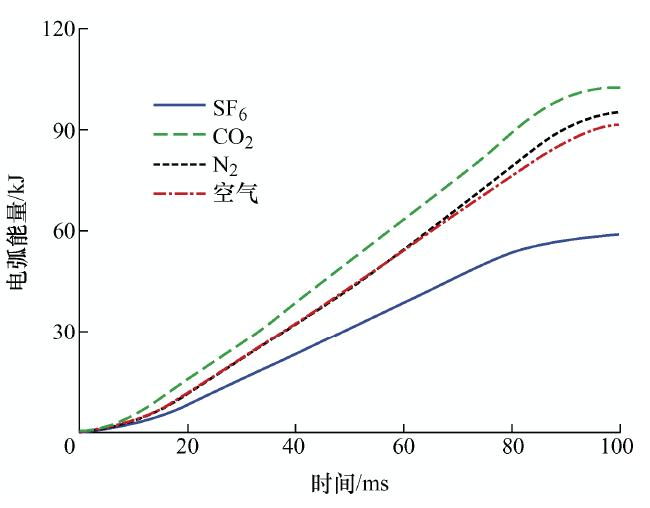

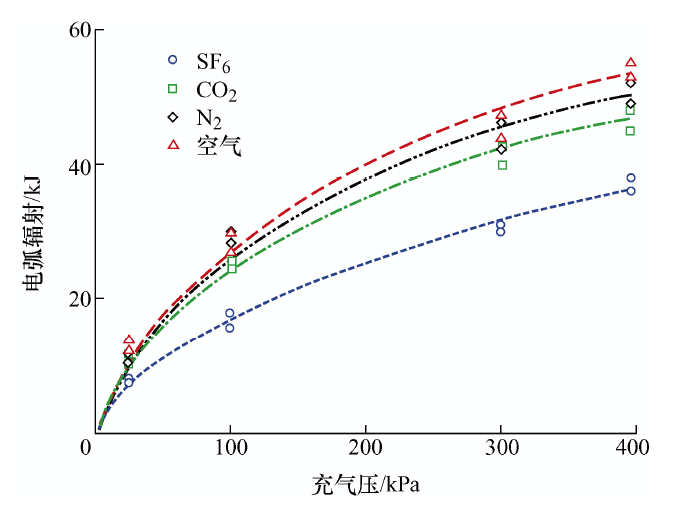

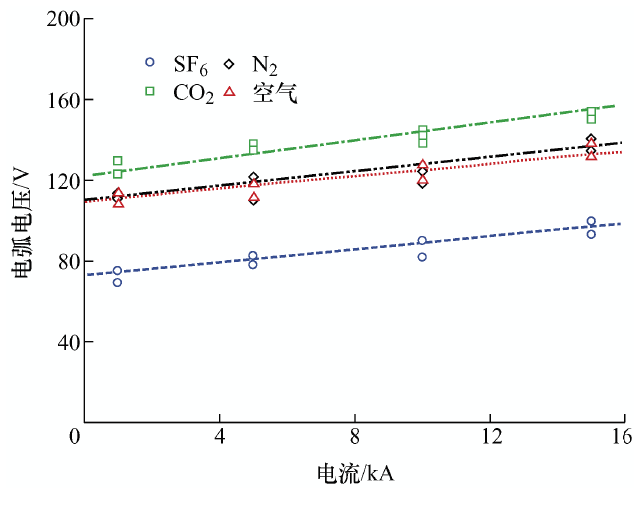

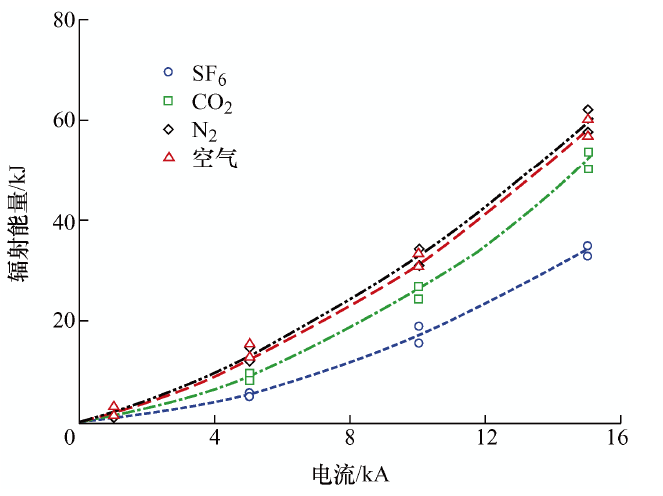

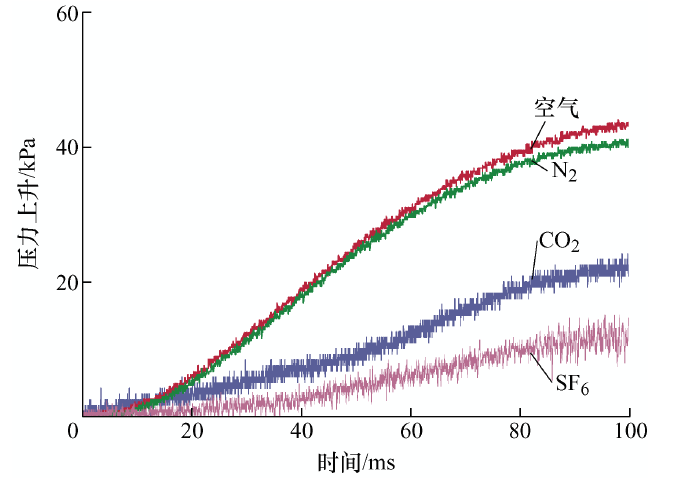

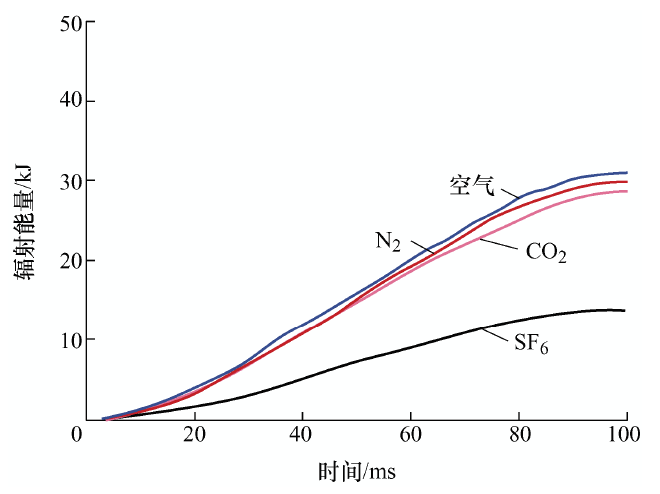

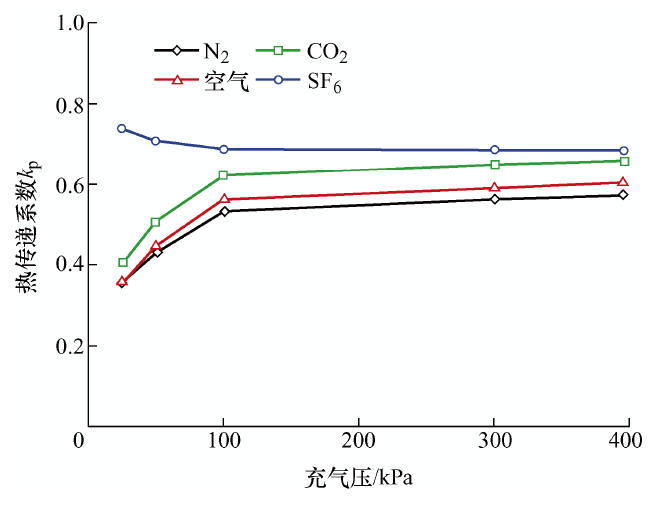

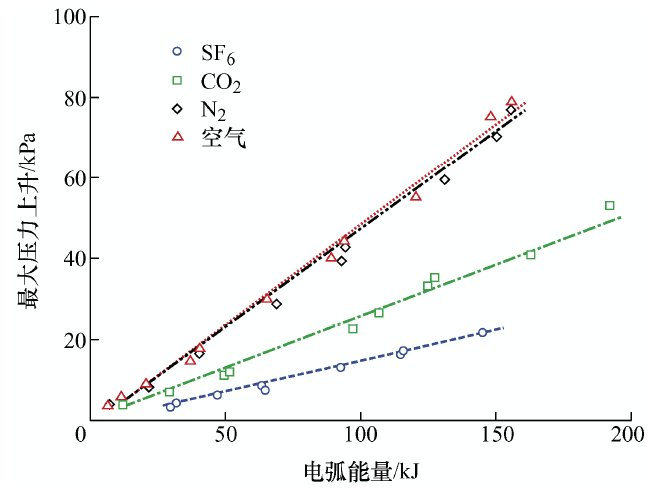

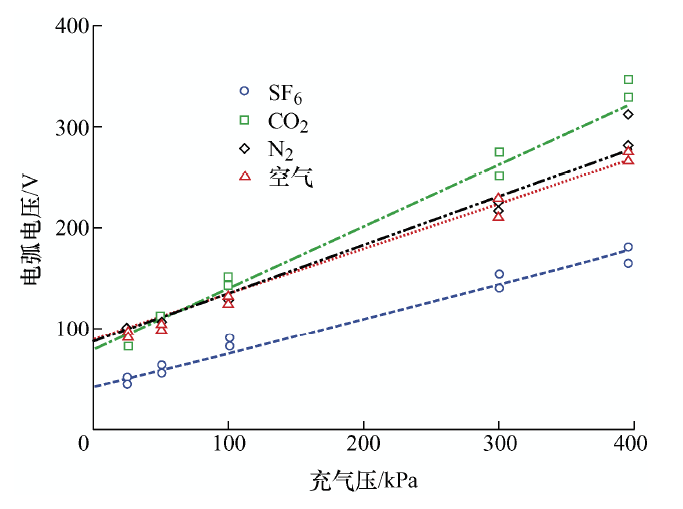

针对密闭开关柜内故障燃弧问题,研究了不同绝缘气体对密闭腔体故障电弧引起的压力特性的影响。比较分析了空气、SF₆、CO₂和N₂四种不同绝缘气体情况下的压力上升、电弧电压、电弧注入能量和辐射能量的变化。基于标准计算方法计算了热传递系数,并定量分析了不同绝缘气体故障电弧的热传递系数变化规律。结果表明,相同电弧能量注入情况下,SF₆引起的压力上升最小,而空气的则最高;最大压力上升和注入的电弧能量几乎成线性增长关系;对于同一电流,CO₂的电弧电压最高,而SF₆的则最低;随着充气压增大,SF₆电弧辐射占焦耳热比重增大;而对于CO₂、N₂和空气,辐射占焦耳热比重反而趋于减小。随着充气压减小,空气、CO₂和N₂的热传递系数都趋于减小,而SF₆的热传递系数则趋于增大。

关键词: 开关柜, 故障燃弧, 压力上升, 绝缘气体

Abstract:

In view of the issue on fault arcing in an enclosed switchgear, the influence of different insulating gases on pressure characteristic due to fault arc in an enclosed tank is investigated experimentally. The developments in pressure rise, arc voltage, injected arc electrical energy and radiation energy are compared and analyzed under the condition of air, SF₆, CO₂ and N₂. With the thermal transfer coefficient determined based on standard calculation method, the variation of thermal transfer coefficient is analyzed quantitatively for different insulating gases. The results show that the pressure rise is lowest if SF₆ is used as filling gas and highest for air at the same arc electrical energy. The maximum pressure rise almost increases linearly with injected arc electrical energy. Regarding arc voltage, it is highest for CO₂ whereas is lowest for SF₆at the same current. As the filling pressure rises, the fraction of arc radiation to input Joule heating increases for SF₆while it tends to fall in the case of CO₂, N₂ and air instead. As the filling pressure decreases, the thermal transfer coefficient for air, CO₂ and N₂all reduces. Inversely, it tends to increase in SF₆.

Key words: Switchgear, fault arcing, pressure rise, insulating gas

中图分类号:

TM591

李美, 王一玮, 李林, 郭鹏程. 绝缘气体对开关柜内部故障燃弧压力上升的影响^*[J]. 电气工程学报, 2020, 15(2): 11-17.

LI Mei, WANG Yiwei, LI Lin, GUO Pengcheng. Influence of Insulating Gas on Pressure Rise due to Internal Fault Arcing in Switchgear[J]. Journal of Electrical Engineering, 2020, 15(2): 11-17.

图/表 13

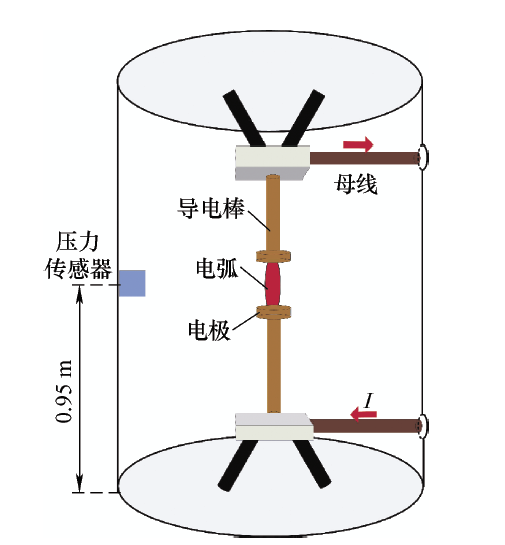

图1

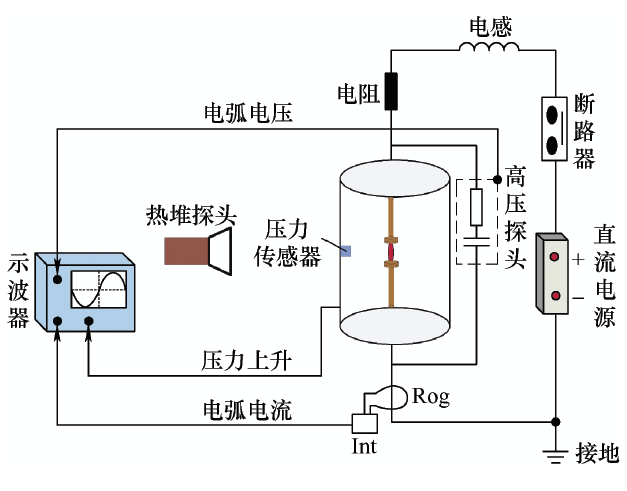

图2

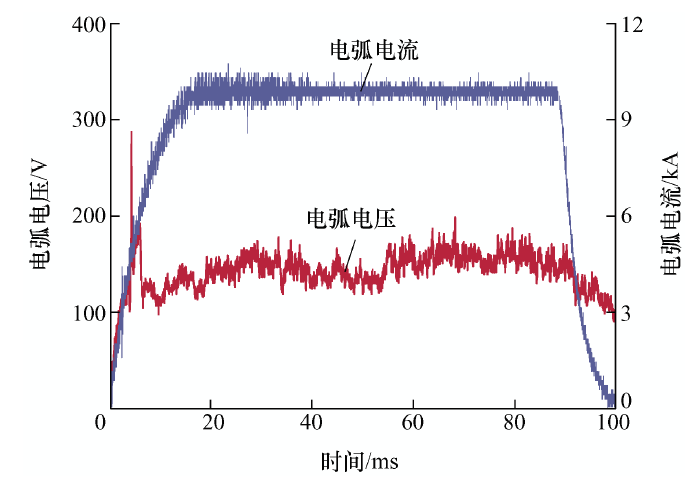

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

参考文献 18

[1]	阮江军, 黎鹏, 黄道春, 等. 中压开关柜内部短路燃弧热-力效应研究综述[J]. 高电压技术, 2018,44(10):3340-3351.
	Ruan Jiangjun, Li Peng, Huang Daochun, et al. Review on thermal-mechanical effects research of MV switchgear due to internal short circuit arcing[J]. High Voltage Eng- ineering, 2018,44(10):3340-3351.
[2]	张湛, 杨光, 张峰. 基于Hilbert-Huang变换与支持向量机的障电弧检测研究[J]. 电气工程学报, 2017,12(7):26-32.
	Zhang Zhan, Yang Guang, Zhang Feng. Research of arc fault detecting based on Hilbert-huang transformation and support vector machine[J]. Journal of Electrical Enginee- ring, 2017,12(7):26-32.
[3]	丁心志, 刘柱揆, 严跃, 等. 电弧光光谱成分特性及其应用分析[J]. 电气工程学报, 2015,10(5):75-81.
	Ding Xinzhi, Liu Zhukui, Yan Yue, et al. Analysis of characteristics and application for arc spectral compo- nents[J]. Journal of Electrical Engineering, 2015,10(5):75-81.
[4]	Yokomizu Y, Ochiai R, Matsumura T. Electrical and thermal conductivities of high-temperature CO₂-CF₃I mixture and transient conductance of residual arc during its extinction process[J]. Journal of Physics D:Applied Physics, 2009,42(21):215204.
[5]	Uchii T, Hoshina Y, Miyazaki K, et al. Development of 72 kV class environmentally-benign CO₂ gas circuit breaker model[J]. IEEJ Transactions on Power and Energy, 2004(124):476-484.
[6]	Grant D M. Comparative interruption studies of gas-blasted arcing SF₆/N₂ and SF₆/hemixtures[C]// 4th International Conference on Gas Discharges and Their Applications,Swansea,UK:CCSD, 1976(1):48-51.
[7]	Anantavanich K. Calculation of pressure rise in electrical installations due to internal arcs considering SF₆-air mixtures and arc energy absorbers[D]. Germany:RWTH Aachen University, 2010.
[8]	Dasbach A, Pietsch G J. Calculation of pressure waves in substation buildings due to arcing faults[J]. IEEE Transactions on Power Delivery, 1990,5(4):1760-1765.
[9]	Friberg G, Pietsch G J. Calculation of pressure rise due to arcing faults[J]. IEEE Transactions on Power Delivery, 1999,14(2):365-370.
[10]	Tanaka S I, Miyagi T, Ohtaka T, et al. Influence of electrode material on pressure-rise due to arc in a closed chamber[J]. Electrical Engineering in Japan, 2011,174(4):9-18.
[11]	熊泰昌. 高压开关柜防护内部电弧故障的结构强度计算与试验研究[J]. 上海电器技术, 2002,3(3):3-8.
	Xiong Taichang. Strength calculation and test research of high-voltage switchgear against internal arc faults[J]. Shanghai Electric Technology, 2002,3(3):3-8.
[12]	Iwata M, Anantavanich K, Pietsch G J. Influence of arc current on fraction k_p of electric arc energy leading to pressure rise in a closed container[C]// 17th International Conference on Gas Discharges and Their Applications. Cardiff,UK:University of Liverpool, 2008:189-192.
[13]	蔡彬, 陈德桂, 吴伟光, 等. 开关柜耐受最大冲击载荷的冲击动力学研究[J]. 中国电机工程学报, 2005,25(4):124-130.
	Cai Bin, Chen Degui, Wu Weiguang, et al. Research of shock dynamics on withstanding the maximal shock load in switchgear assemblies[J]. Proceedings of the CSEE, 2005,25(4):124-130.
[14]	黎鹏, 阮江军, 黄道春, 等. 封闭容器内部短路燃弧特性及压力升试验分析[J]. 高电压技术, 2019,45(3):940-949.
	Li Peng, Ruan Jiangjun, Huang Daochun, et al. Exp- erimental analysis of arcing characteristic and pressure rise due to internal short-circuit in a closed container[J]. High Voltage Engineering, 2019,45(3):940-949.
[15]	Bjortuft T R, Granhaug O, Hagen S T, et al. Internal arc fault testing of gas insulated metal enclosed MV switch- gear[C]// 18th International Conference and Exhibition on Electricity Distribution. Turin,Italy:CIRED, 2005:1-5.
[16]	Konig D, Facklam T. Pressure rise in metal-enclosed SF₆-insulated high voltage switchgear of single-phase enclosure type due to internal arc. Evaluation of various international test results and study of calculation procedure[J]. Electra, 1984(93):25-52.
[17]	Bernard G. Electrical faults mastery in high voltage SF₆ insulated substations[J]. Revue Générale de L'électricité, 1982(4):231-249.
[18]	Kuwahara H, Yoshinaga K, Sakuma S, et al. Fundamental investigation on internal arcs in SF₆ gas-filled enclo- sure[J]. IEEE Transactions on Power Apparatus and Systems, 1982,101(10):3977-3987.
