基于多智能体的微网运行决策支持系统结构研究

doi:10.11985/2016.08.005

摘要/Abstract

摘要：

微网的经济、稳定运行依靠能量协调系统,微网运行的安全性和可靠性要靠微网运行决策支持系统来保证。微网运行一旦发生故障,要求系统能够快速进行故障诊断和故障恢复,避免因故障问题给微网运行带来重大损失。结合微网的安全、可靠、经济运行需要解决的问题,本文设计了基于多智能体技术的微网运行决策支持系统功能框架,并借助JADE平台搭建决策支持系统软件框架。它能够在微网正常运行状态时,决策出微网的经济运行方式,并给出经济评估报告;在微网发生故障时,设计的结合专家系统的故障诊断智能体能够准确、快速进行故障诊断和分析,故障恢复智能体则实现故障快速恢复;最后以算例形式验证了微网运行决策支持系统中故障诊断智能体的功能。

关键词: 微网, 决策支持系统, 故障诊断, 多智能体

Abstract:

Energy coordination is used to ensure economic and stable operation in micro-grid. The safety, economic and reliability operation in micro-grid depend on the decision support system(DSS). Once the micro-grid occurred fault, the decision support system can diagnose fault and recover quickly, to avoid great losses due to fault in micro-grid operation. Combined the problems to be solved such as security, stability, and economic operation of micro-grid, the structure of decision support system based on multi-agent is designed in the paper and with the assitance of JADE platform building the software framework. The DSS of micro-grid operation can make out economic operation way when micro-grid in normal operation condition, and give economic assessment. When failures happen in micro-grid, the fault diagnosis agent combined with expert system can analysis the fault accurately and quickly. Then, failures recovery agent can recover the failure. Lastly, the DSS making process decision in network failure in the form of a numerical example is expounds.

Key words: Micro-grid, decision support system, fault diagnosis, multi-agent

中图分类号:

TM73

徐影凤,汪海宁. 基于多智能体的微网运行决策支持系统结构研究[J]. 电气工程学报, 2016, 11(8): 30-36.

Yingfeng Xu,Haining Wang. Structure of Decision Support System Based on Multi-Agent for Micro-Grid Operation[J]. Journal of Electrical Engineering, 2016, 11(8): 30-36.

图/表 7

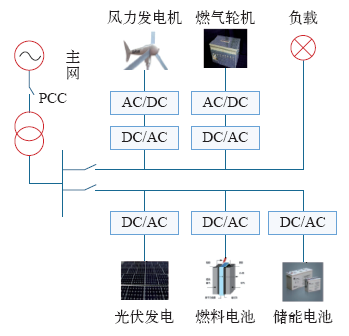

图1

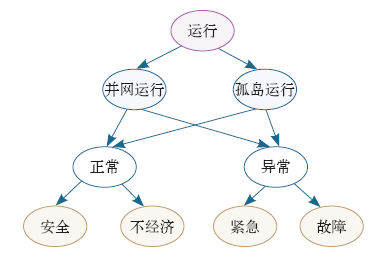

图2

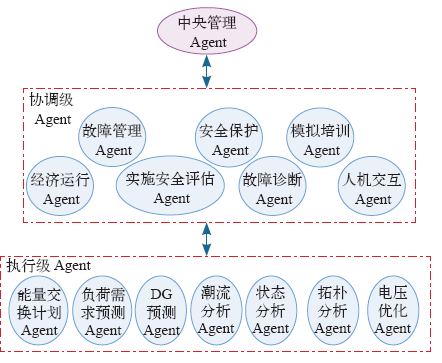

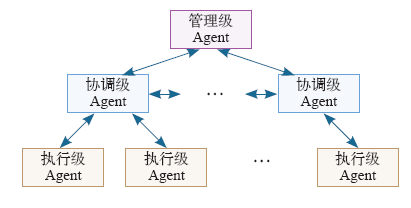

图3

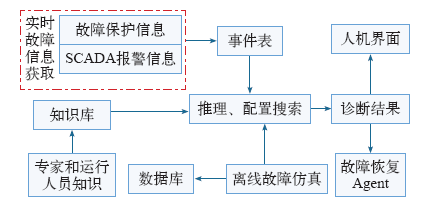

图4

表

图5

图6

参考文献 19

[1]	Tan K T, So P L, Chu Y C , et al. Coordinated control and energy management of distributed generation inverters in a micro-grid[J]. IEEE Transactions on Power Delivery, 2013,28(2):704-713.
[2]	茆美琴, 金鹏, 溪媛媛 , 等. 基于多因子和合同网协调机制微网多Agent混和能量管理方法[J]. 中国电机工程学报, 2014,34(31):5542-5551.
	Mao Meiqin, Jin Peng, Xi Yuanyuan , et al. Method of multi-agent hybrid energy management for micro-grid based on multi-factor evaluation and contract net protocol cooperative mechanism[J]. Proceedings of the CSEE, 2014,34(31):5542-5551.
[3]	吴琼, 刘文颖, 杨以涵 . 智能型电网调度决策支持系统的开发与实现[J]. 电力系统自动化, 2006,30(12):79-83.
	Wu Qiong, Liu Wenying, Yang Yihan . Development and application of intelligent decision support system for power network dispatching[J]. Automation of Electric Power Systems, 2006,30(12):79-83.
[4]	陈文伟 . 决策支持系统及其开发[M]. 北京: 清华大学出版社, 2014.
[5]	陈曦, 王执铨 . 决策支持系统理论与方法研究综述[J]. 控制与决策, 2006,21(9):961-968.
	Chen Xi, Wang Zhiquan . Overview of theory and methods of decision support systems[J]. Control and Decision, 2006,21(9):961-968.
[6]	张伯明, 吴文传, 孙宏斌 , 等. 电网控制中心安全预警和决策支持系统设计[J]. 电力系统自动化, 2006,30(6):1-5.
	Zhang Boming, Wu Wenchuan, Cai Bin , et al. Power grid on-line security and stability analysis and forewarning system[J]. Automation of Electric Power Systems, 2006,30(6):1-5.
[7]	马骞 . 电网调度决策支持系统的研究[D]. 北京:华北电力大学, 2005.
[8]	吴琼 . 电网智能调度决策支持系统的研究与实现[D]. 北京:华北电力大学, 2007.
[9]	马骞, 杨以涵, 郭金智 . 基于本体的调度决策支持软件系统的设计[J]. 电力系统自动化, 2004,28(20):57-61.
	Ma Qian, Yang Yihan, Guo Jinzhi . Design of ontology-based decision support software system for grid dispatching[J]. Automation of Electric Power Systems, 2004,28(20):57-61.
[10]	邓虹, 沈丹涛, 杨秀 , 等. 多代理技术在微网保护中的实现[J]. 华东电力, 2014,42(8):1520-1526.
	Deng Hong, Shen Dantao, Yang Xiu , et al. Implemen-tation of multi-agent technology in microgrid protection[J]. East China Electric Power, 2014,42(8):1520-1526.
[11]	赵川 . 多智能体型电网调度决策支持系统[J]. 电网技术, 2006,30(22):59-65.
	Zhao Chuan . Grid dispatching decision-making support system based on multi-agent[J]. Power System Technology, 2006,30(22):59-65.
[12]	曾鸣 , 等. 面向智能电网的需求侧管理决策支持系统[J]. 华东电力, 2011,39(2):176-179.
	Zeng Ming , et al. Demand side management technolo-gies and decision support system for smart grid[J]. East China Electric Power, 2011,39(2):176-179.
[13]	杨旭升, 盛万兴, 王孙安 , 等. 多Agent电网运行决策支持系统体系结构研究[J]. 电力系统自动化, 2002,26(18):45-49.
	Yang Xusheng, Sheng Wanxing, Wang Sunan , et al. Study on multi-agent architecture based decision support system for power system operation[J]. Automation of Electric Power Systems, 2002,26(18):45-49.
[14]	Zaborszky J . Operation of the large interconnected power system by decision and control[J]. IEEE Trans. on Power Apparatus and Systems, 1980,99(1):37-45.
[15]	赵伟, 白晓民, 丁剑 , 等. 基于协同式专家系统及多智能体技术的电网故障诊断方法[J]. 中国电机工程学报, 2006,26(6):1-8.
	Zhao Wei, Bai Xiaomin, Ding Jian , et al. A new fault diagnosis approach of power grid based on cooperative expert system and multi-agent technology[J]. Proceedings of the CSEE, 2006,26(6):1-8.
[16]	高振兴, 郭创新, 俞斌 , 等. 基于多源信息融合的电网故障诊断方法研究[J]. 电力系统保护与控制, 2011,39(6):17-23.
	Gao Zhenxing, Guo Chuangxin, Yu Bin , et al. Study of a fault diagnosis approach for power grid with information fusion based on multi-data resources[J]. Power System Protection and Control, 2011,39(6):17-23.
[17]	徐岩, 张锐, 霍福广 , 等. 基于MAS信息融合的电网故障诊断[J]. 电力科学与工程, 2012,28(9):24-28.
	Xu Yan, Zhang Rui, Huo Fuguang , et al. Information fusion fault diagnosis in power networks based on MAS[J]. Electric Power Science and Engineering, 2012,28(9):24-28.
[18]	边莉 . 电网故障诊断的智能方法综述[J]. 电力系统保护与控制, 2014,42(3):146-153.
	Bian Li . Review on intelligence fault diagnosis in power networks[J]. Power System Protection and Control, 2014,42(3):146-153.
[19]	刘道兵, 顾雪平, 李海鹏 . 电网故障诊断的完全解析模型[J]. 中国电机工程学报, 2011,31(34):85-92.
	Liu Daobing, Gu Xueping, Li Haipeng . A complete analytic model for fault diagnosis of power systems[J]. Proceedings of the CSEE, 2011,31(34):85-92.

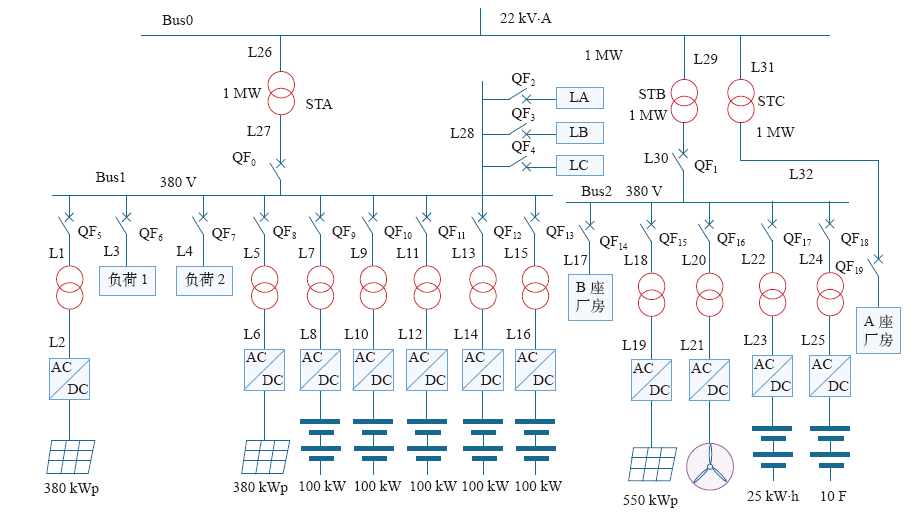

预设故障	求解结果	输出故障位置与结果
L1,L9	G{s(0 1 0 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1) r(1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0) c(1 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0)}	L1、L9区段故障,导致L3负载路段跳开,断路器QF₅、QF₁₀跳开,线路保护正常动作
L18	G{s(1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1) r(1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1) c(0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0)}	L18区段故障,断路器QF₁₅跳开,线路保护正常动作
