开式绕组无刷电动机换相转矩脉动抑制研究 *

doi:10.11985/2019.04.001

摘要/Abstract

摘要：

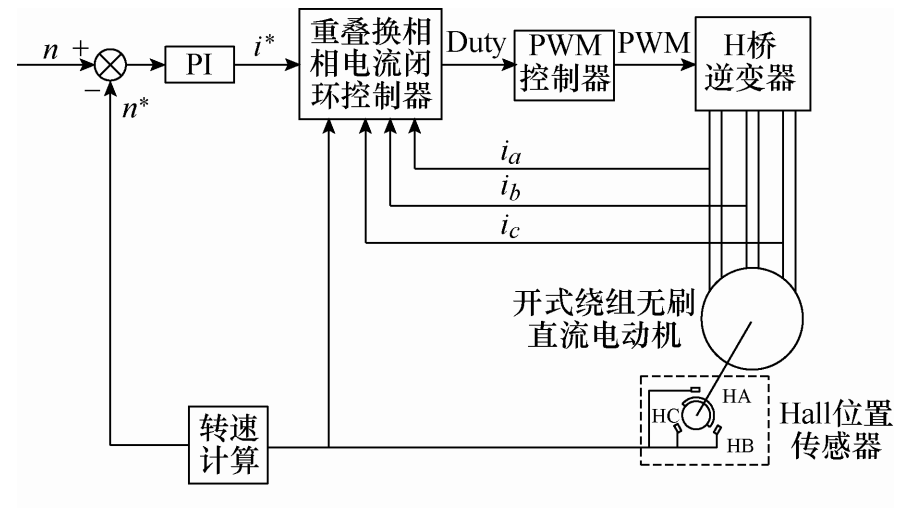

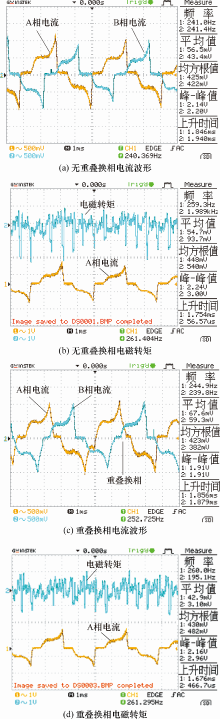

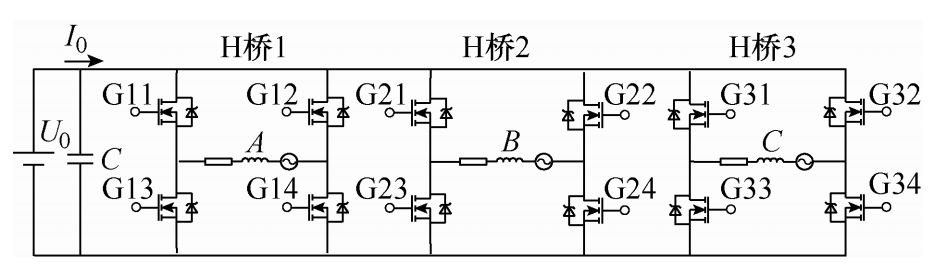

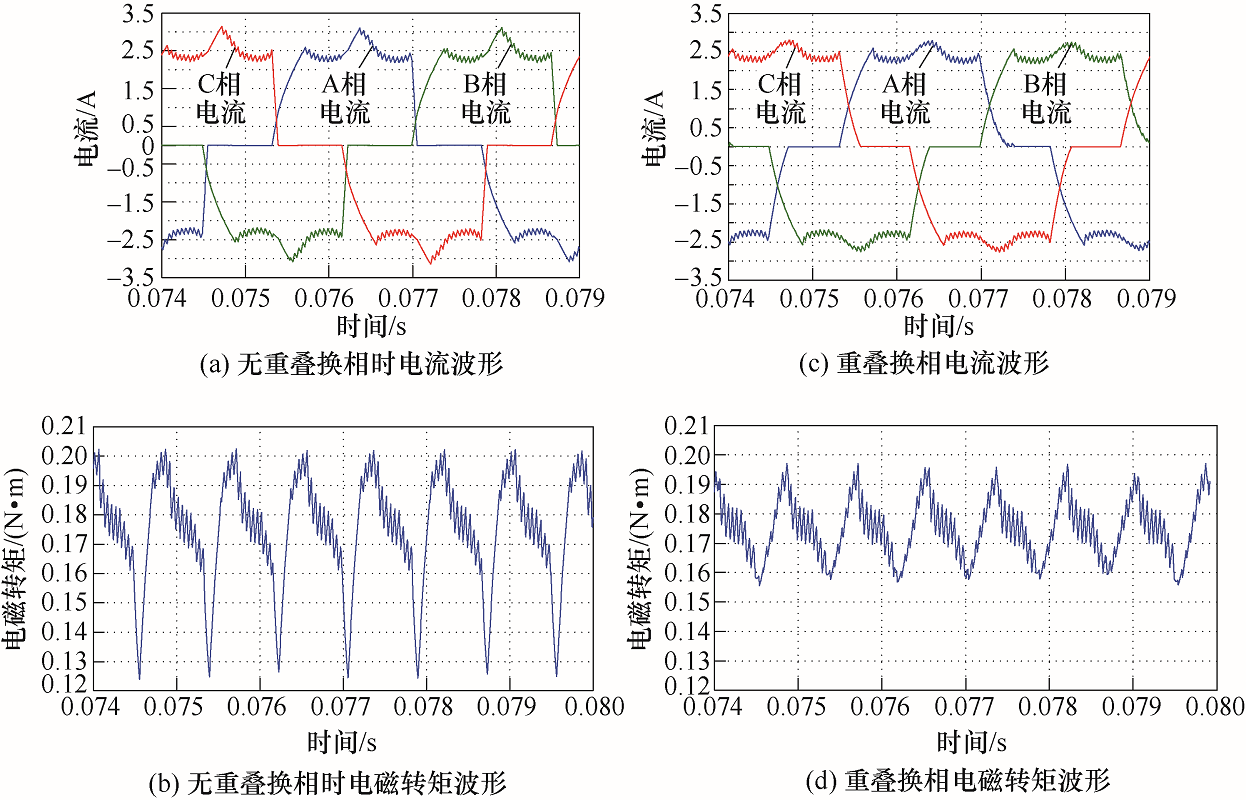

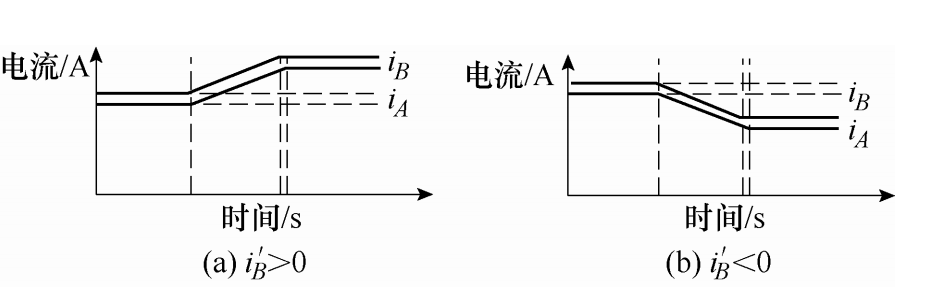

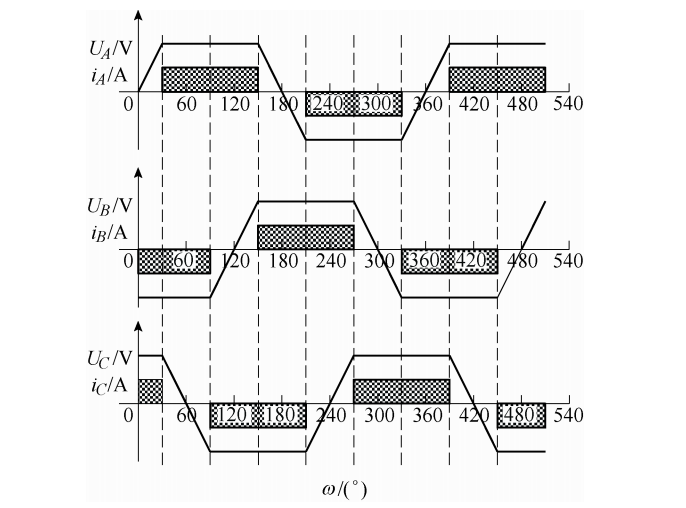

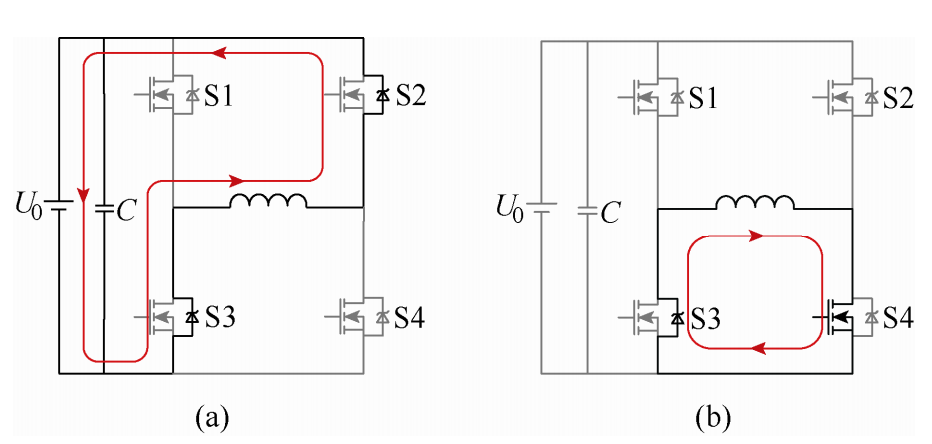

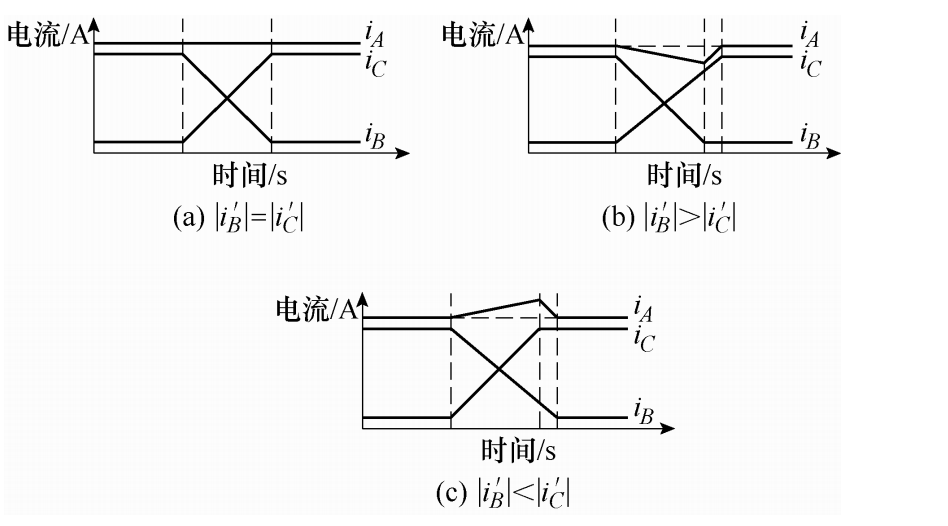

开式绕组无刷直流电动机无中性点,各相绕组电气隔离,可实现各相绕组的独立控制。介绍了开式绕组无刷直流电动机的数学模型,分析了互感作用下各相电流变化之间的影响,以及同一母线供电时续流对非换相相电流的影响;对开式绕组无刷直流电动机的换相过程电流进行分析,得出在理想反电势下关断相和导通相电流变化速率相等可保证非换相相电流不变,从而保持电磁转矩不变。提出了采用重叠换相相电流闭环控制方法来抑制换相转矩脉动,推导出重叠换相法关断相施加电压和延迟关断时间公式,利用滑模观测器观测反电势并计算得到电磁转矩。Matlab仿真和试验结果验证了重叠换相相电流闭环控制可以有效抑制开式绕组无刷直流电动机换相转矩脉动。

关键词: 开式绕组, 无刷直流电动机, 换相转矩脉动, 互感, 重叠换相

Abstract:

The open winding brushless DC motor has no neutral point, and the phase windings are electrically isolated, which can realize independent control of each phase. Firstly, the mathematical model of open winding brushless DC motor is introduced, the influence of each phase caused by the mutual inductance and the impact of the diode freewheeling for non-commutation phase with the same bus power supply are analyzed. Secondly, the current commutation process of open winding brushless DC motor during the commutation period is analyzed. It is concluded that if the turn-off and the conduction phase current with the same change rate, under the ideal Back EMF condition, the non-commutation phase current is constant, then the electromagnetic torque remains the same. Thirdly, the working principle and process of overlapping commutation with phase current closed-loop control are given, the voltage applied on turn-off phase and delay shutdown time formulas in overlapping commutation are derived, electromagnetic torque is calculated by the Back EMF which is observed by sliding mode observer. Finally, the method of overlapping commutation with phase current closed-loop control are carried on the Matlab simulation analysis, the experimental results indicate that the control method can realize the commutation torque ripple suppression of open winding brushless DC motor.

Key words: Open winding, brushless DC motor, commutation torque ripple, mutual inductance, overlapping commutation

中图分类号:

TM351

罗玲,黄其,张远. 开式绕组无刷电动机换相转矩脉动抑制研究 ^*[J]. 电气工程学报, 2019, 14(4): 1-9.

Ling LUO,Qi HUANG,Yuan ZHANG. Research on Commutation Torque Ripple Suppression of Open Winding Brushless DC Motor[J]. Journal of Electrical Engineering, 2019, 14(4): 1-9.

图/表 14

图1

图2

图3

图4

图5

表1

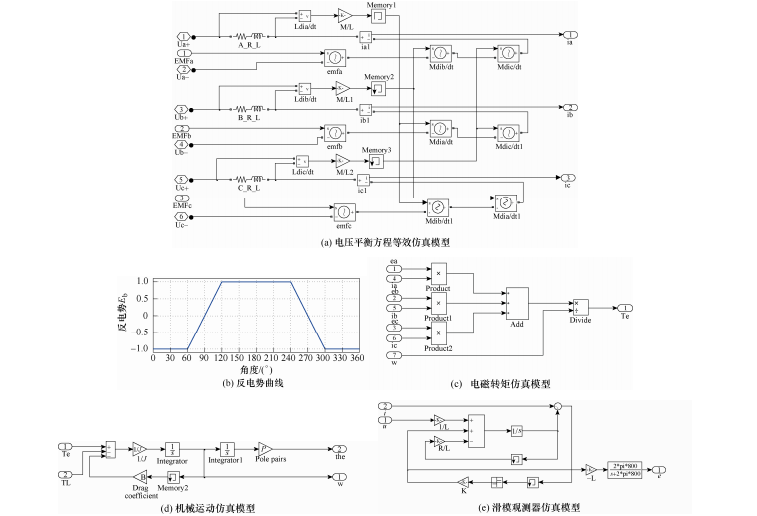

图6

图7

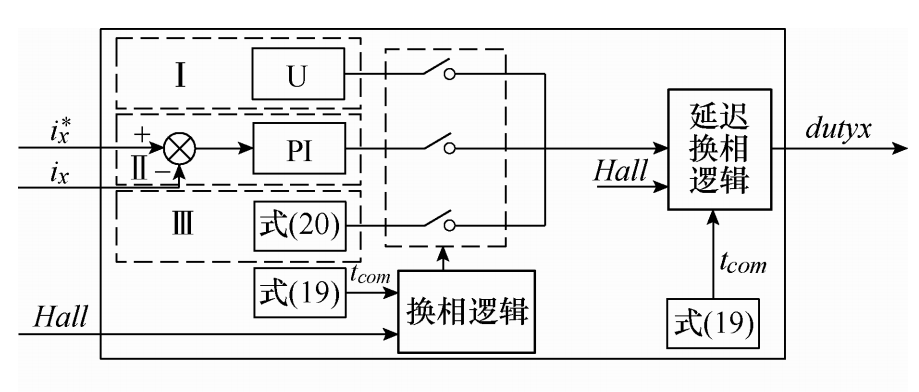

图8

表2

图9

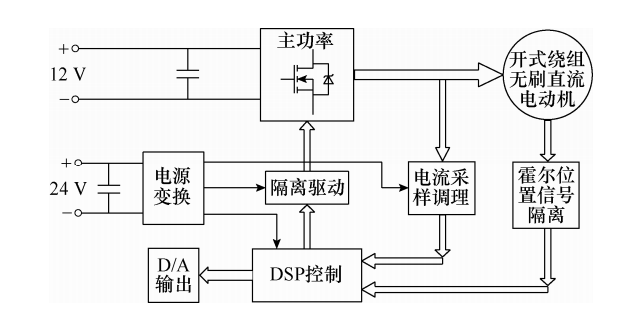

图10

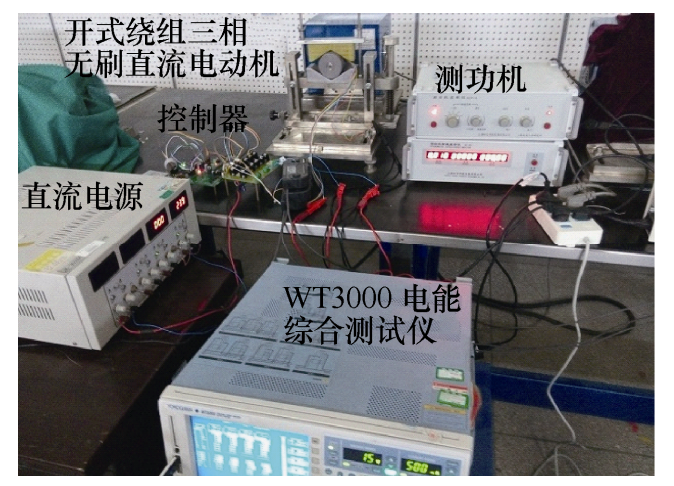

图11

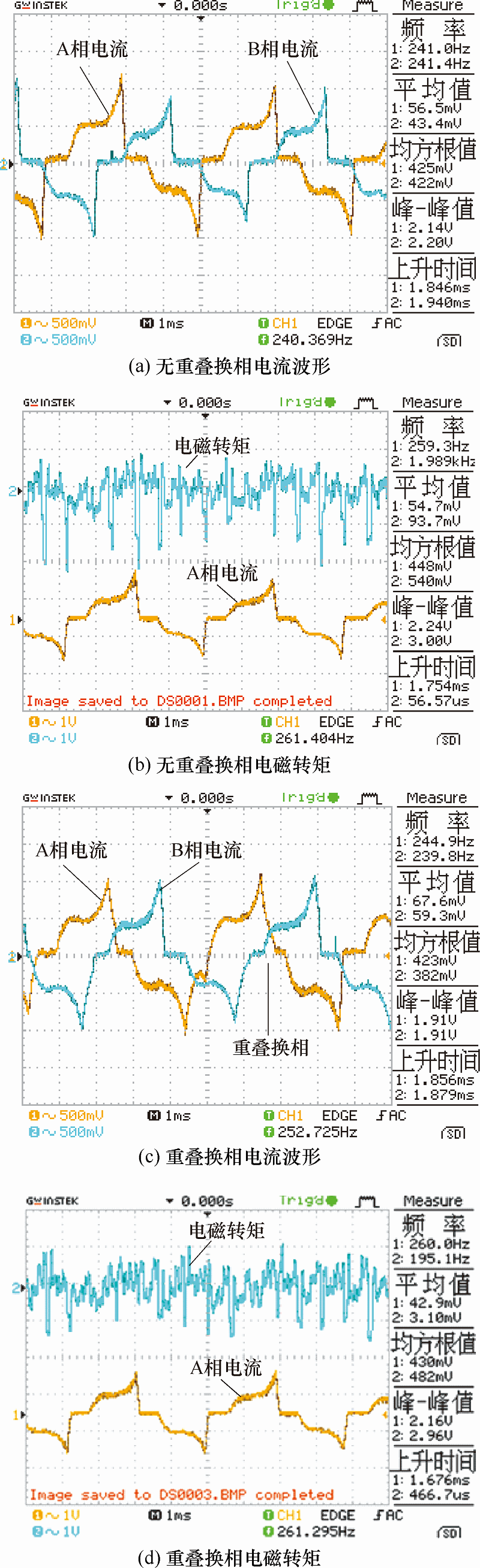

图12

参考文献 17

[1]	谭建成 . 永磁无刷直流电机技术[M]. 北京:机械工业出版社, 2011.
[2]	堵杰, 孙承波, 陈国呈 . 无刷直流电动机换相过程中续流对电压和电流的影响[J]. 电工技术杂志, 2002(3):5-8.
	Du Jie, Sun Chengbo, Chen Guocheng . Analysis of influence of commutation freewheeling on the voltage and current of BLDCM[J]. SElectrotechnical Journal, 2002(3):5-8.
[3]	石坚, 李铁才 . 一种消除无刷直流电动机换相转矩脉动的PWM调制策略[J]. 中国电机工程学报, 2012,32(24):110-117.
	Shi Jian, Li Tiecai . A PWM strategy to eliminate commutation torque ripple of brushless DC motors[J]. Proceedings of the CSEE, 2012,32(24):110-117.
[4]	王大方, 卜德明, 朱成 , 等. 一种减小无刷直流电机换相转矩脉动的调制方法[J]. 电工技术学报, 2014,29(5):160-166.
	Wang Dafang, Bu Deming, Zhu Cheng , et al. A modulation method to decrease commutation torque ripple of brushless DC motors[J]. Transactions of China Electrotechnical Society, 2014,29(5):160-166.
[5]	Chen Wei, Liu Yapeng, Li Xinmin , et al. A novel method of reducing commutation torque ripple for brushless DC motor based on Cuk converter[J]. IEEE Transactions on Power Electronics, 2017,32(7):5497-5508.
[6]	韦鲲, 胡长生, 张仲超 . 一种新的消除无刷直流电动机非导通相续流的PWM调制方式[J]. 中国电机工程学报, 2005,25(7):104-108.
	Wei Kun, Hu Changsheng, Zhang Zhongchao . A novel PWM scheme to eliminate the diode freewheeling of the inactive phase in BLDC motor[J]. Proceedings of the CSEE, 2005,25(7):104-108.
[7]	郝振洋, 胡育文, 黄文新 . 电力作动器中永磁容错电机及其控制系统的发展[J]. 航空学报, 2008,29(1):149-158.
	Hao Zhenyang, Hu Yuwen, Huang Wenxin . Development of fault-tolerant permanent magnet machine and its control system in electro-mechanical actuator[J]. Acta Aeronautica ET Astronautica Sinica, 2008,29(1):149-158.
[8]	刘国海, 程燃, 赵万祥 , 等. 考虑三次谐波抑制的改进型五相永磁电机直接转矩控制[J]. 中国电机工程学报, 2017,37(14):4212-4221.
	Liu Guohai, Cheng Ran, Zhao Wanxiang , et al. Improved direct torque control of five-phase permanent magnet motor based on third-harmonic suppression[J]. Proceedings of the CSEE, 2017,37(14):4212-4221.
[9]	林海, 严卫生, 李宏 . 无刷直流电动机驱动控制容错方案研究[J]. 西安交通大学学报, 2009,43(2):53-57.
	Lin Hai, Yan Weisheng, Li Hong . Inverter fault-tolerant operation of brushless DC motor drives[J]. Journal of Xi’an Jiaotong University, 2009,43(2):53-57.
[10]	Kawabata Y, Nasu M, Nomoto T , et al. High-efficiency and low acoustic noise drive system using open-winding AC motor and two space-vector-modulated inverters[J]. IEEE Trans. on Industry Electronics, 2002,49(4):783-789.
[11]	Huang Qi, Luo Ling, Xue Likun, et al. Research on the characteristics of open winding brushless DC motor[C]// 22nd International Conference on Electrical Machines and Systems (ICEMS),Harbin, 2019: 1881-1886.
[12]	Mu-shin Kwak, Seung-ki Sul . Flux weakening control of an open winding machine with isolated dualinverters[C]// 2007 42nd IAS Annual Meeting,New Orleans, 2007(5):251-255.
[13]	Wang Y, Panda D, Lipo T A , et al. Open-winding power conversion systems fed by half-controlled converters[J]. IEEE Transactions on Power Electronics, 2013,28(5):2427-2436.
[14]	孙丹, 林斌, 周文志 . 开绕组电机系统拓扑及控制技术研究综述[J]. 电工技术学报, 2017,32(4):76-84.
	Sun Dan, Lin Bin, Zhou Wenzhi . An overview of open winding electric machine system topology and control technology[J]. Transactions of China Electrotechnical Society, 2017,32(4):76-84.
[15]	魏佳丹, 周波, 韩楚 , 等. 一种新型绕组开路型永磁电动机起动/发电系统[J]. 中国电机工程学报, 2011,36(31):86-95.
	Wei Jiadan, Zhou Bo, Han Chu , et al. A novel open winding permanent magnetic starter-generator[J]. Proceedings of the CSEE, 2011,36(31):86-95.
[16]	缪仲翠, 党建武, 巨梅 , 等. 基于分数阶滑模观测的感应电机无速度传感器矢量控制[J]. 电机与控制学报, 2018,22(5):84-93.
	Miao Zhongcui, Dang Jianwu, Ju Mei , et al. Induction motor sensorless vector control based on fractional order integral sliding mode observer[J]. Electric Machines and Control, 2018,22(5):84-93.
[17]	黄其, 陈翔, 罗玲 , 等. 电动汽车用永磁同步电机控制器设计[J]. 电机与控制应用, 2019,46(10):84-91.
	Huang Qi, Chen Xiang, Luo Ling , et al. Design of permanent magnet synchronous motor controller for electric vehicle[J]. Electric Machines & Control Application, 2019,46(10):84-91.

绕组	I_i(0)	I_i(∞)	△I_i	E_i	U_i
A	(U_A–E)/R	(U_A–E)/R	0	E	U_A
B	(U_B₁+E)/R	(U_B₂+E)/R	(U_B₂–U_B₁)/R	-E	U_B₂
C	0	(U_C+E)/R	(U_C+E)/R	-E	U_C

参数	数值
额定电压U_N/V	12
额定功率P_N/W	30
额定转速n_N/(r/min)	2 500
额定转矩T_N/(N·m)	0.115
极对数P	6
相电阻R/mH	0.75
相自感L/mH	0.55
相互感M/mH	0.05
反电势系数K_e/(V/rad·s^-1)	0.041 5
转动惯量J/(kg·m²)	4×10^–5
黏滞摩擦因数B/(N·m·s/rad)	1×10^–5
