基于R 2LC 2的中高压多电平UPQC拓扑评估体系

doi:10.11985/2015.11.007

摘要/Abstract

摘要：

构建了一种基于R ²LC ²（可靠、冗余、损耗、特性、成本）的中高压多电平统一电能质量调节器（Unified Power Quality Conditioner,UPQC）拓扑评估体系。选定多种应用于UPQC的多电平拓扑结构类型,建立多电平UPQC拓扑结构的损耗模型、故障模型、仿真模型、冗余模型和器件模型,分别用以分析并形成损耗与拓扑关系、拓扑可靠性、暂稳态特性、系统稳定性、结构与成本关系的评价指标。结合五种评价指标的相互影响关系,建立层次分析模型,定量得到五种评价指标的权重系数,构造成对比较矩阵,计算排序权向量,全面分析多种多电平UPQC拓扑结构的整体性能,实现多电平UPQC拓扑结构的综合准确评估,提供多电平UPQC变流器拓扑结构类型的选择依据。选取级联H桥、模块化多电平变流器和换桥臂多电平变流器为实际应用范例,验证了所提评估体系的可行性。

关键词: 中高压换流器, R ²LC ², 多电平UPQC, 评估体系, 层次分析模型, 换桥臂多电平变流器

Abstract:

The assessment system for medium-high voltage multilevel UPQC topology is constructed based on R ²LC ² (reliability, redundancy, loss, cost, characteristic). After selecting some kinds of unified power quality conditioner (UPQC) topology structure, models are set up including loss model, fault model, simulation model, redundancy model and device model, to analyze and form assessment indexes including relationship between loss and topology, topology reliability, transient and steady-state characteristics, system stability, relationship between structure and cost respectively. Combining reciprocal affection among aforementioned five assessment indexes, hierarchy analysis model is established to quantitatively obtain weight coefficient of assessment indexes, construct pairwise comparison matrices, calculate sequence weight vector and completely analyze ensemble performance of many multilevel UPQC topology structure. Finally, the assessment system realizes comprehensive and accurate assessment of multilevel UPQC topology and provides selecting rules of multilevel UPQC topology types. A real application example uses cascade H bridge, modular multilevel converter (MMC) and alternate-arm multilevel converter (A ²MC) to confirm the practicability of the proposed assessment system.

Key words: Medium-high voltage converter, R ²LC ², multilevel UPQC, assessment system, hierarchy analysis model, A ²MC

中图分类号:

TM46

冯兴田, 孙添添, 马文忠. 基于R ²LC ²的中高压多电平UPQC拓扑评估体系[J]. 电气工程学报, 2015, 10(11): 46-52.

Feng Xingtian, Sun Tiantian , Ma Wenzhong . Assessment System for Medium-High Voltage Multilevel UPQC Topology Based on R ²LC ²[J]. Journal of Electrical Engineering, 2015, 10(11): 46-52.

图/表 5

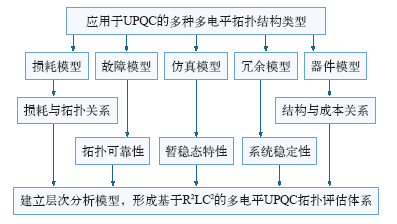

图1

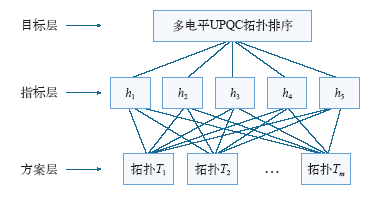

图2

表1

表2

表3

参考文献 20

[1]	Peter Meibom, Rüdiger Barth, Bernhard Hasche , et al. Stochastic optimization model to study the operational impacts of high wind penetrations in ireland[J]. IEEE Transactions on Power Systems, 2011,26(3):1367-1379. doi: 10.1109/TPWRS.2010.2070848
[2]	KHADKIKAR V . Enhancing electric power quality using UPQC: a comprehensive overview[J]. IEEE Transactions on Power Electronics, 2012,27(5):2284-2297. doi: 10.1109/TPEL.2011.2172001
[3]	景巍, 谭国俊, 叶宗彬 . 大功率三电平变频器损耗计算及散热分析[J]. 电工技术学报, 2011,26(2):134-140.
	Jing Wei, Tan Guojun, Ye Zongbin . Losses calculation and heat dissipation snalysis of high-power three-level converters[J]. Transactions of China Electrotechnical Society, 2011,26(2):134-140.
[4]	刘栋, 汤广福, 贺之渊 , 等. 基于面积等效法的模块化多电平换流器损耗分析[J]. 电网技术, 2012,36(4):197-201.
	Liu Dong, Tang Guangfu, He Zhiyuan , et al. Loss evaluation for modular multilevel converter based on equivalent-aera modulation[J]. Power System Technology, 2012,36(4):197-201.
[5]	曾翔君, 张宏韬, 李迎 , 等. 大功率直驱风电系统高效率变流器设计[J]. 中国电机工程学报, 2010,30(30):15-21.
	Zeng Xiangjun, Zhang Hongtao, Li Ying , et al. Design of high-efficiency converters for large direct-drive wind turbines[J]. Proceedings of the CSEE, 2010,30(30):15-21.
[6]	刘建涛, 王治华, 王珂 . 不同结构电压源换流器损耗对比分析[J]. 电力系统保护与控制, 2013,41(6):105-110. doi: 10.7667/j.issn.1674-3415.2013.06.018
	Liu Jiantao, Wang Zhihua, Wang Ke . Comparative analysis of losses of voltage source converters with different structures[J]. Power System Protection and Control, 2013,41(6):105-110. doi: 10.7667/j.issn.1674-3415.2013.06.018
[7]	Schwager L, Tuysuz A, Zwyssig C , et al. Modeling and comparison of machine and converter losses for PWM and PAM in high-speed drives[J]. IEEE Transactions on Industry Applications, 2014,50(2):995-1006. doi: 10.1109/TIA.2013.2272711
[8]	戴珂, 徐晨, 丁玉峰, 等. 改进型 MMC-STATCOM 的建模及分层控制[J]. 电工技术学报, 2013,28(12):44-51.
	Dai Ke, Xü Chen, Ding Yufeng , et al. Research on modeling and hierarchical control for an improved MMC-STATCOM[J]. Transactions of China Electrotechnical Society, 2013,28(12):44-51.
[9]	周雒维, 吴军科, 杜雄 , 等. 功率变流器的可靠性研究现状及展望[J]. 电源学报, 2013,12(1):1-15.
	Zhou Luowei, Wu Junke, Du Xiong , et al. Status and outlook of power converter’s reliability research[J]. Journal of Power Supply, 2013,12(1):1-15.
[10]	徐盛友 . 功率模块IGBT状态监测及可靠性评估方法研究[D]. 重庆:重庆大学, 2013.
[11]	王朝亮, 赵成勇, 许建中 . 模块化多电平换流器的子模块冗余配置计算方法[J]. 电力系统自动化, 2013,37(16):103-107. doi: 10.7500/AEPS201209076
	Wang Chaoliang, Zhao Chengyong, Xu Jianzhong . A method for calculation sub-module redundancy configulations in modular multilevel converter[J]. Automation of Electric Power System, 2013,37(16):103-107. doi: 10.7500/AEPS201209076
[12]	杨珍贵, 周雒维, 杜雄 , 等. 基于器件的结温变化评估风机中参数差异对网侧变流器可靠性的影响[J]. 中国电机工程学报, 2013,33(30):41-49.
	Yang Zhengui, Zhou Luowei, Du Xiong , et al. Effects of different parameters on reliability of grid-side converters based on varied junction temperature of devices in wind turbines[J]. Proceedings of the CSEE, 2013,33(30):41-49.
[13]	梅樱, 孙大南, 韦中利 , 等. 一种基于矢量控制的变流器故障诊断方法[J]. 电工技术学报, 2010,25(3):177-182.
	Mei Ying, Sun Danan Wei Zhongli, et al. An approach to converter faults diagnosis based on vector control[J]. Transactions of China Electrotechnical Society, 2010,25(3):177-182.
[14]	Ghimire P, de Vega A R, Beczkowski S , et al. Improving power converter reliability: online monitoring of high-power IGBT modules[J]. IEEE Industrial Electronics Magazine, 2014,8(3):40-50. doi: 10.1109/MIE.2014.2311829
[15]	Pedro E Melín, José R Espinoza, Luis A Morán , et al. Analysis, design and control of a unified power-quality conditioner based on a current-source topology[J]. IEEE Transactions on Power Delivery, 2012,27(4):1727-1736. doi: 10.1109/TPWRD.2012.2199524
[16]	Guo Wenyong, Xiao Liye, Dai Shaotao . Control and design of a current source united power quality conditioner with fault current limiting ability[J]. IET Power Electronics, 2013,6(2):297-308. doi: 10.1049/iet-pel.2012.0297
[17]	朱晋, 韦统振, 霍群海 . A ²MC VSC-HVDC 系统可靠性分析与冗余度优化研究 [J]. 电工技术学报, 2013,28(增2):319-323.
	Zhu Jin, Wei Tongzhen, Huo Qunhai . Reliability model analysis and redundancy design of A ²MC VSC-HVDC power transmission system [J]. Transactions of China Electrotechnical Society, 2013,28(Sup.2):319-323.
[18]	Kim Dong-Min, Kim Jin-O . Design of emergency demand response program using analytic hierarchy process[J]. IEEE Transactions on Smart Grid, 2012,3(2):635-644. doi: 10.1109/TSG.2012.2188653
[19]	Hideaki Tanaka, Shigeyuki Tsukao, Daiki Yamashita , et al. Multiple criteria assessment of substation conditions by pair-wise comparison of analytic hierarchy process[J]. IEEE Transactions on Power Delivery, 2010,25(4):3017-3023. doi: 10.1109/TPWRD.2010.2048437
[20]	王琛琛, 李永东 . 多电平变换器拓扑关系及新型拓扑[J]. 电工技术学报, 2011,26(1):92-99.
	Wang Chenchen, Li Yongdong . Multilevel converter topologies and two novel topologies[J]. Transactions of China Electrotechnical Society, 2011,26(1):92-99.

标度	含义
1	表示两个因素相比,具有同样重要性
3	表示两个因素相比,一个因素比另一个因素稍微重要
5	表示两个因素相比,一个因素比另一个因素明显重要
7	表示两个因素相比,一个因素比另一个因素强烈重要
9	表示两个因素相比,一个因素比另一个因素极端重要
2,4,6,8	上述两相邻判断的中值
倒数	因素i与j比较的判断为h_ij,则因素j与i比较的判断为h_ji = 1/h_ij

i	1	2	3	4	5
ω_i	（0.630, 0.218, 0.152）	（0.493, 0.311, 0.196）	（0.169, 0.443, 0.387）	（0.210, 0.550, 0.240）	（0.099, 0.364, 0.537）
λ_i	3.108	3.054	3.018	3.018	3.094
CI_i	0.054	0.027	0.009	0.009	0.047
RI_i	0.58	0.58	0.58	0.58	0.58
CR_i	0.093	0.047	0.016	0.016	0.081
