Study of the Model of Electrical Field Distribution of Bundle Conductor After Energized Rime Icing

doi:10.11985/2018.08.008

Abstract

Abstract:

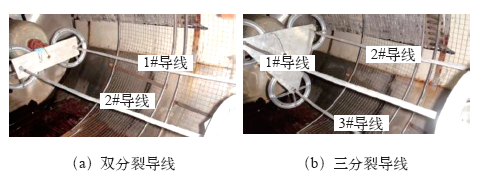

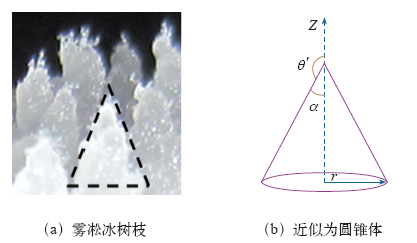

Rime makes conductor surface become extremely rough, growth of ice tree can distort the electrical field seriously and cause harm to safe operation of the power system. Therefore a series test for single, double and triple bundle conductors are implemented in the artificial climate chamber, combining with the rime morphology to establish icing trees’electrical field model, using finite element method for simulation analysis. The results shows that the tip of icing tree will seriously increase the bundled conductor’surface electrical field. Ice-tree growing longer and sharper will make the electric field distorted more serious. Conductor surface electrical field increases fluctuant with the icing electric increasing. More sub-conductors will get lower surface electrical field than others.

Key words: Bundle conductor, energized icing, rime, electric field distribution, finite element method

CLC Number:

TM85

Zhang Man,Ran Junde,Tian Zhihua,Fei Xigang,Zou Can,Hu Fei. Study of the Model of Electrical Field Distribution of Bundle Conductor After Energized Rime Icing[J]. Journal of Electrical Engineering, 2018, 13(8): 43-48.

Figures/Tables 9

Tab.1

Fig.1

Tab.2

Tab.3

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

References 15

[1]	黄新波, 刘家兵, 蔡伟 , 等. 电力架空线路覆冰雪的国内外研究现状[J]. 电网技术. 2008,32(4):23-28.
	Huang Xinbo, Liu Jiabing, Cai Wei , et al. Present research situation of icing and snowing of overhead transmission lines in China and foreign countries[J]. Power System Technology, 2008,32(4):23-28.
[2]	刘振亚 . 特高压电网[M]. 北京: 中国经济出版社, 2005.
[3]	Ndiaye I, Fofana I, Farzaneh M. Contribution to the study of the appearance and development of corona discharges on a surface of ice[C]. IEEE Conference on Electrical and Computer Engineering (IEEE CCECE) Canada, 2003,1:639-642.
[4]	李成榕, 吕玉珍, 崔翔 , 等. 冰雪灾害条件下我国电网安全运行面临的问题[J]. 电网技术, 2008,32(4), 14-22.
	Li Chengrong, Lü Yuzhen, Cui Xiang , et al. Research issues for safe operation of power grid in China under ice-snow disasters[J]. Power System Technology, 2008,32(4), 14-22.
[5]	曾庆禹 . 特高压输电线路电气和电晕特性研究[J]. 电网技术, 2007,31(19):1-8.
	Zeng Qingyu . Study on electric characteristic and corona performance of UHV AC transmission line[J]. Power System Technology, 2007,31(19):1-8.
[6]	阳林, 郝艳捧, 黎卫国 , 等. 输电线路覆冰与导线温度和微气象参数关联分析[J]. 高电压技术, 2010,36(3), 775-781.
	Yang Lin, Hao Yanpeng, Li Weiguo , et al. Relationships among transmission line icing, conductor temperature and local meteorology using grey relational analysis[J]. High Voltage Engineering, 2010,36(3), 775-781.
[7]	胡琴, 舒立春, 蒋兴良 , 等. 不同大气参数及表面状况下导线交流起晕电压的预测[J]. 高电压技术, 2010,36(7):1669-1673.
	Hu Qin, Shu Lichun, Jiang Xingliang , et al. Conductor’s AC corona onset voltage prediction under different atmospheric parameters and conductor surface conditions[J]. High Voltage Engineering, 2010,36(7):1669-1673.
[8]	Phan C L, Laforte J L . The influence of electro-freezing on ice formation on high-voltage DC transmission lines[J]. Cold Regions Science and Technology, 1981,4(1):15-25. doi: 10.1016/0165-232X(81)90027-6
[9]	Farzaneh M, Laforte J L . Ice accretion on energized conductors by AC or DC: a laboratory investigation of ice treeing[J]. International Journal of Offshore and Polar Engineering, 1994,4(1):40-47.
[10]	尤少华, 刘云鹏, 律方成 , 等. 不同海拔下电晕笼分裂导线起晕电压的计算分析[J]. 中国电机工程学报, 2012,32(4):169-177.
	You Shaohua, Liu Yunpeng, Lu Fangcheng , et al. Calculation and analysis on corona onset voltage of corona cage bundle conductors at different altitudes[J]. Proceedings of the CSEE, 2012,32(4):169-177.
[11]	郑天茹 . 特高压输电线路上尖端电晕放电的研究[D]. 山东:山东大学, 2010.
[12]	蒋兴良, 舒立春, 孙才新 . 电力系统污秽与覆冰绝缘[M]. 北京: 中国电力出版社, 2009.
[13]	Trinh N G, Maruvada P S, Poirier B A . Comparative study of the corona performance of conductor bundles for 1200 kV transmission lines[J]. IEEE Transactions on Power Apparatus and Systems, 1974,93(3):940-949.
[14]	舒立春, 李特, 蒋兴良 , 等. 交流电场强度对导线雾凇覆冰特性的影响[J]. 中国电机工程学报, 2012,32(19):140-147.
	Shu Lichun, Li Te, Jiang Xingliang , et al. Influences of AC electric field strength on conductor rime icing performance[J]. Proceedings of the CSEE, 2012,32(19):140-147.
[15]	Gunn R . The electrification of precipitation and thunderstorms[J]. Proceedings of the IRE, 1957(S):1331-1358.

	场强/ (kV/cm)	单导线	双分裂		三分裂
	场强/ (kV/cm)	单导线	1#	2#	1#	2#	3#
冰厚 /mm	0	4.5	4.6	4.5	4.6	4.5	4.6
	5	5.8	5.9	5.8	5.9	5.7	5.8
	10	6.5	6.4	6.2	6.5	6.2	6.4
	15	5.2	5.3	5.1	5.3	5	5.1
	20	4.6	4.7	4.6	4.7	4.6	4.7
冰树枝底径 /mm	0	1.55	1.53	1.56	1.53	1.53	1.54
	5	1.56	1.55	1.54	1.57	1.56	1.53
	10	1.54	1.52	1.56	1.54	1.54	1.54
	15	1.57	1.55	1.58	1.53	1.53	1.56
	20	1.54	1.57	1.55	1.54	1.55	1.55
冰树枝高度 /mm	0	1.45	1.43	1.45	1.44	1.42	1.44
	5	2.54	2.51	2.53	2.53	2.54	2.51
	10	5.15	5.17	5.13	5.17	5.19	5.18
	15	1.83	1.79	1.81	1.82	1.85	1.83
	20	1.01	1.1	1.07	1.07	1.05	1.03
