Study of Passivity-Based Control of Buck Converter Based on Optimal Damping Injection

doi:10.11985/2018.06.002

Abstract

Abstract:

Presently, the damping injection of passivity-based controller of Buck converter can’t make converter acquire excellent performance. Aiming at this problem, an approach is proposed which can be used to calculate and optimize damping injection in the paper. Firstly, the transfer function of the Buck converter system based on passivity-based controller is established, the output current and its overshoot of the system is found when input is step, and finally the range of value of the damping injection is decided by correcting overshoot of the output current response. The damping injection is optimized by using genetic algorithm and the optimal damping injection is obtained. The Buck converter can get excellent performance due to passivity-based controller based on optimal damping injection. The simulation results prove the feasibility of the passivity-based control based on optimal damping injection proposed in this paper.

Key words: Buck converter, passivity-based control, optimal damping injection, genetic algorithm

CLC Number:

TM463

Cui Jian,Wang Juihe. Study of Passivity-Based Control of Buck Converter Based on Optimal Damping Injection[J]. Journal of Electrical Engineering, 2018, 13(6): 7-13.

Figures/Tables 12

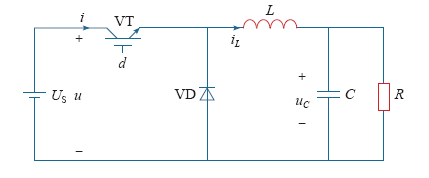

Fig.1

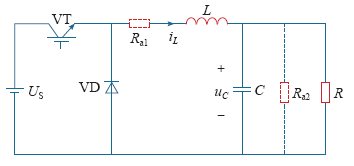

Fig.2

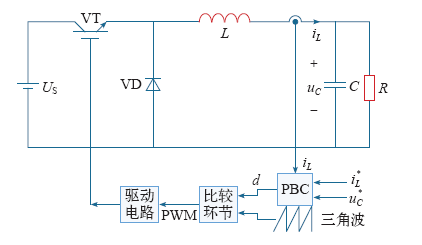

Fig.3

Tab.1

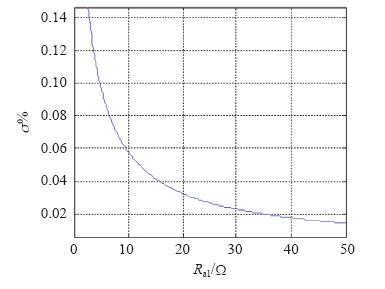

Fig.4

Fig.5

Tab.2

Fig.6

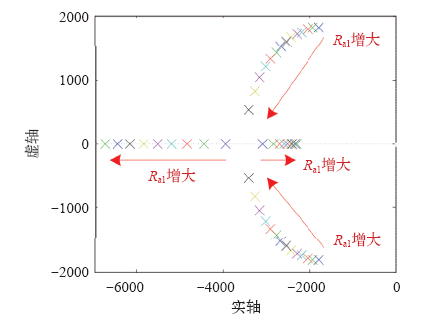

Fig.7

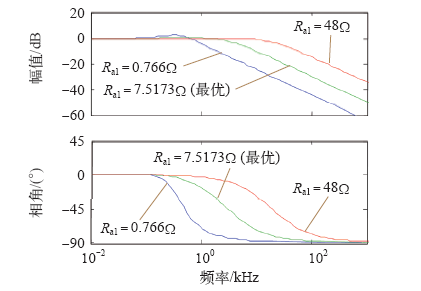

Fig.8

Fig.9

Tab.3

References 7

[1]	刘卓然, 徐海平, 张祖之 , 等. Buck类DC/DC变换器状态反馈精确线性化恒流控制方法[J]. 中国电机工程学报, 2017,37(2):628-634.
	Liu Zhuoran, Xu Haiping, Zhang Zuzhi , et al. A novel scheme of constant current control strategy based on state feedback linearization for Buck-derived DC/DC converter[J]. Proceedings of the CSEE, 2017,37(2):628-634.
[2]	岳小龙, 卓放, 杨书豪 , 等. Buck变换器的多频率矩阵模型及其在分布式供电系统中的应用[J]. 电工技术学报, 2017,32(4):250-259.
	Yue Xiaolong, Zhuo Fang, Yang Shuhao , et al. A multi-frequency matrix model for Buck converter and its application in distributed power system[J]. Transaction of China Electrotechnical Society, 2017,32(4):250-259.
[3]	王久和 . 电能变换器及其无源控制[M]. 北京: 科学出版社, 2014.
[4]	Kwasinski A, Krein P T. Passivity-based control of Buck converters with constant-power loads[C]. Proceedings of IEEE Power Electronics Specialists Conference, Orlando, FL, USA, 2007: 259-265.
[5]	Kwasinski A, Krein P T. Stabilization of constant power load in DC-DC converters using passivity-based control[C]. Proceedings of the International IEEE Telecommunications Energy Conference, Rome, Italy, 2007: 867-874.
[6]	王久和 . 先进非线性控制理论及其应用[M]. 北京: 科学出版社, 2012.
[7]	胡寿松 . 自动控制原理[M]. 北京: 科学出版社, 2013.

参数	数值	参数	数值
U_S/V	24	R/Ω	0.8
U_C^*/V	12	L/mH	0.4
I_L^*/A	15	C/μF	750

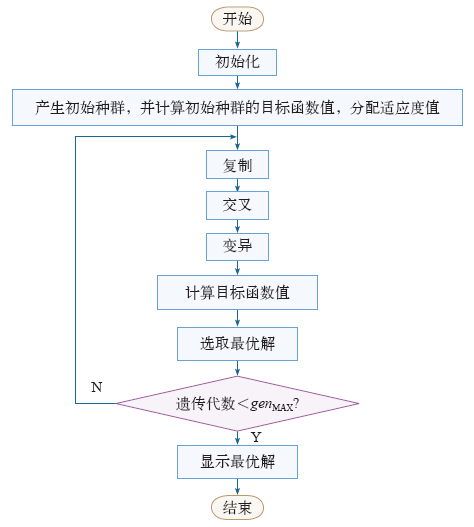

参数	数值	参数	数值
种群大小	10	代沟	1
最大遗传代数	20	交叉概率	0.8
个体长度	6	变异概率	0.01

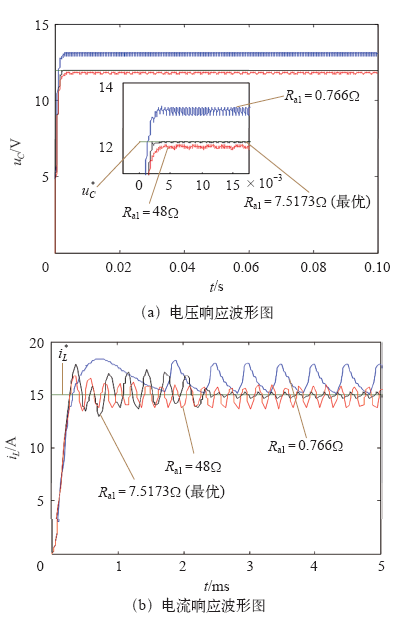

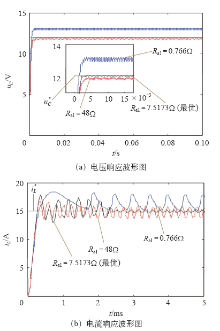

R_a1/Ω	性能指标
R_a1/Ω	σ%	t_r/s	e_ss/V
0.766	23.3	3.5×10^-4	-1
7.513 7	19.3	3×10^-4	0
48	12.3	3×10^-4	0.2
