Dead Zone Compensation Strategy for Inverter of PMSM Based on Direct Axis Voltage Analysis

doi:10.11985/2021.04.007

Abstract

Abstract:

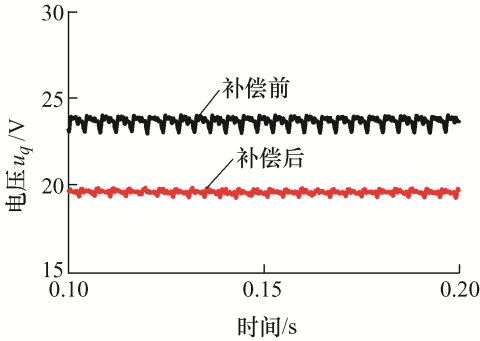

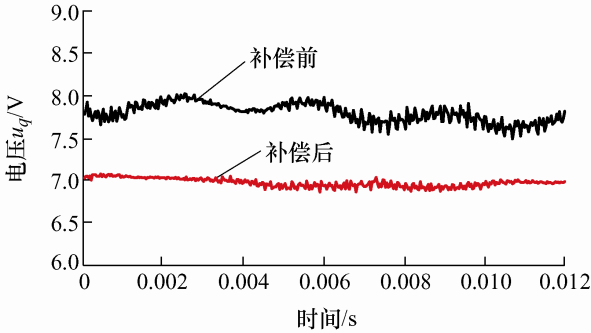

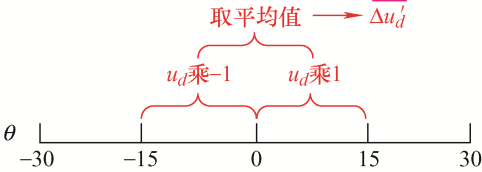

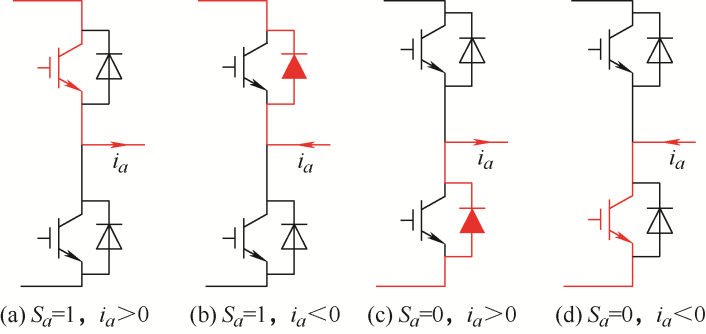

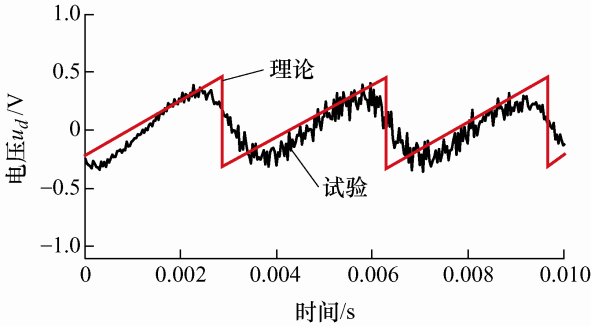

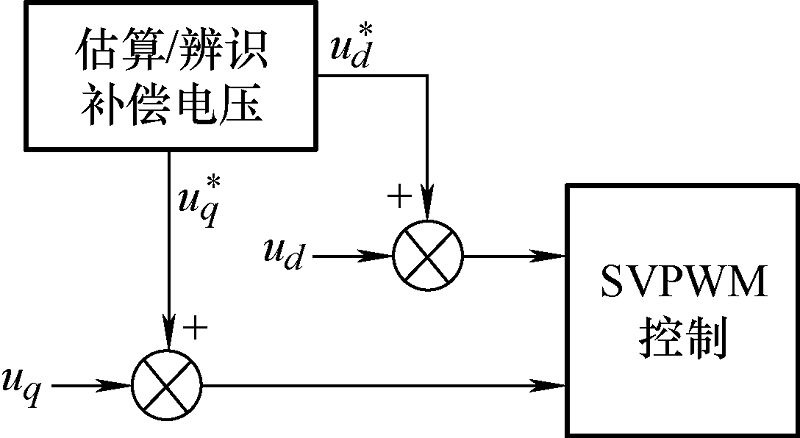

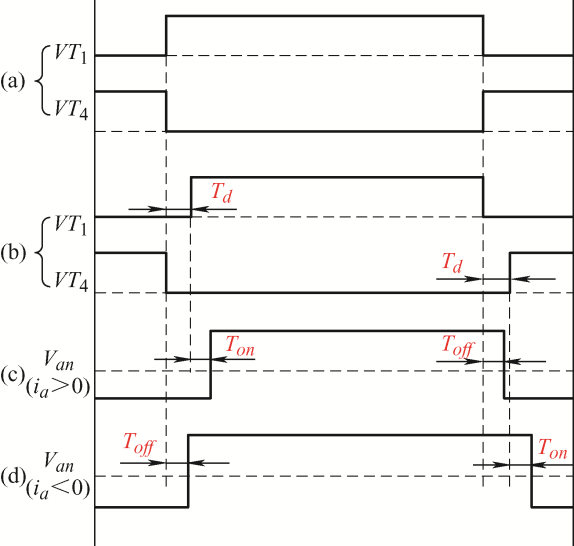

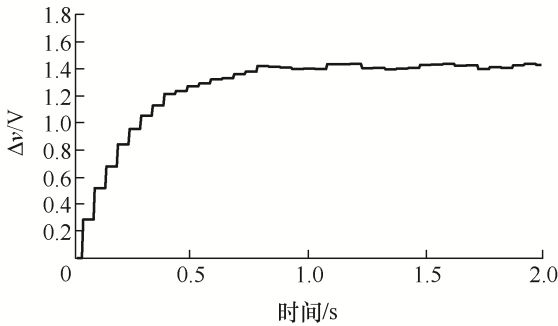

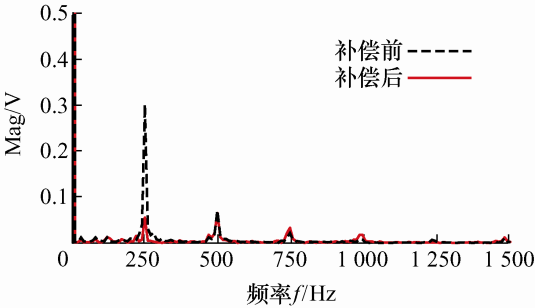

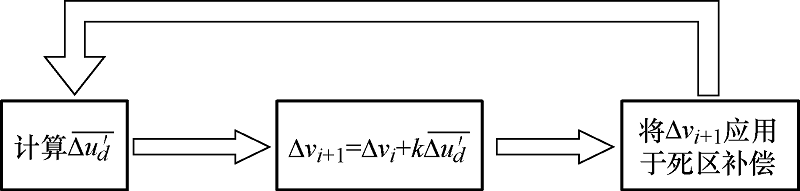

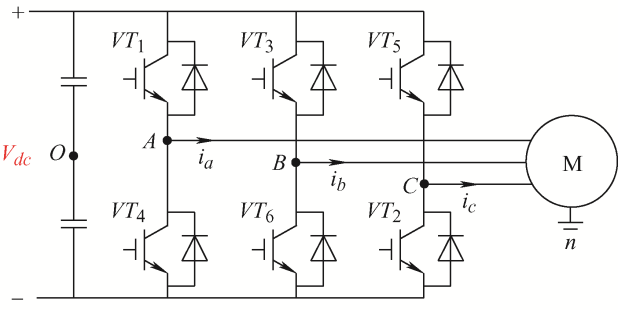

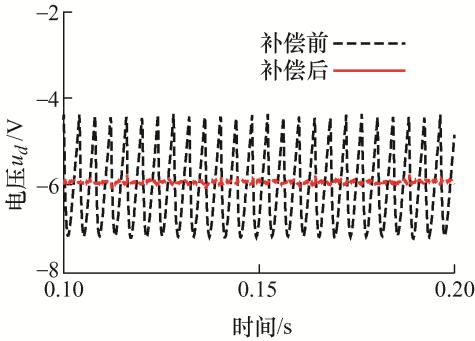

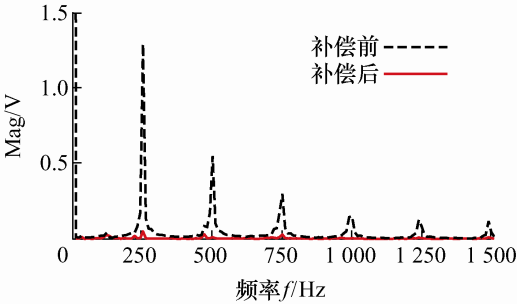

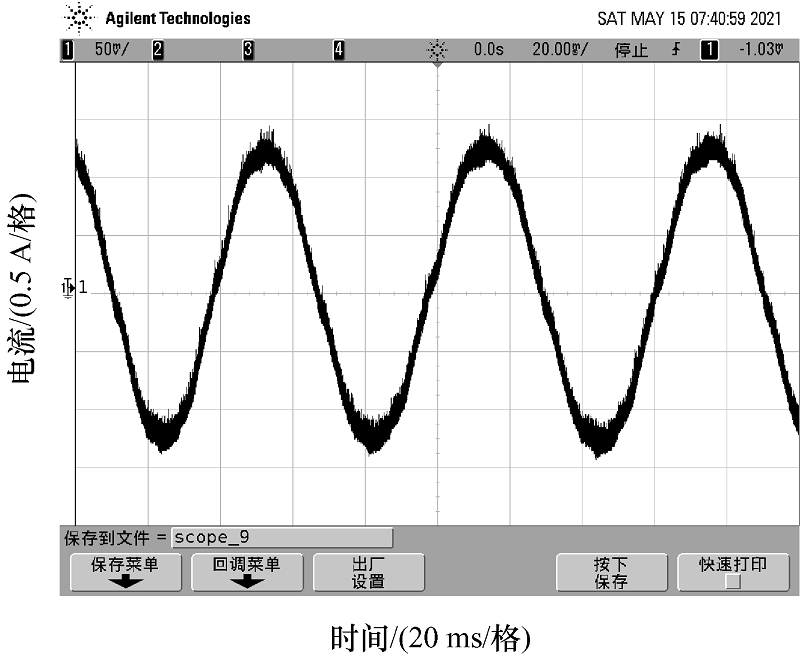

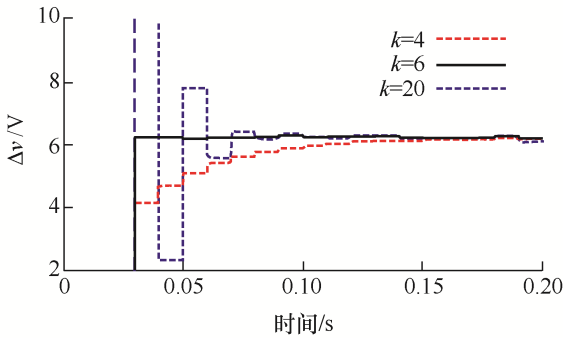

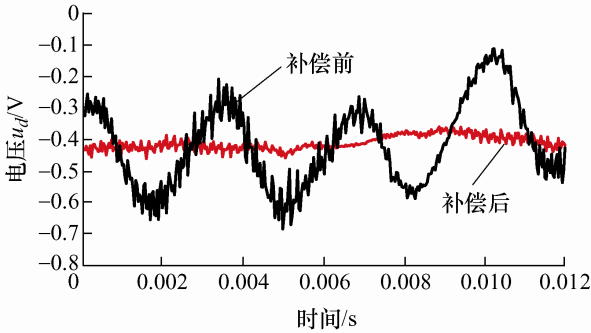

The dead-zone effect will lead to the output voltage distortion of the inverter, so that the actual output voltage controlled by the PMSM SVPWM will not be equal to the reference voltage, which reduces the control performance. The inverter dead-zone effect of synchronous motor drive system is analyzed, the mathematical model of the output voltage including the dead-zone effect is established, and a dead-zone compensation strategy based on direct-axis voltage analysis is proposed. The size of dead zone can be identified online by analyzing voltage harmonics,then the feed forward voltage can be compensated according to the mathematical model. This method doesn’t need additional hardware, and is simple to implement. Simulation and experiment show that the method can effectively eliminate the voltage and current harmonics caused by the dead zone.

Key words: Permanent magnet synchronous machine, deadtime compensation, inverter

CLC Number:

TM561

YU Jiawen, ZHU Pengcheng, XU Yongxiang. Dead Zone Compensation Strategy for Inverter of PMSM Based on Direct Axis Voltage Analysis[J]. Journal of Electrical Engineering, 2021, 16(4): 51-58.

Figures/Tables 23

References 15

[1]	赵录杰, 段晶晶, 贺雅琦, 等. 浅谈永磁电机伺服控制系统的控制策略研究[J]. 中国新通信, 2019, 21(12):228.
	ZHAO Lujie, DUAN Jingjing, HE Yaqi, et al. Research on control strategy of permanent magnet motor servo control system[J]. China New Telecommunications, 2019, 21(12):228.
[2]	张立伟, 郑丽娜, 宋立群, 等. 采用扩展卡尔曼滤波器对PMSM死区补偿的方法[J]. 北京交通大学学报, 2019, 43(2):93-99.
	ZHANG Liwei, ZHENG Lina, SONG Liqun, et al. Extended Kalman filter is used to compensate PMSM dead zone[J]. Journal of Beijing Jiaotong University, 2019, 43(2):93-99.
[3]	张成宝, 苏阳, 周中坚. 电动助力转向电机控制系统死区效应研究[J]. 电机与控制应用, 2020, 47(6):70-75.
	ZHANG Chengbao, SU Yang, ZHOU Zhongjian. Research on dead zone effect of electric power steering motor control system[J]. Electric Machines and Control Application, 2020, 47(6):70-75.
[4]	冯振东, 张力平, 周浩, 等. 基于干扰观测器的逆变器在线死区补偿[J]. 机电工程技术, 2020, 49(2):175-178.
	FENG Zhendong, ZHANG Liping, ZHOU Hao, et al. Online deadzone compensation of inverters based on disturbance observe[J]. Mechanical and Electrical Engineering Technology, 2020, 49(2):175-178.
[5]	张志刚, 李腾, 杜劭琨, 等. 基于死区补偿的PMSM转矩脉动抑制研究[J]. 控制工程, 2021, 28(6):1108-1114.
	ZHANG Zhigang, LI Teng, DU Shaokun, et al. Research on torque ripple suppression of PMSM based on dead zone compensation[J]. Control Engineering, 2021, 28(6):1108-1114.
[6]	SHIM J, CHOI H, HA J I. Zero-sequence current suppression with dead-time compensation control in open-end winding PMSM[C]// 2020 IEEE Energy Conversion Congress and Exposition (ECCE). IEEE, 2020:3051-3056.
[7]	魏佳丹, 薛嘉成, 周波, 等. 四桥臂变换器驱动开绕组永磁同步电机系统的死区效应分析与抑制[J]. 电工技术学报, 2018, 33(17):4078-4090.
	WEI Jiadan, XUE Jiacheng, ZHOU Bo, et al. Analysis and suppression of dead zone effect in open-winding permanent magnet synchronous motor driven by four-bridge arm converter[J]. Transactions of China Electrotechnical Society, 2018, 33(17):4078-4090.
[8]	沈凤龙, 满永奎, 王建辉, 等. 变换器死区补偿方法[J]. 辽东学院学报, 2016, 23(3):192-198.
	SHEN Fenglong, Man Yongkui, WANG Jianhui, et al. Compensation method of converter dead zone[J]. Journal of Liaodong University, 2016, 23(3):192-198.
[9]	WANG Y, GAO Q, CAI X. Mixed PWM for dead-time elimination and compensation in a grid-tied inverter[J]. IEEE Transactions on Industrial Electronics, 2011, 58(10):4797-4803. doi: 10.1109/TIE.2011.2112313
[10]	韩坤, 孙晓, 刘秉, 等. 一种永磁同步电机矢量控制SVPWM死区效应在线补偿方法[J]. 中国电机工程学报, 2018, 38(2):620-627,692.
	HAN Kun, SUN Xiao, LIU Bing, et al. An on-line compensation method for dead-time effect of vector control SVPWM of permanent magnet synchronous motor[J]. Proceedings of the CSEE, 2018, 38(2):620-627,692.
[11]	刘栋良, 贺益康. 交流伺服系统逆变器死区效应分析与补偿新方法[J]. 中国电机工程学报, 2008, 28(21):46-50.
	LIU Dongliang, HE Yikang. A new method for analysis and compensation of dead-time effect of AC servo system inverter[J]. Proceedings of the CSEE, 2008, 28(21):46-50.
[12]	闫博, 王家军. 基于时间方法的电压源逆变器死区补偿研究[J]. 杭州电子科技大学学报, 2021, 41(3):43-50.
	YAN Bo, WANG Jiajun. Research on dead time compensation of voltage source inverter based on time method[J]. Journal of Hangzhou Dianzi University, 2021, 41(3):43-50.
[13]	LI Y S, WU P Y, HO M T. Dead-time compensation for permanent magnet synchronous motor drives[C]// 2020 International Automatic Control Conference (CACS). IEEE, 2020:1-6.
[14]	陈令云. 基于空间矢量脉宽调制的死区补偿方法研究[J]. 机械制造, 2019, 57(12):29-31,44.
	CHEN Lingyun. Research on dead-time compensation method based on space vector pulse width modulation[J]. Mechanical Manufacturing, 2019, 57(12):29-31,44.
[15]	CHEN W, LI B, XU D, et al. A dead-time compensation method for voltage source inverters[C]// 2019 22nd International Conference on Electrical Machines and Systems (ICEMS). IEEE, 2019:1-6.

θ	-π/6~ π/6	π/6~ π/2	π/2~ 5π/6	5π/6 ~7π/6	7π/6~ 9π/6	9π/6~11π/6
i_a	+	+	-	-	-	+
i_b	-	+	+	+	-	-
i_c	-	-	-	+	+	+
ΔV_α	$- \frac{{2\Delta v}}{3}$	$- \frac{{\Delta v}}{3}$	$\frac{{\Delta v}}{3}$	$\frac{{2\Delta v}}{3}$	$\frac{{\Delta v}}{3}$	$- \frac{{\Delta v}}{3}$
ΔV_b	0	$- \frac{{\Delta v}}{3}$	$- \frac{{\Delta v}}{3}$	0	$\frac{{\Delta v}}{{\sqrt 3 }}$	$\frac{{\Delta v}}{{\sqrt 3 }}$

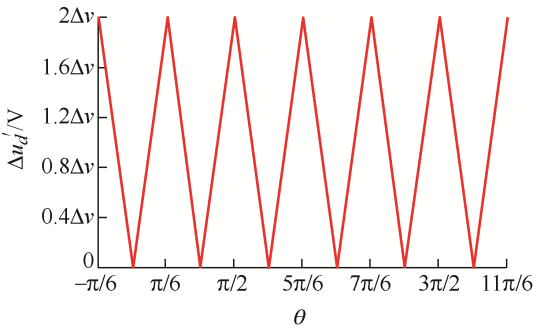

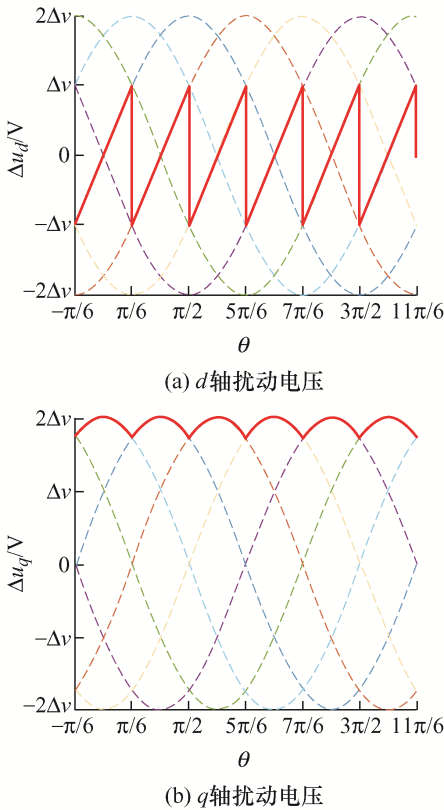

θ	Δu_d	Δu_q
-π/6~π/6	2Δvcos(θ_e)	-2Δvsin(θ_e)
π/6~π/2	2Δvcos(θ_e-π/3)	-2Δvsin(θ_e-π/3)
π/2~5π/6	2Δvcos(θ_e-2π/3)	-2Δvsin(θ_e-2π/3)
5π/6~7π/6	2Δvcos(θ_e-π)	-2Δvsin(θ_e-π)
7π/6~9π/6	2Δvcos(θ_e-4π/3)	-2Δvsin(θ_e-4π/3)
9π/6~11π/6	2Δvcos(θ_e-5π/3)	-2Δvsin(θ_e-5π/3)

参数	数值	参数	数值
电阻/Ω	0.9	磁链/Wb	0.06
直轴电感/mH	5	交轴电感/mH	5
极对数	5	转动惯量/(kg•m²)	0.000 8

参数	额定值	参数	额定值
额定转速/ (r/min)	3 000	额定转矩/ (N·m)	2.39
额定功率/W	750	额定电流/A	3.8
额定电压/V	132	极对数	5
