Reducing Torque Ripple of a Permanent Magnet Motor Used in Industrial Robots Based on Structure of Eccentric and Concave Stator Tooth

doi:10.11985/2018.10.005

Abstract

Abstract:

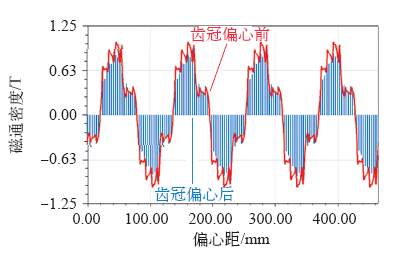

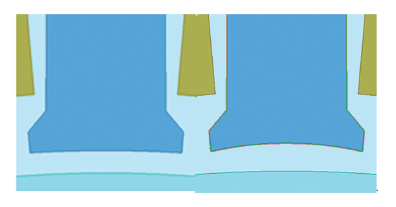

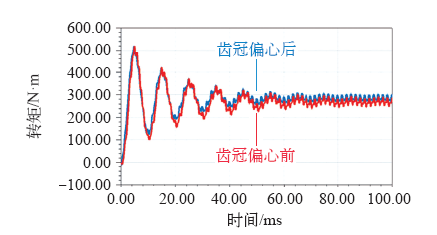

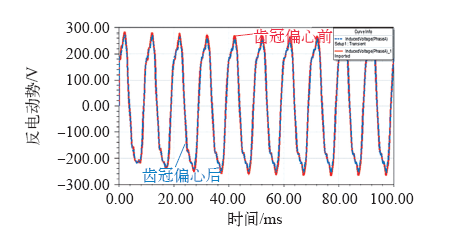

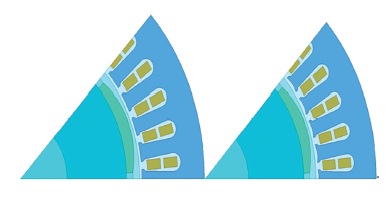

In order to optimize the permanent magnet synchronous motor(PMSM) used in industrial robots with 36 slots and 8 poles, the structure of eccentric and concave stator tooth is proposed. This structure is based on the thinking of different air gap length, and the finite element analysis software ANSYS Maxwell is used to model and analyze the PMSM with the structure. The total harmonic distortion of the air gap magnetic field, the total harmonic distortion of the back EMF, the torque ripple coefficient under different eccentric distances are studied, and the influence of the structure of eccentric and concave stator tooth for cogging torque is analyzed. The simulation experiment results show that the structure of eccentric and concave stator tooth can effectively improve the air gap flux density waveform, and reduce output torque ripple and amplitude of cogging torque.

Key words: Finite element simulation, eccentric stator tooth, total harmonic distortion, torque ripple, cogging torque

CLC Number:

TM351

Wang Wei,Du Xiaobin,Hu Bi,Hu Tuxiong. Reducing Torque Ripple of a Permanent Magnet Motor Used in Industrial Robots Based on Structure of Eccentric and Concave Stator Tooth[J]. Journal of Electrical Engineering, 2018, 13(10): 22-28.

Figures/Tables 14

Fig.1

Fig.2

Fig.3

Tab.1

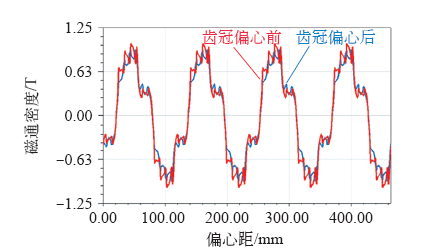

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

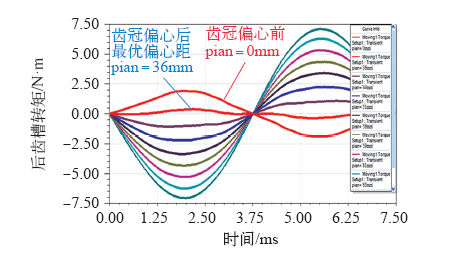

Fig.10

Tab.2

Fig.12

Fig.11

References 11

[1]	王田苗, 陶永 . 我国工业机器人技术现状与产业化发展战略[J]. 机械工程学报, 2014,50(9):1-13.
	Wang Tianmiao, Tao Yong . Current status and industrialization development strategy of industrial robot technology in China[J]. Journal of Mechanical Engineering, 2014,50(9):1-13.
[2]	肖庆优 . 工业机器人用永磁同步伺服电机设计与分析[D]. 广州:广东工业大学, 2016.
[3]	李明, 王巍 . 转子静态偏心对电动汽车永磁同步电机转矩波动的影响[J]. 微电机, 2016,49(4):32-34.
	Li Ming, Wang Wei . Effect of static eccentricity of rotor on torque fluctuation of permanent magnet synchronous motor of electric vehicle[J]. Micro Motor, 2016,49(4):32-34.
[4]	于圣龙, 白瑞林, 李新 , 等. 负载对分数槽永磁电机转矩波动的影响[J].电子测量与仪器学报, 2015(12):1781-1789.
	Yu Shenglong, Bai Ruilin, Li Xin , et al. Effect of load on torque ripple of fractional slot permanent magnet motor[J].Journal of Electronic Measurement and Instrument, 2015(12):1781-1789.
[5]	莫会成 . 永磁交流伺服电动机转矩波动分析[J]. 微电机, 2007,40(3):1-4.
	Mo Huicheng . Analysis of torque fluctuation of permanent magnet AC servo motor[J]. Micro Motor, 2007,40(3):1-4.
[6]	孙德明, 杜明星, 刘志宏 , 等. 一种改进的永磁同步电机直接转矩控制方法[J]. 电机与控制应用, 2017,44(2):47-51.
	Sun Deming, Du Mingxing, Liu Zhihong , et al. An improved direct torque control method for permanent magnet synchronous motor[J]. Motor and Control Application, 2017,44(2):47-51.
[7]	黄越, 唐任远, 韩雪岩 . 基于Ansoft的永磁交流伺服电动机转矩波动分析[J].电气技术, 2008(4):15-18.
	Huang Yue, Tang Renyuan, Han Xueyan . Analysis of torque ripple of permanent magnet AC servo motor based on ansoft[J]. Electric Technology, 2008(4):15-18.
[8]	陈垒, 张程, 鲍晓华 . 不均匀气隙结构的异步起动永磁同步电机设计[J]. 微电机, 2016,49(12):10-14.
	Chen Lei, Zhang Cheng, Bao Xiaohua . Design of asynchronous starting permanent magnet synchronous motor with uneven air gap structure[J]. Micro Motor, 2016,49(12):10-14.
[9]	吴奕菡 . 压缩机负载下永磁同步电机损耗分析及优化设计[D]. 沈阳:沈阳工业大学, 2017.
[10]	胡佳 . 永磁有刷直流微电机气隙磁密特性分析与结构参数稳健优化[D]. 长沙:湖南科技大学, 2015.
[11]	孙曌续, 曹继伟, 李立毅 . 永磁同步电机转矩波动抑制方法研究[EBIOL].北京:中国科技论文在线,[ 2017-04-24]. .

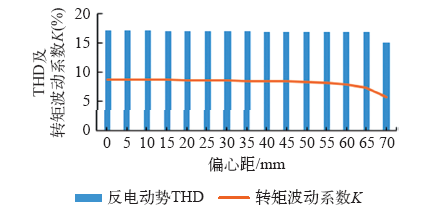

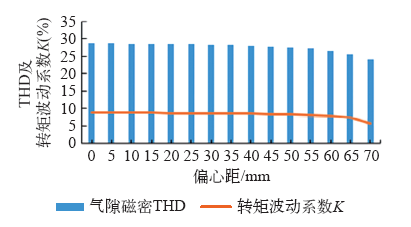

偏心距离 /mm	气隙磁通密度		反电动势		转矩波动系数K(%)
偏心距离 /mm	基波幅值/T	THD(%)	基波幅值/T	THD(%)	转矩波动系数K(%)
0	0.866 4	28.65	263.810 0	17.20	8.81
5	0.866 1	28.67	263.804 5	17.13	8.79
10	0.865 2	28.60	263.743 1	17.12	8.73
15	0.864 9	28.51	263.705 6	17.09	8.70
20	0.864 2	28.47	263.659 4	17.04	8.65
25	0.863 6	28.38	263.611 4	17.01	8.61
30	0.862 7	28.28	263.543 6	16.99	8.55
35	0.861 7	28.19	263.458 0	16.96	8.51
40	0.860 4	27.98	263.350 1	16.94	8.46
45	0.858 7	27.85	263.205 5	16.93	8.43
50	0.856 5	27.60	262.997 8	16.92	8.31
55	0.853 5	27.19	262.691 1	16.90	8.14
60	0.848 6	26.62	262.190 7	16.90	7.86
65	0.838 5	25.60	261.033 0	16.87	7.34
70	0.814 4	24.12	257.703 7	15.07	5.68

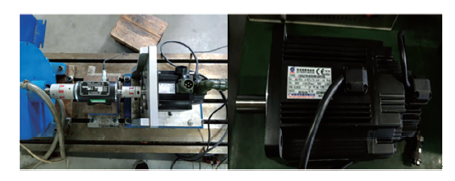

电机编号	130SJTR-MZ096C（A4Y3X）

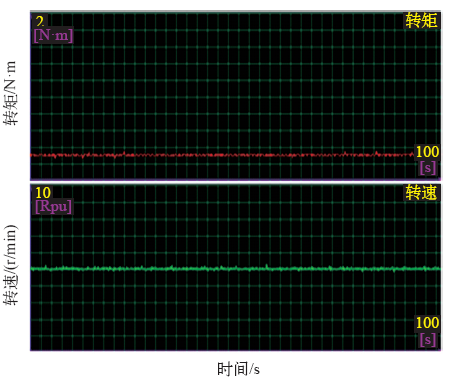

齿槽转矩/N·m	0.34
齿槽转矩波动率(%)	0.42
