Electromagnetic and Thermal Field Modeling of Wind Power Reactor Based on Amorphous and Silicon-Steel Hybrid Core

doi:10.11985/2017.10.003

Abstract

Abstract:

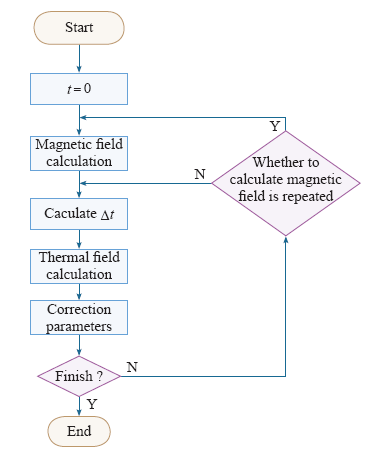

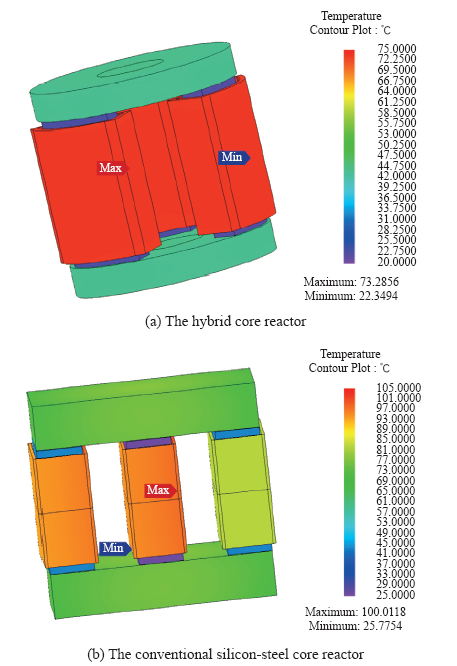

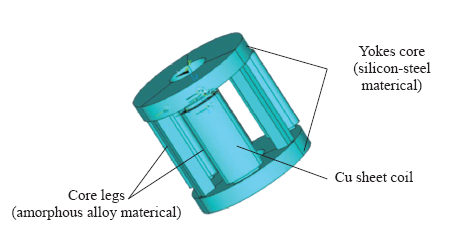

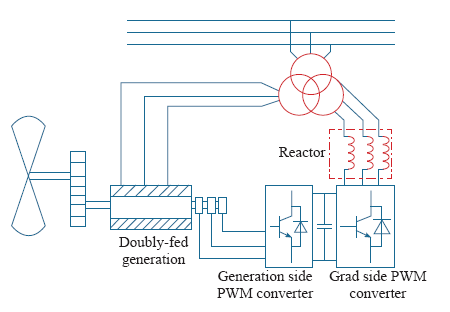

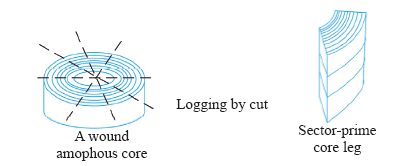

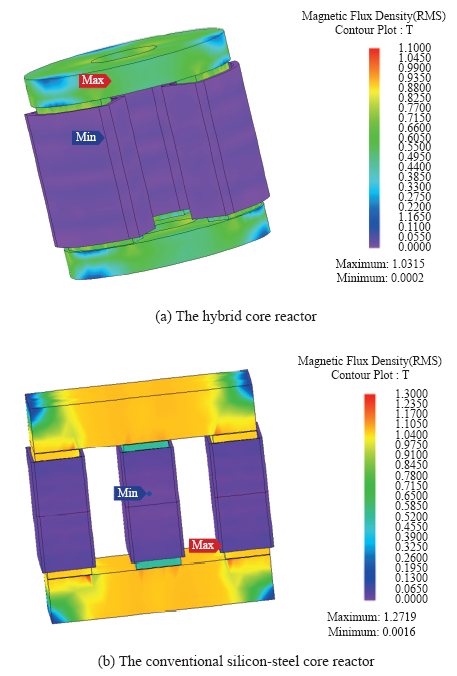

A hybrid core reactor is proposed based on silicon-steel and amorphous alloy in this paper. Amorphous alloy is used as core legs and silicon-steel is used as yoke core in the designed reactor. The electromagnetic and thermal field coupled model is built using three-dimensional finite element method. Compared with the conventional silicon-steel core reactor, the simulation results show that the designed hybrid core reactor can reduce eddy-current loss and temperature rise.

Key words: Hybrid core reactor, finite element method, electromagnetic and thermal field

CLC Number:

TM47

Zheng Jianfen,Wang Chunfang,Wang Fang,Xia Dongwei. Electromagnetic and Thermal Field Modeling of Wind Power Reactor Based on Amorphous and Silicon-Steel Hybrid Core[J]. Journal of Electrical Engineering, 2017, 12(10): 19-24.

Figures/Tables 8

References 10

[1]	Roman Kolano, Aleksandra Kolano-Burian, Marcin Polak , et al. Application of rapidly quenched soft magnetic materials in energy-saving electric equipment[J]. IEEE Transactions on Magnetics, 2014,50(4):2004804.
[2]	Kang E Y, Yoon B Kim, Kim K Y , et al. Preparation of Fe-Si-B-Nb amorphous powder cores with excellent high-frequency magnetic properties[J]. Journal of Magnetism and Magnetic Materials, 2006,304(1):182-185.
[3]	Wang Xiangyue, Lu Caowei, Guo Feng , et al. New Fe-based amorphous compound powder cores with superior DC-bias properties and low loss characteristics[J]. Journal of Magnetism and Magnetic Materials, 2012,324(18):2727-2730. doi: 10.1016/j.jmmm.2012.03.053
[4]	Yuan W J, Liu F J, Pang S J , et al. Core loss characteristics of Fe-based amorphous alloys[J]. Intermetallics, 2009,17(4):278-280. doi: 10.1016/j.intermet.2008.07.016
[5]	Li Deren, Zhang Liang, Li Guangmin , et al. Reducing the core loss of amorphous cores for distribution transformers[J]. Progress in Natural Science: Materials International, 2012,22(3):244-249. doi: 10.1016/j.pnsc.2012.04.005
[6]	Chang YeongHwa, Hsu ChangHung, Chu HueiLung , et al. Magnetomechanical vibrations of three-phase three-leg transformer with different amorphous-cored structures[J]. IEEE Transactions on Magnetics, 2011,47(10):2780-2783. doi: 10.1109/TMAG.20
[7]	Li Guangmin, Li Deren, Liu Tiancheng , et al. Dipping paint curing amorphous U-core used as reactor[J]. Journal of Iron and Steel Reseach, International, 2013,20(7):63-68.
[8]	Yurekten S, Kara A, Mardikyan K. Energy efficient green transformer manufacturing with amorphous cores[C]. International Conference on Renewable Energy Research and Applications, Madrid, Spain, 2013: 20-23.
[9]	Benedito Antonio Luciano, Claudio Shyinti Kiminami . An amorphous core transformer: design and experimental performance[J]. Materials Science and Engineering, 1997, 226-228(A):1079-1082.
[10]	Naoyuki Kurita, Kenichi Onda, Kenji Nakanoue , et al. Loss estimation method for three-phase AC reactors of two types of structures using amorphous wound cores in 400kV·A UPS[J]. IEEE on Power Electronics, 2014,29(7):3657-3668. doi: 10.1109/TPEL.2013.2279256

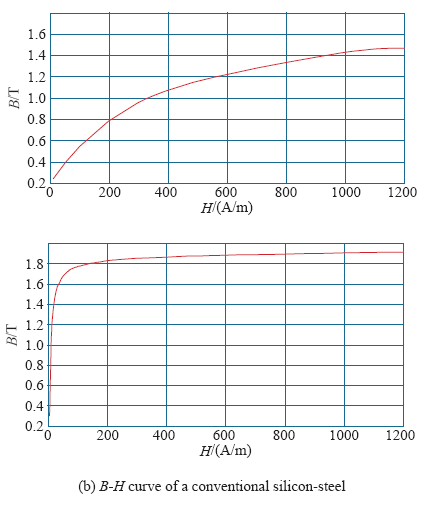

Reactor core material	Amorphous core	Silicon-steel core (for comparison)
Fundamental frequency/Hz	50	50
Fundamental current/A	800	800
Harmonic frequency/kHz	3	3
Resistivity/Ω·m	130e-8	47e-8
Thermal conductivity/m·K	50.2	22.6
Thermal capacitance/[J/(kg·K)]	434	300
Mass density/(kg/m³)	7 180	7 650
