Research on EMI Suppression in Series-end Winding Inverters Based on Real-time Model Predictive VSFPWM

doi:10.11985/2024.01.022

Abstract

Abstract:

The common-mode electromagnetic interference(EMI) generated by the switching process of pulse width modulation (PWM) inverters has a significant negative impact on the system. The new series-end winding inverter topology is used as the research object, and the variable switching frequency pulse width modulation(VSFPWM) technique based on the current ripple prediction model is adopted to realize the accurate control of current ripple and accomplish the spreading suppression of common-mode EMI and the reduction of switching loss while considering the effect of inductor saturation in the actual inverter system. The model predictive VSFPWM strategy considering inductor saturation in series-end winding topology is proposed, and the performance of EMI suppression effect, output current quality and switching loss under different VSFPWM strategies are compared and analyzed by simulation and experiment, which verify that the proposed strategy can effectively suppress common-mode EMI, reduce switching losses, and ensure satisfying output current waveforms.

Key words: Series-end winding inverter, model predictive control, variable switching frequency, EMI suppression

CLC Number:

TM561

HUANG Jilan, ZHANG Jiahua, LIU Zicheng, WANG Zhiyuan, ZHAO Xuan. Research on EMI Suppression in Series-end Winding Inverters Based on Real-time Model Predictive VSFPWM[J]. Journal of Electrical Engineering, 2024, 19(1): 206-215.

Figures/Tables 20

References 20

[1]	沈泽微. 基于双逆变器的主动共模抑制策略及应用研究[D]. 武汉: 华中科技大学, 2020.
	SHEN Zewei. Active common-mode rejection strategy based on double inverter and the application research[D]. Wuhan: Huazhong University of Science and Technology, 2020.
[2]	JANKOVSKIS J, STEPINS D, PIKULINS D. Effects of increasing switching frequency in frequency modulated power converters[C]// International Symposium on Electronics & Telecommunications, November 11-12,2010,Timisoara,Romania. IEEE,2010:115-118.
[3]	李桥. 基于模型预测的变开关频率脉宽调制技术研究[D]. 武汉: 华中科技大学, 2020.
	LI Qiao. Research on variable switching frequency pulse width modulation technology based on model prediction[D]. Wuhan: Huazhong University of Science and Technology, 2020.
[4]	LEE K, SHEN Guangtong, YAO Wenxi, et al. Performance characterization of random pulse width modulation algorithms in industrial and commercial adjustable-speed drives[J]. IEEE Transactions on Industry Applications, 2017, 53(2):1078-1087. doi: 10.1109/TIA.2016.2616407
[5]	LAI Yen, CHEN Boyuan. New random PWM technique for a full-bridge DC/DC converter with harmonics intensity reduction and considering efficiency[J]. IEEE Transactions on Power Electronics, 2013, 28(11):5013-5023. doi: 10.1109/TPEL.2013.2240393
[6]	MIHALIČ F. Improved EMC of switched-mode power converters with randomized modulation[J]. Automatika Journal for Control Measurement,Electronics,Computing and Communications, 2012, 53(2):173-183.
[7]	KIM C, HWANG S, SONG M. A cost-effective design of non-linear modulation profile for spread spectrum clock[C]// 2012 IEEE 11th International Conference on Solid-State and Integrated Circuit Technology. IEEE,2012: 1-4.
[8]	SONG M, AHN S, JUNG I, et al. Piecewise linear modulation technique for spread spectrum clock generation[J]. IEEE Transactions on Very Large Scale Integration (VLSI) Systems, 2012, 21(7):1234-1245. doi: 10.1109/TVLSI.2012.2210290
[9]	MOHSENI S, ROOMIZADEH A. Study on periodic and non periodic frequency modulation techniques for EMI suppression in SMPS[C]// 2011 2nd Power Electronics, Drive Systems and Technologies Conference. IEEE,2011: 615-619.
[10]	LI An, JIANG Dong, LIU Zicheng, et al. Generalized PWM method for series-end winding motor drive[J]. IEEE Transactions on Power Electronics, 2020, 36(4):4452-4462. doi: 10.1109/TPEL.2020.3024591
[11]	乐焕华. 基于随机PWM调制的变流器研究[D]. 成都: 电子科技大学, 2015.
	LE Huanhua. Research on converter based on random PWM modulation[D]. Chengdu: University of Electronic Science and Technology of China, 2015.
[12]	LI An, JIANG Dong, KONG Wubin, et al. Four-leg converter for reluctance machine with DC-biased sinusoidal winding current[J]. IEEE Transactions on Power Electronics, 2018, 34(5):4569-4580. doi: 10.1109/TPEL.63
[13]	LI An, JIANG Dong, SUN Xiangwen, et al. Method of expanding operating range for three-phase series-end winding motor drive[C]// 2020 IEEE Energy Conversion Congress and Exposition (ECCE), October 11-15,2020,Detroit,MI,USA. IEEE,2020:2020-2025.
[14]	LI Qiao, CHEN Jianan, JIANG Dong. Periodic variation in the effect of switching frequency on the harmonics of power electronic converters[J]. Chinese Journal of Electrical Engineering, 2020, 6(3):35-45. doi: 10.23919/CJEE.7873788
[15]	SUN Xiangwen, LIU Zicheng, LI An, et al. Self-adaptive fault-tolerant control of three-phase series-end winding motor drive[J]. IEEE Transactions on Power Electronics, 2022, 37(9):10939-10950. doi: 10.1109/TPEL.2022.3160747
[16]	张环环. 马尔科夫链在双随机PWM技术中的研究[D]. 柳州: 广西科技大学, 2014.
	ZHANG Huanhuan. Research on Markov chain in dual-random PWM technology[D]. Liuzhou: Guangxi University of Science and Technology, 2014.
[17]	肖红. 随机PWM控制策略及其在变频调速系统中的应用[D]. 哈尔滨: 哈尔滨理工大学, 2014.
	XIAO Hong. Stochastic PWM control strategy and its application in frequency conversion speed regulation system[D]. Harbin:Harbin University of Science and Technology, 2014.
[18]	CHEN Jianan, JIANG Dong, SUN Wei, et al. A family of spread-spectrum modulation schemes based on distribution characteristics to reduce conducted EMI for power electronics converters[J]. IEEE Transactions on Industry Applications, 2020, 6(5):5142-5157.
[19]	KALAISELVI J, SRINIVAS S. Bearing currents and shaft voltage reduction in dual-inverter-fed open-end winding induction motor with reduced CMV PWM methods[J]. IEEE Transactions on Industrial Electronics, 2014, 62(1):144-152. doi: 10.1109/TIE.2014.2336614
[20]	LI An, JIANG Dong, LIU Zicheng, et al. Five-phase series-end winding motor controller:Converter topology and modulation method[C]// 2019 IEEE Energy Conversion Congress and Exposition (ECCE). IEEE,2019:629-634.

参数	数值
母线电压V_dc/V	100
调制比m	0.2
负载电阻R/Ω	2
负载电感初始值L₀/μH	700
基波频率f₀/Hz	50
固定开关频率f_s/kHz	20

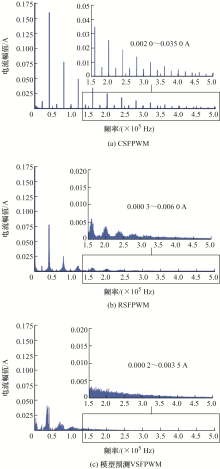

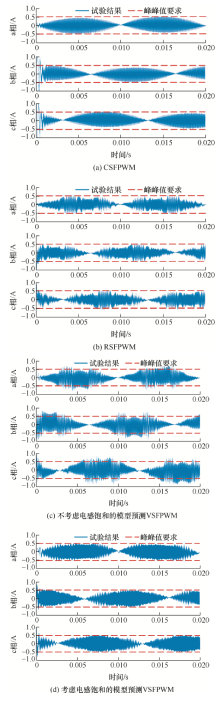

策略	THD(%)	电流纹波峰峰值/A
CSFPWM	5.22	1.018
RSFPWM	5.39	1.063
不考虑饱和的模型预测	7.62	1.452
考虑饱和的模型预测	7.60	1.018

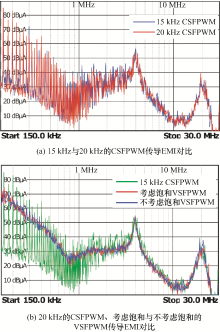

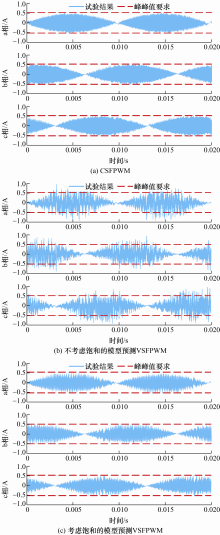

开关策略	电流纹波峰峰值/A	开关次数	E_SW	THD(%)
CSFPWM	1.02	400	3 429	6.95
考虑饱和VSFPWM	1.02	366	3 155	7.61
不考虑饱和VSFPWM	1.02	304	2 606	7.59
