LED Intelligent Dimming Strategy with Power and Signal Dual Modulation

doi:10.11985/2024.01.021

Abstract

Abstract:

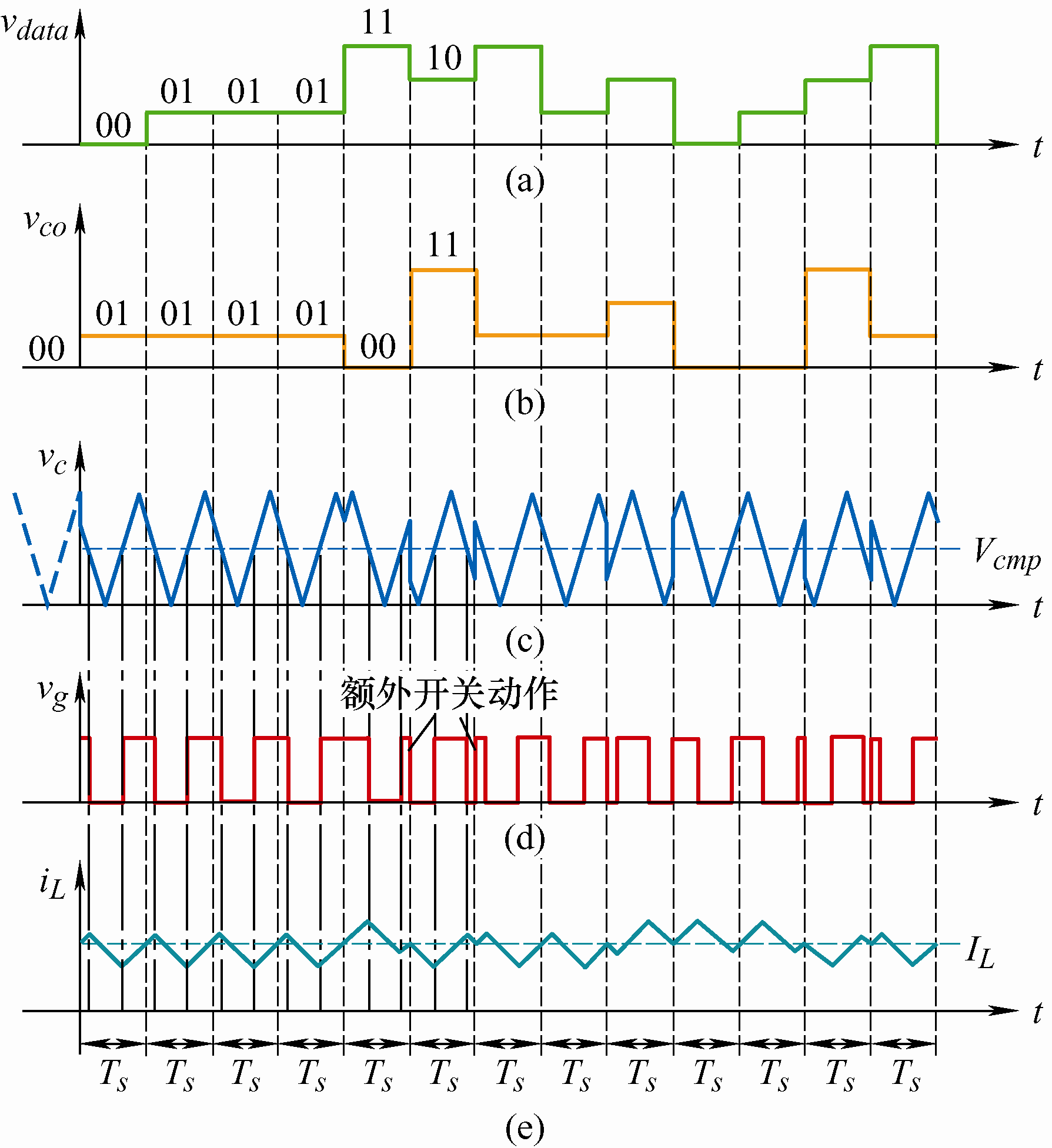

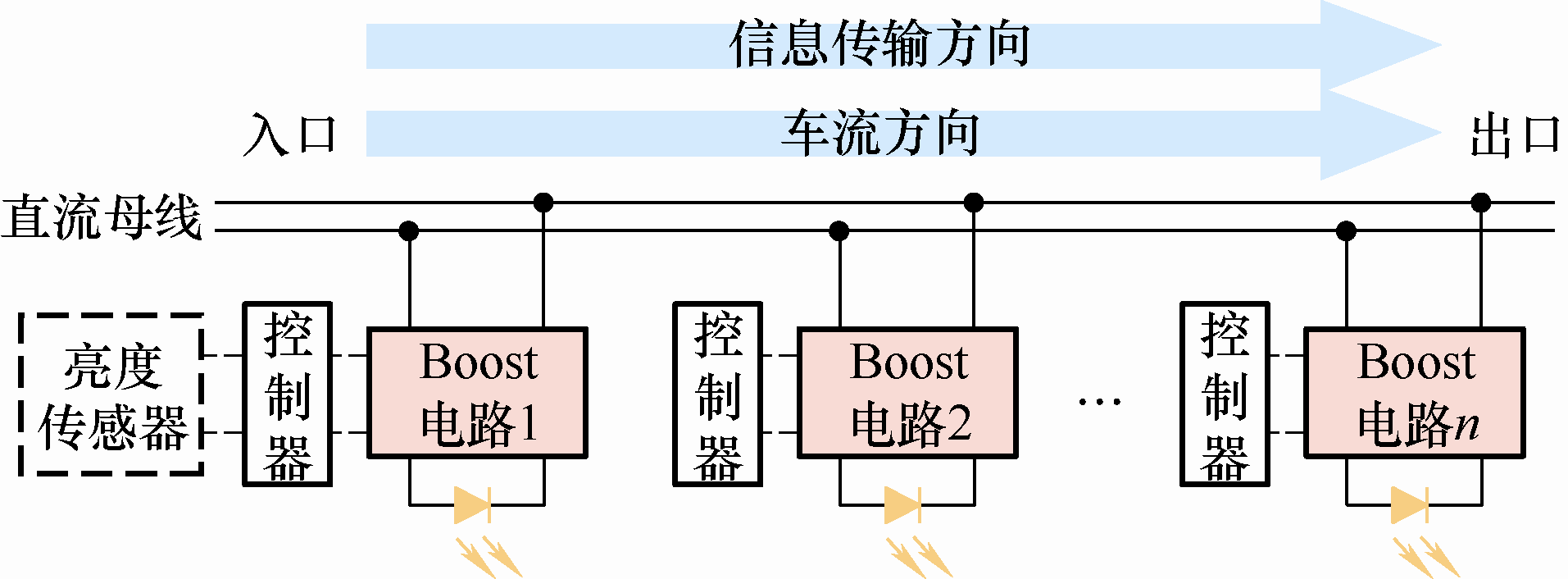

With the urgent demand to intelligence and the highly sensibility to cost for LED lighting systems, and the existing intelligent LED control strategies face the issues of high cost and low reliability, a power electronic converter-based power and signal dual modulation method is proposed for LED intelligent dimming. It is based on power electronics-driven LED linear dimming system, adopting quaternary differential phase shift keying(QDPSK) to modulate ripples on the common power bus. Therefore, quaternary signal modulation, coupling and transmission are achieved without extra hardware. The basic principle of DC/DC power converter is studied from communication perspective, and reveals the implementation method of power and signal dual modulation in LED dimming systems. A tunnel LED intelligent dimming system is analyzed as an example from perspectives of the system structure, communication protocols, power noises, and communication rate. Finally, an experimental prototype is constructed to verify the feasibility of the proposed method.

Key words: LED intelligent dimming, power and signal dual modulation, QDPSK modulation, DC/DC converter

CLC Number:

TM46

SHANG Wenyang, WANG Ruichi, LIN Zhengyu, WU Jiande, HE Xiangning. LED Intelligent Dimming Strategy with Power and Signal Dual Modulation[J]. Journal of Electrical Engineering, 2024, 19(1): 196-205.

Figures/Tables 17

References 42

[1]	杨毕生. 地下车库LED照明节能设计分析[J]. 照明工程学报, 2020, 31(4):105-109.
	YANG Bisheng. Analysis on energy saving design of underground garage LED lighting[J]. China Illuminating Engineering Journal, 2020, 31(4):105-109.
[2]	DAELY P T, REDA H T, SATRYA G B, et al. Design of smart LED streetlight system for smart city with web-based management system[J]. IEEE Sensors Journal, 2017, 17(18):6100-6110. doi: 10.1109/JSEN.2017.2734101
[3]	刘世顺. ZigBee在办公场所智能照明系统中的应用[D]. 大连: 大连工业大学, 2020.
	LIU Shishun. Application of ZigBee in intelligent lighting system for office workplace[D]. Dalian: Dalian Polytechnic University, 2020.
[4]	吕寻斋, 刘雪山, 周群, 等. 谐振式单开关多路低纹波输出LED驱动器[J]. 电工技术学报, 2021, 36(10):2081-2091.
	LÜ Xunzhai, LIU Xueshan, ZHOU Qun, et al. Resonant single switch multi-channel low ripple output LED driver[J]. Transactions of China Electrotechnical Society, 2021, 36(10):2081-2091.
[5]	张凯暾, 周国华, 周述晗, 等. 峰值I²C控制Buck型LED驱动电源稳定性分析[J]. 电工技术学报, 2018, 33(8):1793-1801.
	ZHANG Kaitun, ZHOU Guohua, ZHOU Shuhan, et al. Stability analysis of peak I²C controlled Buck LED driving power supply[J]. Transactions of China Electrotechnical Society, 2018, 33(8):1793-1801.
[6]	付贤松, 王婷, 任梦奇, 等. 新型隔离式PWM调光LED驱动器设[J]. 电工技术学报, 2015, 30(S1):75-79.
	FU Xiansong, WANG Ting, REN Mengqi, et al. Design of new isolated PWM dimming LED driver[J]. Transactions of China Electrotechnical Society, 2015, 30(S1):75-79.
[7]	LOO K H, LAI Y M, TAN S, et al. Stationary and adaptive color-shift reduction methods based on the bilevel driving technique for phosphor-converted white LEDs[J]. IEEE Transactions on Power Electronics, 2011, 26(7):1943-1953. doi: 10.1109/TPEL.2010.2097610
[8]	苗舒婷. 高速公路隧道智能化调光控制技术研究[D]. 北京: 中国科学院大学, 2020.
	MIAO Shuting. Research on intelligent dimming control technology for expressway tunnel[D]. Beijing: University of Chinese Academy of Sciences, 2020.
[9]	DIAZ J, RODRIGUEZ E, HURTADO L, et al. CAN bus embedded system for lighting network applications[C]// 51st Midwest Symposium on Circuits and Systems(MWSCAS),Knoxville,USA,2008:531-534.
[10]	LAI Qingmin. Remote control system for LED lighting based on CAN bus[C]// 2nd International Conference on Mechanic Automation and Control Engineering(MACE),Inner Mongolia,China,2011:4276-4278.
[11]	MATTA S, MAHMUD S M. An intelligent light control system for power saving[C]// 36th Annual Conference on IEEE Industrial Electronics Society(IECON),Glendale,USA,2010:3316-3321.
[12]	LECCESE F. Remote-control system of high efficiency and intelligent street lighting using a ZigBee network of devices and sensors[J]. IEEE Transactions on Power Delivery, 2013, 28(1):21-28. doi: 10.1109/TPWRD.2012.2212215
[13]	HARDY L, GAFEN M. A synchronized wireless mesh network model for intelligent lighting control:Case study[C]// 7th International Conference on Networked Sensing Systems(INSS),Kassel,Germany,2010:153-156.
[14]	LIAN Li, LI Li. Wireless dimming system for LED street lamp based on ZigBee and GPRS[C]// 3rd International Conference on System Science,Engineering Design and Manufacturing Informatization(ICSEM),Chengdu,China,2012:100-102.
[15]	TAN Y K, HUYNH T P, WANG Zizhen. Smart personal sensor network control for energy saving in DC grid powered LED lighting system[J]. IEEE Transactions on Smart Grid, 2013, 4(2):669-676. doi: 10.1109/TSG.2012.2219887
[16]	BYUN J, JEON B, NOH J, et al. An intelligent self-adjusting sensor for smart home services based on ZigBee communications[J]. IEEE Transactions on Consumer Electronics, 2012, 58(3):794-802. doi: 10.1109/TCE.2012.6311320
[17]	GILL K, YANG Shuanghua, YAO Fang, et al. A ZigBee-based home automation system[J]. IEEE Transactions on Consumer Electronics, 2009, 55(2):422-430. doi: 10.1109/TCE.30
[18]	SHAHZAD G, YANG H, AHMAD A W, et al. Energy-efficient intelligent street lighting system using traffic-adaptive control[J]. IEEE Sensors Journal, 2016, 16(13):5397-5405. doi: 10.1109/JSEN.2016.2557345
[19]	SHAO Sihua, KHREISHAH A, AYYASH M, et al. Design and analysis of a visible-light-communication enhanced WiFi system[J]. Journal of Optical Communications and Networking, 2015, 7(10):960-973. doi: 10.1364/JOCN.7.000960
[20]	PUJAPANDA K P. LiFi integrated to power-lines for smart illumination communication[C]// International Conference on Communication Systems and Network Technologies(CSNT),Gwalior,India,2013:875-878.
[21]	SONG Jian, DING Wenbo, YANG Fang, et al. An indoor broadband broadcasting system based on PLC and VLC[J]. IEEE Transactions on Broadcasting, 2015, 61(2):299-308. doi: 10.1109/TBC.2015.2400825
[22]	XIAO Wenhui, BO Liang, KAUR R. Design of LED lighting system based on power line communication[C]// 5th International Conference on Computer and Communication Systems (ICCCS),Shanghai,China,2020:835-839.
[23]	王宁, 赵宝宜, 王巍, 等. 基于电力载波通信的LED舞台灯光控制系统设计[J]. 电工技术学报, 2013, 28(S2):225-228.
	WANG Ning, ZHAO Baoyi, WANG Wei, et al. Design of LED stage lighting control system based on power carrier communication[J]. Transactions of China Electrotechnical Society, 2013, 28(S2):225-228.
[24]	LI Chushan, WU Jiande, HE Xiangning. Realization of a general LED lighting system based on a novel power line communication technology[C]// 25th Annual IEEE Applied Power Electronics Conference and Exposition(APEC),Palm Springs,USA,2010:2300-2304.
[25]	江海涛, 顾文, 梅睿. 某海上风电场谐波谐振实测及仿真分析[J]. 电气技术, 2021, 22(11):20-26.
	JIANG Haitao, GU Wen, MEI Rui. Test and simulation research on harmonic resonance of offshore wind farm[J]. Electrical Engineering, 2021, 22(11):20-26.
[26]	胡钰杰, 李子欣, 罗龙, 等. 串联谐振间接矩阵型电力电子变压器高频电流特性分析及开关频率设计[J]. 电工技术学报, 2022, 37(6):1442-1454.
	HU Yujie, LI Zixin, LUO Long, et al. Characteristic analysis of high-frequency-link current of series resonant indirect matrix type power electronics transformer and switching frequency design[J]. Transactions of China Electrotechnical Society, 2022, 37(6):1442-1454.
[27]	解润生, 张国荣, 高凯, 等. 适用于频变输电线的动态相量谐波分析建模与仿真[J]. 电工技术学报, 2021, 36(15):3200-3210.
	XIE Runsheng, ZHANG Guorong, GAO Kai, et al. Modeling and simulation of dynamic phasor harmonic analysis for frequency-dependent transmission line[J]. Transactions of China Electrotechnical Society, 2021, 36(15):3200-3210.
[28]	林霖, 裴忠晨, 蔡国伟, 等. 混合式隔离型模块化多电平变换器[J]. 电工技术学报, 2021, 36(16):3319-3330.
	LIN Lin, PEI Zhongchen, CAI Guowei, et al. Hybrid isolated modular multilevel converter[J]. Transactions of China Electrotechnical Society, 2021, 36(16):3319-3330.
[29]	HE Xiangning, WANG Ruichi, WU Jiande, et al. Nature of power electronics and integration of power conversion with communication for talkative power[J]. Nature Communications, 2020, 11(2479):1-12. doi: 10.1038/s41467-019-13993-7
[30]	何湘宁, 王睿驰, 吴建德, 等. 电力电子变换的信息特性与电能离散数字化到智能化的信息调控技术[J]. 中国电机工程学报, 2020, 40(5):1579-1587.
	HE Xiangning, WANG Ruichi, WU Jiande, et al. Info character of power electronic conversion and control technology with power discretization to digitization then intelligentization[J]. Proceedings of the CSEE, 2020, 40(5):1579-1587.
[31]	吴建德, 杜进, 王睿驰, 等. 基于开关纹波调制的电源线通信技术[J]. 电工技术学报, 2014, 29(4):166-172.
	WU Jiande, DU Jin, WANG Ruichi, et al. Power line communication technology based on switch ripple modulation[J]. Transactions of China Electrotechnical Society, 2014, 29(4):166-172.
[32]	ZHAO Shuze, XU Jiale, TRESCASES O. Burst-mode resonant LLC converter for an LED luminaire with integrated visible light communication for smart buildings[J]. IEEE Transactions on Power Electronics, 2014, 29(8):4392-4402. doi: 10.1109/TPEL.2013.2286104
[33]	MODEPALLI K, PARSA L. Dual-purpose offline LED driver for illumination and visible light communication[J]. IEEE Transactions on Industrial Applications, 2015, 51(1):406-419. doi: 10.1109/TIA.2014.2330066
[34]	STEFANUTTI W, SAGGINI S, MATTAVELLI P, et al. Power line communication in digitally controlled DC-DC converters using switching frequency modulation[J]. IEEE Transactions on Industrial Electronics, 2008, 55(4):1509-1518. doi: 10.1109/TIE.2008.917145
[35]	DU Jin, WANG Ruichi, HE Xiangning, et al. Direct sequence spread spectrum-based PWM strategy for harmonic reduction and communication[J]. IEEE Transactions on Power Electronics, 2017, 32(6):4455-4465. doi: 10.1109/TPEL.2016.2597005
[36]	CHEN Jinghui, WU Jiande, WANG Ruichi, et al. Coded PWM based switching ripple communication applied in visible light communication[J]. IEEE Transactions on Power Electronics, 2021, 36(8):9659-9667. doi: 10.1109/TPEL.2021.3056754
[37]	杨运海. 多路大功率LED的驱动设计及智能化照明技术研究[D]. 武汉: 华中科技大学, 2011.
	YANG Yunhai. Study of LED driver with multiple LED-channels and intelligent lighting technology[D]. Wuhan: Huazhong University of Science and Technology, 2011.
[38]	ZHU Yue, WU Jiande, WANG Ruichi, et al. Embedding power line communication in photovoltaic optimizer by modulating data in power control loop[J]. IEEE Transactions on Industrial Electronics, 2019, 66(5):3948-3958. doi: 10.1109/TIE.41
[39]	王睿驰. 能量-信息一体化的电能路由器关键技术研究[D]. 杭州: 浙江大学, 2019.
	WANG Ruichi. Research on key technologies of power/data integrated energy router[D]. Hangzhou: Zhejiang University, 2019.
[40]	SUMATHI P. A frequency demodulation technique based on sliding DFT phase locking scheme for large variation FM signals[J]. IEEE Communication Letters, 2012, 16(11):1864-1867. doi: 10.1109/LCOMM.2012.092812.121133
[41]	SANDELL M, TOSATO F, ISMAIL A. Efficient demodulation of general APSK constellations[J]. IEEE Signal Processing Letters, 2016, 23(6):868-872. doi: 10.1109/LSP.2016.2560241
[42]	郑军. 高速公路隧道LED照明智能控制与节能优化研究[D]. 北京: 北京交通大学, 2014.
	ZHENG Jun. Study on LED intelligent control and energy saving optimization of highway tunnel lighting[D]. Beijing: Beijing Jiaotong University, 2014.

前一符号状态			此刻到达的码元			当前符号状态
${{\varphi }_{n-1}}$/(°)	${{c}_{n-1}}$	${{d}_{n-1}}$	${{a}_{n}}$	${{b}_{n}}$	$\Delta {{\varphi }_{n}}$/(°)	${{\varphi }_{n}}$/(°)	${{c}_{n}}$	${{d}_{n}}$
315	0 0		0 0		90	45	0 1
			0 1		0	315	0 0
			1 1		270	225	1 0
			1 0		180	135	1 1
45	0 1		0 0		90	135	1 1
			0 1		0	45	0 1
			1 1		270	315	0 0
			1 0		180	225	1 0
135	1 1		0 0		90	225	1 0
			0 1		0	135	1 1
			1 1		270	45	0 1
			1 0		180	315	0 0
225	1 0		0 0		90	315	0 0
			0 1		0	225	1 0
			1 1		270	135	1 1
			1 0		180	45	0 1

前一载波/(°)	当前载波/(°)
前一载波/(°)	45	135	225	315
45	0	1	1	0
135	1	0	0	1
225	1	0	0	1
315	0	1	1	0

参数	数值
输入电压/V	24
输出电压/V	48
满载功率/W	50
开关频率f₀(非通信)/kHz	62.5
开关频率f₁(通信)/kHz	50
码元周期/μs	160
信号传输距离/m	2
通信速率/kbps	12.5
控制器	TI TMS320F28035
接收端采样窗口长度/μs	160
接收端采样频率/kHz	500
