Study of the Transient Voltage Distribution of the Transformer Windings Caused by VFTO

doi:10.11985/2018.10.002

Abstract

Abstract:

The very fast transient overvoltage (VFTO) generated by disconnector operation in gas insulated switchgear (GIS) can cause insulation faults of GIS equipment and electrical equipment connector to it, especially power transformer. In this paper, VFTO at representative position caused by disconnected operation in GIS is calculated and simulated with EMTP, and the characteristic amplitude values of VFTO are analyzed, the VFTO is applied to the transformer windings, and the transient voltage distribution of the transformer windings is analyzed, the potential gradient between the coils and the turns is obtained, the insulation faults of the transformer windings are found, which is in the forward end of the transformer windings.

Key words: Very fast transient overvoltage (VFTO), gas insulatecl switchgear (GIS), transient voltage distribution, EMTP, multi-condultor toransmission line (MTL) model

CLC Number:

TM41

Gao Youhua,Song Jia,Du Hanwen,Gao Youfeng,Li Yanbin. Study of the Transient Voltage Distribution of the Transformer Windings Caused by VFTO[J]. Journal of Electrical Engineering, 2018, 13(10): 6-10.

Figures/Tables 9

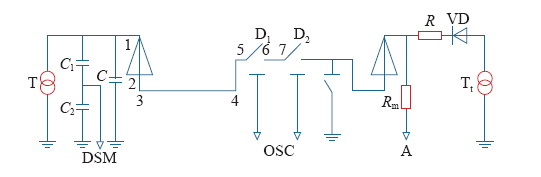

Fig.1

Tab.1

Fig.2

Fig.3

Tab.2

Fig.4

Fig.5

Fig.6

Fig.7

References 15

[1]	阮全荣, 施围 . GIS隔离开关带分合闸电阻抑制VFTO的研究[J]. 高电压技术, 2005,31(12):6-8.
	Ruan Quanrong, Shi Wei . Research on GIS isolation switch with split-close resistor to suppress VFTO[J]. High Voltage Technology, 2005,31(12):6-8.
[2]	Blahous L, Gysel T . Mathematical investigation of the transient overvoltage during disconnector switching in GIS[J]. IEEE Trans. on Power Apparatus and Systems, 1983,102(9):3088-3097.
[3]	Fujita S, Hosokawa N, Shibuya Y . Experimental investigation of high frequency voltage oscillation in transformer windings[J]. IEEE Trans. on Power Delivery, 1998,13(4):120-1207.
[4]	Boggs S, Chu F, Fujimoto N . Disconnect switch transients and trapped charge in gas-insulated substations[J]. IEEE Trans. on Power Apparatus and Systems, 1982,101(10):3593-3602.
[5]	Fujimoto N, Dick E, Boggs S . Transient ground potential rises in gas insulated substations-experimental studies[J]. IEEE Trans. on Power Apparatus and Systems, 1982,101(10):3603-3609.
[6]	Deliveryick E, Fujimoto N, Harvey G . Transient ground potential rises in gas insulated substations-problem identification and mitigation[J]. IEEE Trans. on Power Apparatus and Systems, 1982,101(10):3610-3619.
[7]	Martie L, Dommel H W . Calculation of caculation of voltage profiles along transmission lines using EMTP[J]. IEEE Trans. on Power Delivery, 1997,12(1):2325-2332.
[8]	梁贵书 . 陡波前过电压下变压器的建模及快速仿真算法研究[D]. 保定:华北电力大学, 2008.
[9]	梁贵书, 朱晓燕, 董华英 . 高频下变压器绕组的特快速暂态建模[J]. 高电压技术, 2009,35(2):393-398.
	Liang Guishu, Zhu Xiaoyan, Dong Huaying . Modeling of transformer windings with very fast transient under high frequency[J]. High Voltage Technology, 2009,35(2):393-398.
[10]	张喜乐, 梁贵书, 董华英 , 等. 变压器绕组的特快速暂态建模[J]. 电工技术学报, 2007,22(3):56-59.
	Zhang Xile, Liang Guishu, Dong Huaying , et al. Fast transient modeling of transformer windings[J]. Transactions of China Electrotechnical Society, 2007,22(3):56-59.
[11]	高有华, 王尔智, 李延斌 . GIS中快速暂态过电压及其在变压器绕组中电压分布的计算[J]. 电机与控制学报, 2005,9(2):179-182.
	Gao Youhua, Wang Erzhi, Li Yanbin . Fast transient overvoltage in GIS and calculation of voltage distribution in transformer winding[J]. Electric Machines and Control, 2005,9(2):179-182.
[12]	王赞基 . 变压器线圈中特快速暂态仿真的建模[J]. 中国电机工程学报, 1996,16(5):299-305.
	Wang Zanji . Modeling of very fast transient simulation of transformer coil[J]. Proceedings of the CSEE, 1996,16(5):299-305.
[13]	Paul C R . Analysis of multi-conductor transmission lines[M]. New York: John Wiley& Sons, 2007.
[14]	Popov M, Sluis L, Smeets R , et al. Analysis of very fast transients in layer-type transformer windings[J]. IEEE Trans. on Power Delivery, 2007,22(1):238-247. doi: 10.1109/TPWRD.2006.881605
[15]	Shibuya Y, Fujita S. High frequency model and transient response of transformer windings [C]. Asia Pacific IEEE/PES Transmission and Distribution Conference and Exhibition, 2002,3:1839-1844.

	平均值(pu)	最大值(pu)	峰值电压发生时间/μs
电源侧	1.56	1.91	3.3
负载侧	1.87	2.41	4.4

元件	模型说明	参数
变压器	入口电容	C = 5 000pF
套管	对地电容	C_B= 300pF
断路器	n个等效串联电容;端口集中电容	C_n = 30pF C₀= 250pF
封闭母线	分布参数传输线（单位长度的电感、电容）	L₀= 0.25μH C₀= 44.5pF
