虚拟直流电机荷电状态均衡控制

doi:10.11985/2024.01.018

摘要/Abstract

摘要：

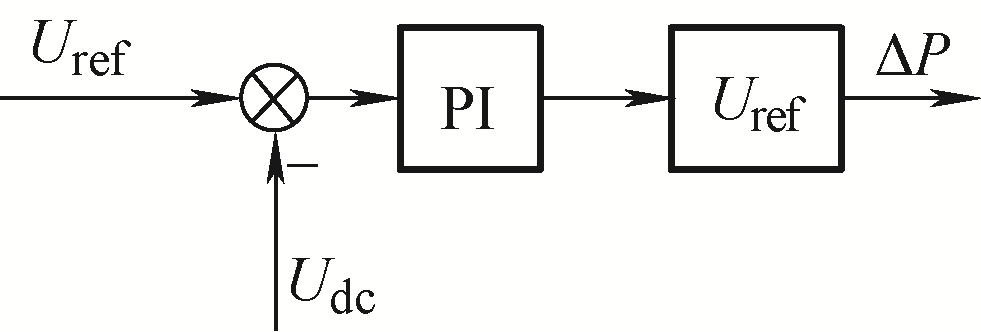

新型电力系统的惯性低，虚拟直流电机控制可以加强系统惯性和阻尼。多储能变换器应该考虑荷电状态(State of charge，SOC)均衡问题，提高系统稳定性。针对虚拟直流电机控制的多储能SOC均衡问题，利用直流电机机端电压和电枢电流的下垂特性，提出引入SOC离差及变均衡系数的变电枢电阻控制；针对下垂引起的电压偏移问题，采用虚拟直流电机转速补偿，用母线电容瞬时功率替代传统虚拟直流电机控制中电压PI控制，给定系统功率需求，减少比例积分环节个数。以两台蓄电池为例，在Simulink中进行仿真，并与参考文献的变电枢电阻函数对比可知，所提控制策略可抑制直流母线电压跌落，调节SOC均衡过程，提高其均衡速度和精度。

关键词: 虚拟直流电机控制, 多储能, 变电枢电阻, 转速补偿, SOC均衡

Abstract:

The new power system has low inertia, and virtual DC motor control can strengthen system inertia and damping. State of charge(SOC) equalization should be considered in multi-energy storage converters to improve system stability. Aiming at the multi-energy storage SOC equalization problem of virtual DC motor control, using the drooping characteristics of the DC motor terminal voltage and armature current, the variable armature resistance control with SOC dispersion and variable equalization coefficient is proposed. In view of the voltage offset problem caused by droop control, the virtual DC motor speed compensation is used. The voltage PI control in traditional virtual DC motor control is replaced by instantaneous power of the bus capacitor to give the system power requirements, which reduces the number of proportional integration links. Taking two batteries as an example, simulated in Simulink, and compared with the armature resistance function of the reference, it can be seen that the proposed control strategy can suppress the DC link voltage drop, adjust the SOC equalization process, and improve its equalization speed and accuracy.

Key words: Virtual DC motor control, multi energy storage, variable armature resistance, speed compensation, SOC balance

中图分类号:

TM33

徐敏, 赵巧娥. 虚拟直流电机荷电状态均衡控制[J]. 电气工程学报, 2024, 19(1): 169-176.

XU Min, ZHAO Qiaoe. Virtual DC Motor SOC Equalization Control[J]. Journal of Electrical Engineering, 2024, 19(1): 169-176.

图/表 16

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

表1

图11

图12

图13

图14

图15

参考文献 20

[1]	卓振宇, 张宁, 谢小荣, 等. 高比例可再生能源电力系统关键技术及发展挑战[J]. 电力系统自动化, 2021, 45(9):171-191.
	ZHUO Zhenyu, ZHANG Ning, XIE Xiaorong, et al. Key technologies and development challenges of high-proportion renewable energy power system[J]. Automation of Electric Power Systems, 2021, 45(9):171-191.
[2]	JI Kunyu, JIA Jun, ZHANG Weiguo. Study on virtual synchronous generator with energy storage unit controlled by bi-directional DC/DC converter[C]// Proceedings of 2018 IEEE 8th Annual International Conference on CYBER Technology in Automation,Control,and Intelligent Systems. IEEE,2018:1166-1170.
[3]	LIN Gang, ZUO Wei, LI Yong, et al. Comparative analysis on the stability mechanism of droop control and VID control in DC microgrid[J]. Chinese Journal of Electrical Engineering, 2021, 7(1):37-46.
[4]	ZHANG Xiangyu, LI Hao, FU Yuan. Optimized virtual DC machine control for voltage inertia and damping support in DC microgrid[C]// 2021 IEEE Applied Power Electronics Conference and Exposition(APEC). IEEE,2021:2727-2732.
[5]	SAMANTA S, MISHRA J P, ROY B K. Virtual DC machine:An inertia emulation and control technique for a bidirectional DC-DC converter in a DC microgrid[J]. IET Electric Power Applications, 2018, 12(6):874-884. doi: 10.1049/elp2.v12.6
[6]	BAGHERI S, CHESHMEHBEIGI H M. DC microgrid voltage stability through inertia enhancement using a bidirectional DC-DC converter[C]// 7th Iran Wind Energy Conference(IWEC2021). IEEE,2021: 1-5.
[7]	YI Wei, YI Dawei, HU Xiongwei, et al. Modeling and simulation of DC micro-grid based on virtual motor control[C]// 2017 IEEE Transportation Electrification Conference and Expo,Asia-Pacific(ITEC Asia-Pacific). IEEE,2017:1-6.
[8]	NEVES M S, ALVES F A L, AREDES M A, et al. A virtual DC machine control strategy with nonlinear behavior to enhance power sharing and voltage regulation in DC microgrids[C]// 2021 IEEE Fourth International Conference on DC Microgrids(ICDCM). IEEE,2021:1-8.
[9]	LIN Gang, MA Junjie, LI Yong, et al. A virtual inertia and damping control to suppress voltage oscillation in islanded DC microgrid[J]. IEEE Transactions on Energy Conversion, 2021, 36(3):1711-1721. doi: 10.1109/TEC.2020.3039364
[10]	ZHENG Yuding, TIAN Guizhen, ZHANG Jianwei. SOC balancing control strategy based on piecewise adaptive droop coefficient algorithm for multi-energy storage units in DC microgrid[C]// 2021 IEEE 4th International Conference on Electronics Technology(ICET). IEEE,2021: 432-436.
[11]	康家玉, 史晨雨, 王素娥, 等. 基于自适应下垂控制的多储能直流微网能量管理策略[J]. 现代电力, 2022, 39(2):219-227.
	KANG Jiayu, SHI Chenyu, WANG Sue, et al. Energy management strategy of multi-energy storage DC microgrid based on adaptive droop control[J]. Modern Electric Power, 2022, 39(2):219-227.
[12]	朱江. 光储直流微电网的协调控制策略研究[D]. 哈尔滨: 哈尔滨工业大学, 2020.
	ZHU Jiang. Research on coordinated control strategy of photovoltaic storage DC microgrid[D]. Harbin:Harbin Institute of Technology, 2020.
[13]	李鹏程, 张纯江, 袁然然, 等. 改进SOC下垂控制的分布式储能系统负荷电流分配方法[J]. 中国电机工程学报, 2017, 37(13):3746-3754.
	LI Pengcheng, ZHANG Chunjiang, YUAN Ranran, et al. Load current distribution method for distributed energy storage system with improved SOC droop control[J]. Proceedings of the CSEE, 2017, 37(13):3746-3754.
[14]	张凯涛, 张辉, 支娜, 等. 模拟直流发电机的光伏变换器控制稳定性分析[J]. 电力电子技术, 2019, 53(1):115-116.
	ZHANG Kaitao, ZHANG Hui, ZHI Na, et al. Control and stability analysis of photovoltaic converter for simulating DC generator[J]. Power Electronics, 2019, 53(1):115-116.
[15]	王勉, 唐芬, 赵宇明, 等. 虚拟直流电机并联协调控制方法[J]. 电网技术, 2020, 44(10):3875-3885.
	WANG Mian, TANG Fen, ZHAO Yuming, et al. Parallel coordinated control method of virtual DC machines[J]. Power System Technology, 2020, 44(10):3875-3885.
[16]	张辉, 张凯涛, 肖曦, 等. 模拟直流发电机特性的储能变换器控制策略[J]. 电力系统自动化, 2017, 41(20):126-132.
	ZHANG Hui, ZHANG Kaitao, XIAO Xi, et al. Control strategy of energy storage converter for analog DC generator characteristics[J]. Automation of Electric Power Systems, 2017, 41(20):126-132.
[17]	户艳琴, 周仁友, 黄天翔, 等. 基于改进下垂控制的并网级联型储能系统SOC均衡策略[J]. 电力系统保护与控制, 2021, 49(22):120-129.
	HU Yanqin, ZHOU Renyou, HUANG Tianxiang, et al. SOC balancing strategy of a grid-connected cascaded-type energy storage system based on advanced droop control[J]. Power System Protection and Control, 2021, 49(22):120-129.
[18]	支娜, 丁可, 张辉, 等. 虚拟直流发电机励磁补偿控制策略[J]. 电气传动, 2021, 51(7):40-45.
	ZHI Na, DING Ke, ZHANG Hui, et al. Excitation compensation control strategy for virtual DC generator[J]. Electric Drive, 2021, 51(7):40-45.
[19]	谭树成. 直流微电网蓄电池功率均衡及母线电压稳定控制研究[D]. 西安: 西安理工大学, 2017.
	TAN Shucheng. Research on power sharing of battery energy storage and bus voltage stability control in DC microgrid[D]. Xi’an: Xi’an University of Technology, 2017.
[20]	ZHI Na, DING Ke, DU Liang, et al. An SOC-based virtual DC machine control for distributed storage systems in DC microgrids[J]. IEEE Transactions on Energy Conversion, 2020, 35(3):1411-1420. doi: 10.1109/TEC.60

参数	数值
母线电压参考值U_ref/V	400
蓄电池端电压U_bat/V	100
额定转速ω_n/(rad/s)	314
蓄电池1初始SOC	0.6
蓄电池2初始SOC	0.5
惯性系数J/(kg·m²)	8
阻尼系数D	2
转矩系数C_T	18.4
每极磁通Φ/Wb	0.069 8
