基于高频方波信号注入的永磁同步电机初始位置检测方法研究*

doi:10.11985/2021.04.010

电气工程学报 ›› 2021, Vol. 16 ›› Issue (4): 78-84.doi: 10.11985/2021.04.010

• 特邀专栏：高性能永磁电机驱动与控制 • 上一篇下一篇

扫码分享

基于高频方波信号注入的永磁同步电机初始位置检测方法研究^*

呼子茗¹^,²(), 朱景伟¹(), 王高林²(), 杨旭²()

1.大连海事大学船舶电气工程学院大连 116026
2.哈尔滨工业大学电气工程及自动化学院哈尔滨 150001

收稿日期:2021-07-01 修回日期:2021-10-18 出版日期:2021-12-25 发布日期:2022-02-10
通讯作者: 朱景伟 E-mail:13165561871@163.com;zjwdl@dlmu.edu.cn;WGL818@hit.edu.cn;1415552112@qq.com
作者简介:* 朱景伟,男,1963年生,博士,教授,博士研究生导师。主要研究方向为交流电机优化设计及其控制技术。E-mail： zjwdl@dlmu.edu.cn
呼子茗,男,1999年生。主要研究方向为永磁电机控制技术。E-mail： 13165561871@163.com
王高林,男,1978年生,博士,教授,博士研究生导师。主要研究方向为交流电机驱动技术、交流电机无传感器控制技术、无电解电容器电机驱动系统、宽禁带功率器件在电机系统的应用、电机参数辨识与状态监测技术、同步磁阻电机驱动控制技术、永磁直驱式电梯控制技术、电机高效再制造能效提升技术。E-mail： WGL818@hit.edu.cn
杨旭,男,1994年生,硕士。主要研究方向为永磁同步电机无传感器控制技术。E-mail： 1415552112@qq.com
基金资助:
* 国家自然科学基金资助项目(51777024)

Research on Initial Position Detection Method of Permanent Magnet Synchronous Motor Based on High Frequency Square Wave Signal Injection

HU Ziming¹^,²(), ZHU Jingwei¹(), WANG Gaolin²(), YANG Xu²()

1. School of Marine Electrical Engineering, Dalian Maritime University, Dalian 116026
2. School of Electrical Engineering & Automation, Harbin Institute of Technology, Harbin 150001

Received:2021-07-01 Revised:2021-10-18 Online:2021-12-25 Published:2022-02-10
Contact: ZHU Jingwei E-mail:13165561871@163.com;zjwdl@dlmu.edu.cn;WGL818@hit.edu.cn;1415552112@qq.com

摘要/Abstract

摘要：

针对表贴式永磁同步电机,使用高频方波信号注入法,对其初始位置检测技术展开研究。对高频方波信号注入法和磁极辨别技术进行理论分析和公式推导,得到转子初始位置的表达式。利用Matlab/Simulink软件搭建永磁同步电机矢量控制系统和初始位置检测系统,仿真结果表明该方法可以准确获得转子初始位置信息,误差为0.05 rad。最后编写初始位置检测和磁极极性辨别的程序,在电机平台上进行硬件试验,试验结果表明该方法可以准确地获取转子的初始位置信息,误差为0.018 rad。

关键词: 永磁同步电机, 无位置传感器控制, 高频注入法, 初始位置检测

Abstract:

The initial position detection technology of surface mounted permanent magnet synchronous motor (SPMSM) is studied by using high frequency square wave signal injection method. Firstly, the high frequency square wave signal injection method and the magnetic pole discrimination technique are theoretically analyzed and the formula is deduced to obtain the expression of the initial position of the rotor. Then, the vector control system and the initial position detection system of permanent magnet synchronous motor (PMSM) are built by Matlab/Simulink. The simulation results show that the method can accurately obtain the initial position information of the rotor with an error of 0.05 rad. Finally, the program of initial position detection and pole polarity identification is written, and the hardware experiment is carried out on the motor platform. The experimental results show that the method can accurately obtain the initial position information of the rotor, and the error is 0.018 rad.

Key words: PMSM, sensorless control, high frequency injection method, initial position detection

中图分类号:

TM341

呼子茗, 朱景伟, 王高林, 杨旭. 基于高频方波信号注入的永磁同步电机初始位置检测方法研究^*[J]. 电气工程学报, 2021, 16(4): 78-84.

HU Ziming, ZHU Jingwei, WANG Gaolin, YANG Xu. Research on Initial Position Detection Method of Permanent Magnet Synchronous Motor Based on High Frequency Square Wave Signal Injection[J]. Journal of Electrical Engineering, 2021, 16(4): 78-84.

图/表 15

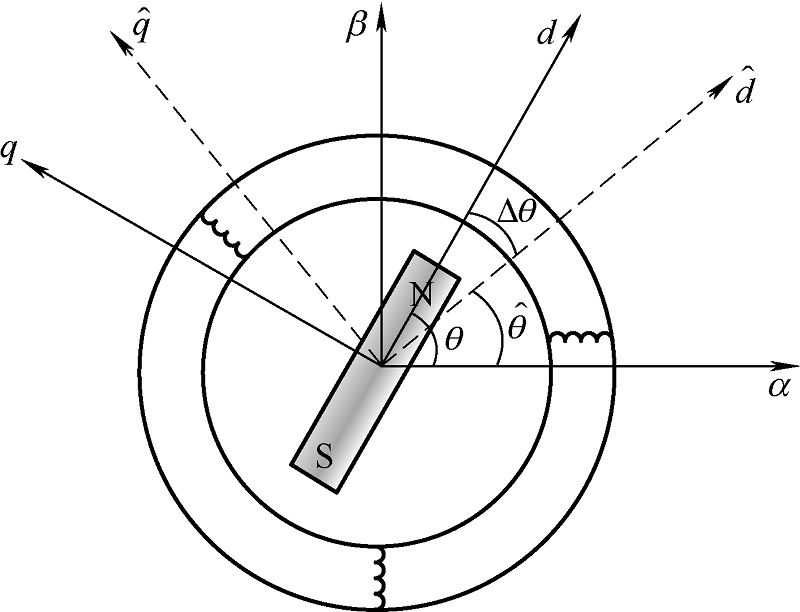

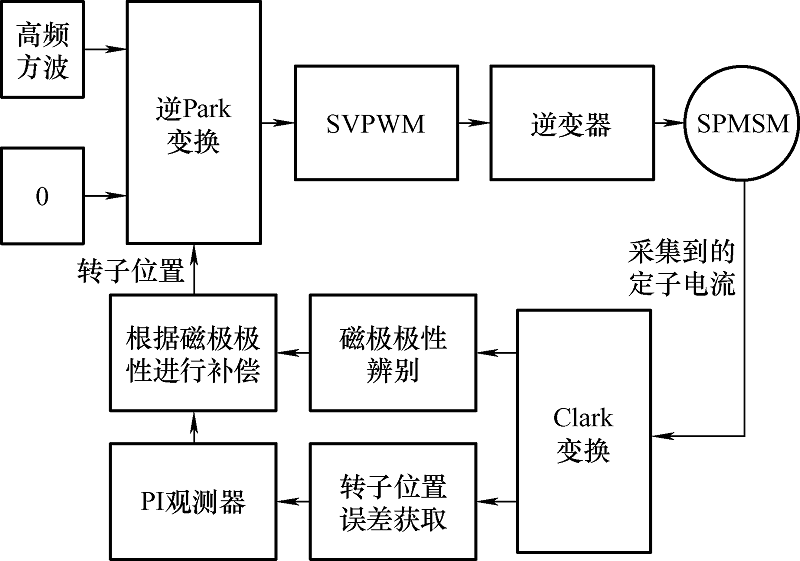

图1

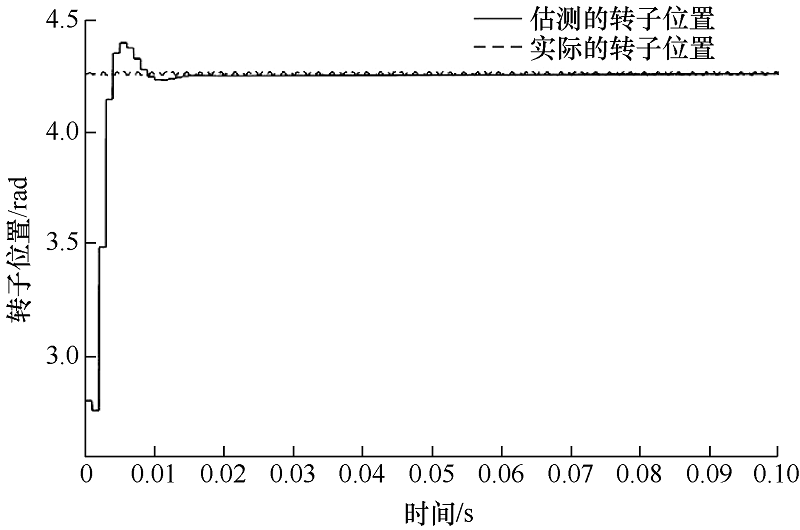

图2

表1

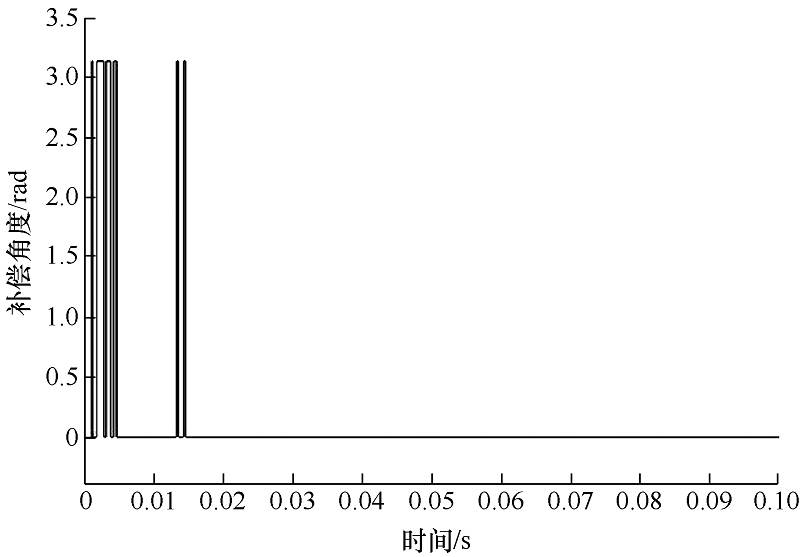

图3

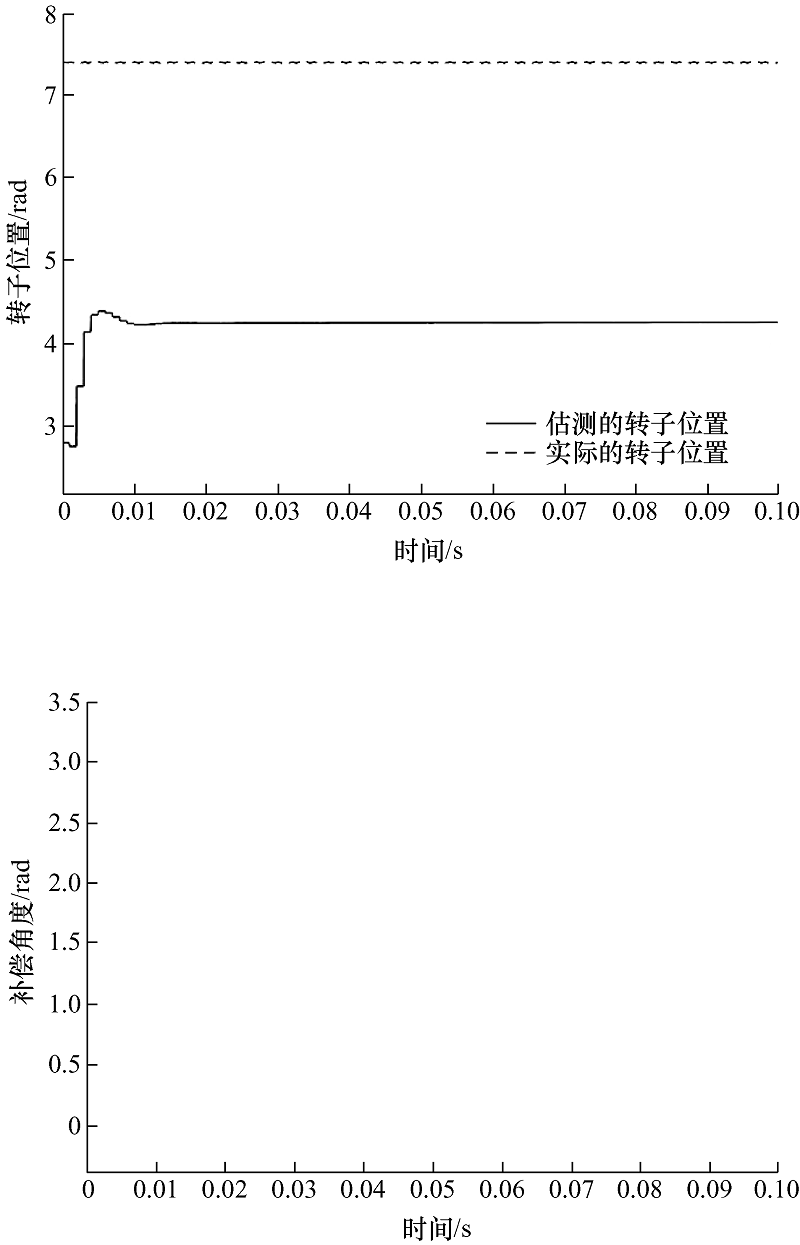

图4

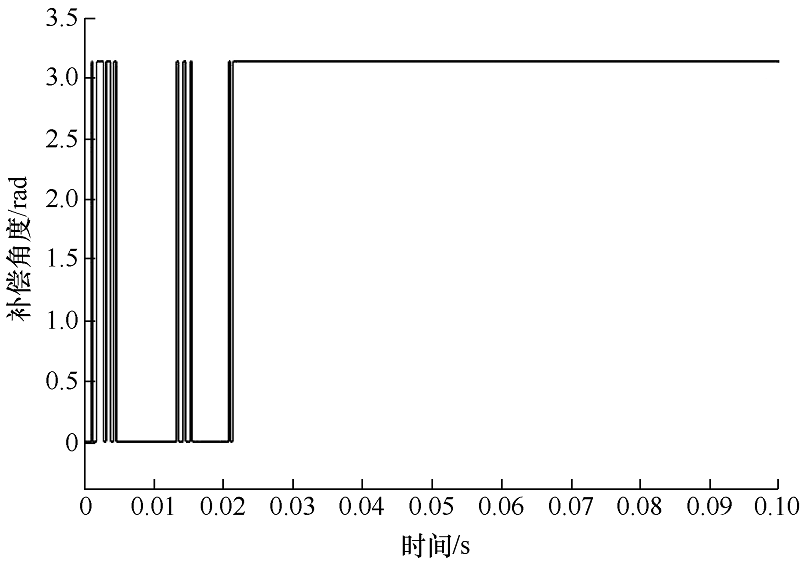

图5

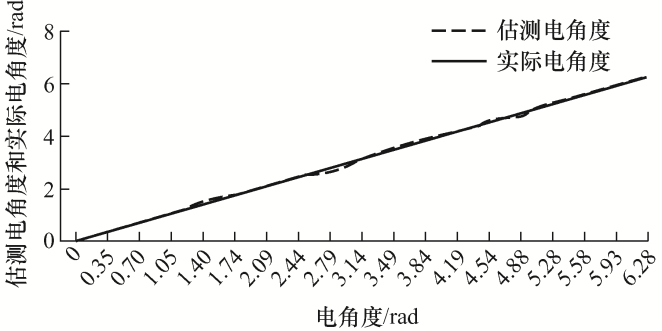

图6

图7

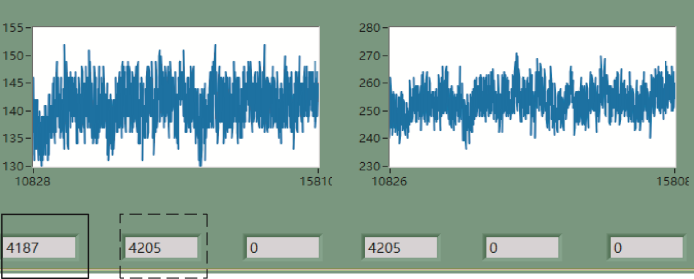

图8

表2

图9

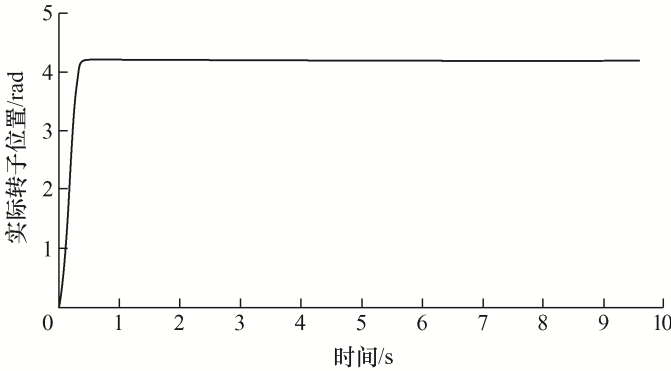

图10

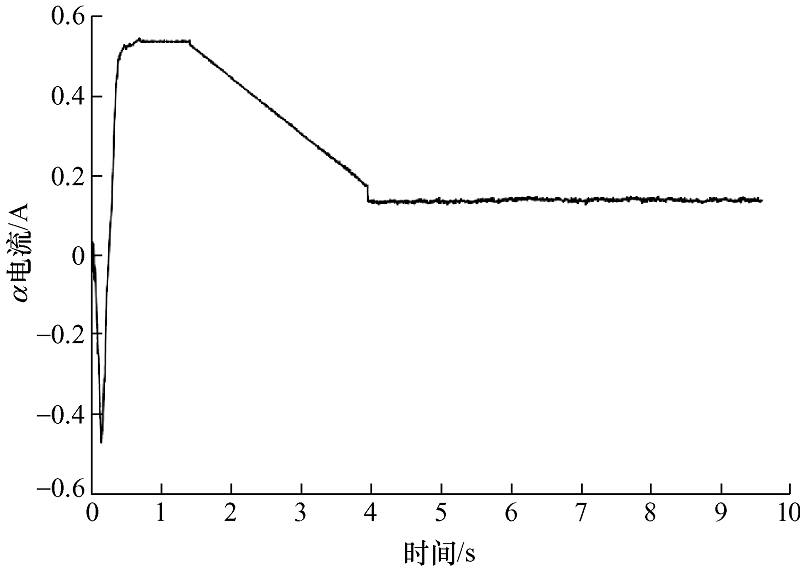

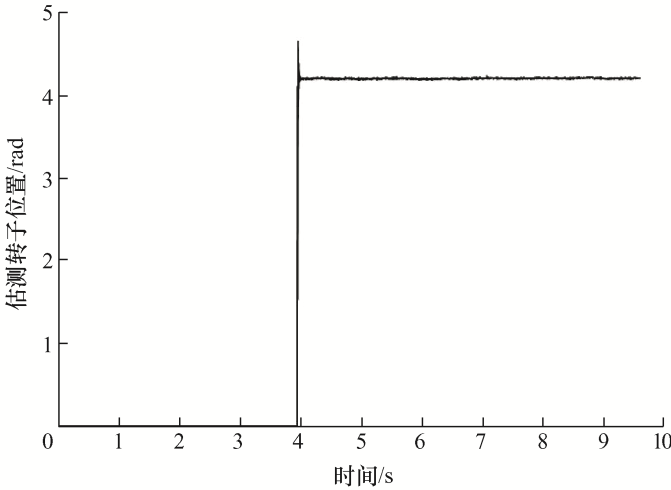

图11

图12

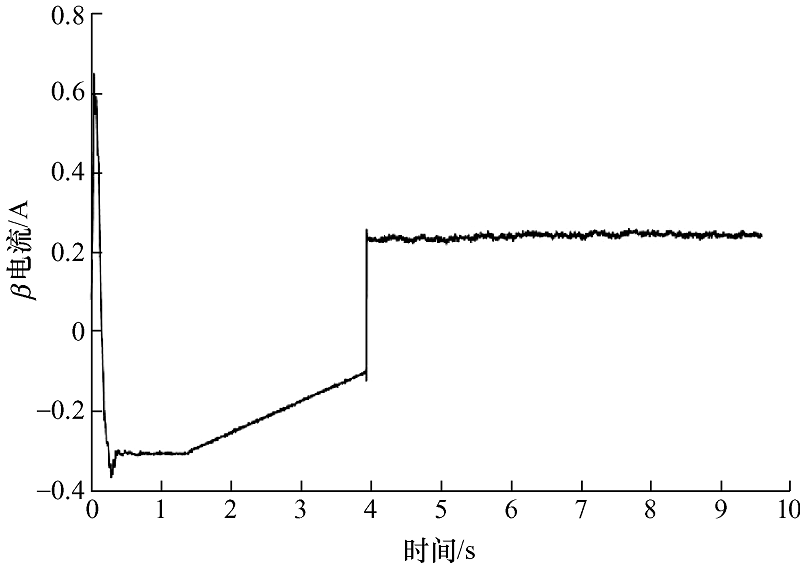

图13

参考文献 20

[1]	SUL S K, KIM S. Sensorless control of IPMSM:Past,present,and future[J]. IEEE Transactions on Industry Applications, 2012, 2(1):15-23.
[2]	ZHANG X, HOU B, MEI Y. Deadbeat predictive current control of permanent-magnet synchronous motors with stator current and disturbance observer[J]. IEEE Transactions on Power Electronics, 2017, 32(5):3818-3834. doi: 10.1109/TPEL.2016.2592534
[3]	YANG S C, LORENZ R D. Surface permanent-magnet machine self-sensing at zero and low speeds using improved observer for position,velocity,and disturbance torque estimation[J]. IEEE Transactions on Industry Applications, 2012, 48(1):151-160. doi: 10.1109/TIA.2011.2175472
[4]	GUO Q, ZHANG C, LI L, et al. Efficiency optimization control of permanent magnet synchronous motor system with SiC MOSFETs for electric vehicles[C]// 2017 20th International Conference on Electrical Machines and Systems (ICEMS), 2017:1-5.
[5]	RAHMAN M F, NIKNEJAD P, BARZEGARAN M R. Comparing the performance of Si IGBT and SiC MOSFET switches in modular multilevel converters for medium voltage PMSM speed control[C]// 2018 IEEE Texas Power and Energy Conference (TPEC), 2018:1-6.
[6]	MARCIC T, STUMBERGER B, STUMBERGER G . Differential evolution based parameter identification of a line start IPM synchronous motor[J]. IEEE Transactions on Industrial Electronics, 2014, 61(11):5921-5929. doi: 10.1109/TIE.41
[7]	DING D, WANG G, ZHAO N, et al. An anti-overvoltage control scheme for electrolytic capacitorless IPMSM drives based on stator current vector orientation[J]. IEEE Transactions on Industrial Electronics, 2020, 67(5):3517-3527. doi: 10.1109/TIE.41
[8]	WANG G, YANG L, YUAN B, et al. Pseudo-random high-frequency square-wave voltage injection based sensorless control of IPMSM drives for audible noise reduction[J]. IEEE Transactions on Industrial Electronics, 2016, 63(12):7423-7433. doi: 10.1109/TIE.2016.2594171
[9]	CHEN F, JIANG X, DING X, et al. FPGA-based sensorless PMSM speed control using adaptive sliding mode observer[C]// IEEE Industrial Electronics Society IECON, 2017:4150-4154.
[10]	洪琨, 刘刚, 毛琨, 等. 基于新型高频注入法的表贴式永磁同步电机转子初始位置检测方法[J]. 电工技术学报, 2018, 33(13):2914-2922.
	HONG Kun, LIU Gang, MAO Kun, et al. Rotor initial position detection method of surface mounted permanent magnet synchronous motor based on new high frequency injection method[J]. Transactions of China Electrotechnical Society, 2018, 33(13):2914-2922.
[11]	WANG G, KUANG J, ZHAO N, et al. Rotor position estimation of PMSM in low-speed region and standstill using zero-voltage vector injection[J]. IEEE Transactions on Power Electronics, 2018, 33(9):7948-7958. doi: 10.1109/TPEL.63
[12]	WANG Hechao, LU Kaiyuan, WANG Dong, et al. Simple and effective online position error compensation method for sensorless SPMSM drives[J]. IEEE Transactions on Industry Applications, 2020, 56(2):1475-1484. doi: 10.1109/TIA.28
[13]	JANG J H, SUL S K, HA J I, et al. Sensorless drive of surface-mounted permanent-magnet motor by high- frequency signal injection based on magnetic saliency[J]. IEEE Transactions on Industry Applications, 2003, 39(4):1031-1039. doi: 10.1109/TIA.2003.813734
[14]	JANG J H, HA J I, OHTO M, et al. Analysis of permanent-magnet machine for sensorless control based on high-frequency signal injection[J]. IEEE Transactions on Industry Applications, 2004, 40(6):1595-1604. doi: 10.1109/TIA.2004.836222
[15]	BI Guangdong, WANG Gaolin, ZHANG Guoqiang, et al. Low-noise initial position detection method for sensorless permanent magnet synchronous motor drives[J]. IEEE Transactions on Power Electronics, 2020, 35(12):13333-13344. doi: 10.1109/TPEL.63
[16]	WANG Hechao, LU Kaiyuan, WANG Dong, et al. Simple and effective position estimation error compensation method for sensorless SPMSM drives[J]. IEEE Transactions on Industry Applications, 2020, 56(2):1475-1484. doi: 10.1109/TIA.28
[17]	田兵, 安群涛, 孙东阳, 等. 基于磁饱和效应的表贴式永磁同步电机初始位置检测方法[J]. 电工技术学报, 2016, 31(1):155-164.
	TIAN Bing, AN Quntao, SUN Dongyang, et al. Initial position detection method of surface mounted permanent magnet synchronous motor based on magnetic saturation effect[J]. Transactions of China Electrotechnical Society, 2016, 31(1):155-164.
[18]	XU P, ZHU Z. Novel square-wave signal injection method using zero-sequence voltage for sensorless control of PMSM drives[J]. IEEE Transactions on Industrial Electronics, 2016, 63(12):7444-7454. doi: 10.1109/TIE.41
[19]	MEDJMADJ S, DIALLO D, MOSTEFAI M, et al. PMSM drive position estimation:Contribution to the high-frequency injection voltage selection issue[J]. IEEE Transactions on Energy Conversion, 2015, 30(1):349-358. doi: 10.1109/TEC.2014.2354075
[20]	WANG G, YANG L, ZHANG G, et al. Comparative investigation of pseudo-random high frequency signal injection schemes for sensorless IPMSM drives[J]. IEEE Transactions on Power Electronics, 2017, 32(3):2123-2132. doi: 10.1109/TPEL.2016.2569418

参数	数值
额定电压/V	36
额定电流/A	7.5
额定功率/W	200
额定转速/(r/min)	5 000
额定转矩/(N·m)	0.637
转动惯量/(${\rm{kg}}{{\rm{m}}^2}{10^{ - 4}}$)	0.189
极对数	4
线电阻/Ω	0.33
线电感/mH	0.9

参数	数值
电流环P	300
电流环I	30
速度环P	40
速度环I	8
位置环P	800
位置环I	10
